Asus rog rampage v extreme [52/230] Jumper
![Asus rog rampage v extreme [52/230] Jumper](/views2/1161002/page52/bg34.png)
1-34
Chapter 1: Product introduction
Chapter 1
1.2.8 Jumper

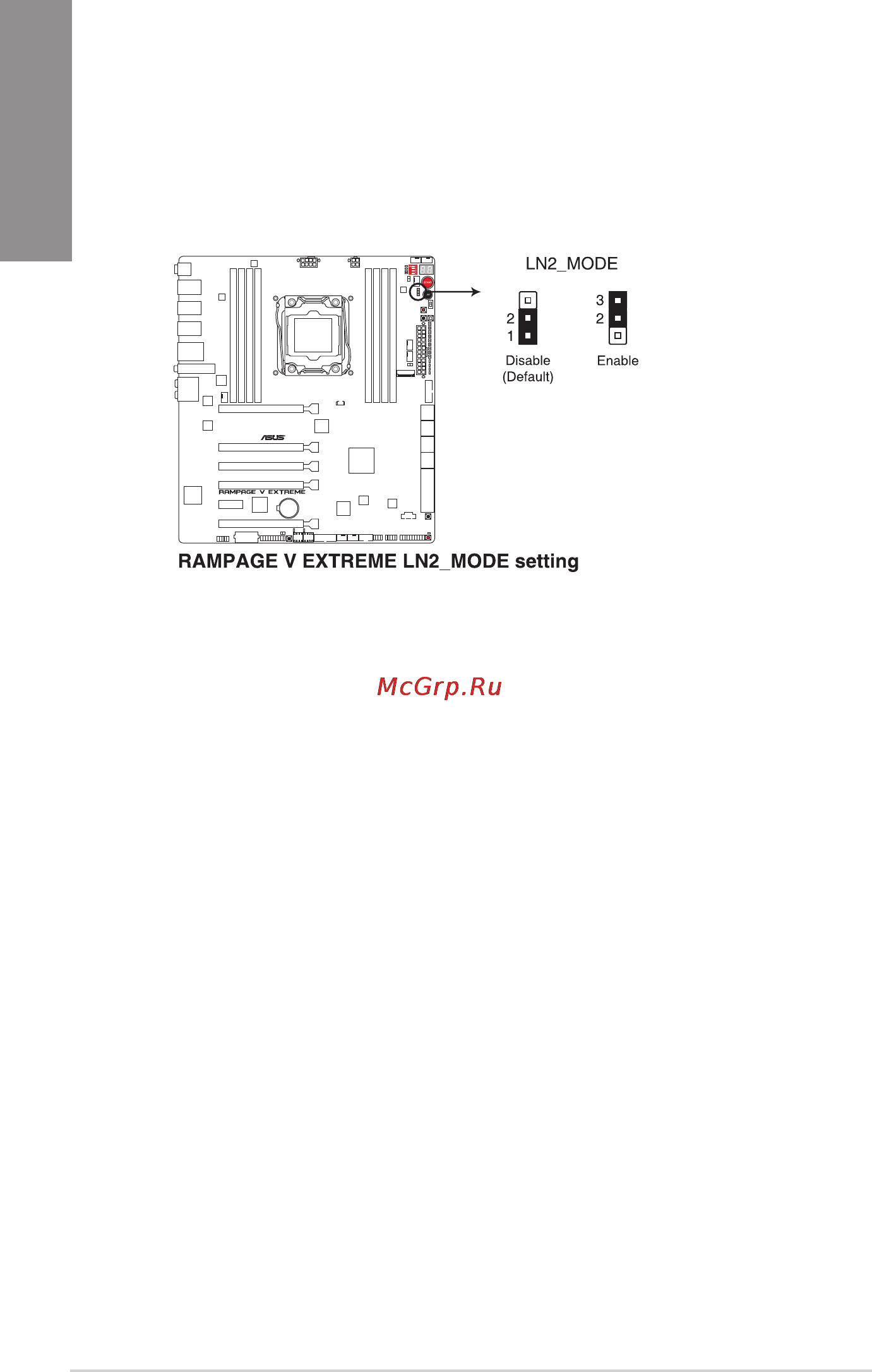

1. LN2 Mode jumper (3-pin LN2_MODE)
With LN2 mode activated, the ROG motherboard is optimized to remedy the cold-boot
bug during POST and help the system boot successfully.
__E9550_R5E_UG.indb 34 8/7/2014 2:11:16 PM
