1-38
Chapter 1: Product introduction
Chapter 1
You can connect the front panel USB cable to the ASUS Q-Connector (USB) rst, and then
install the Q-Connector (USB) to the USB connector onboard if your chassis supports front
panel USB ports.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!

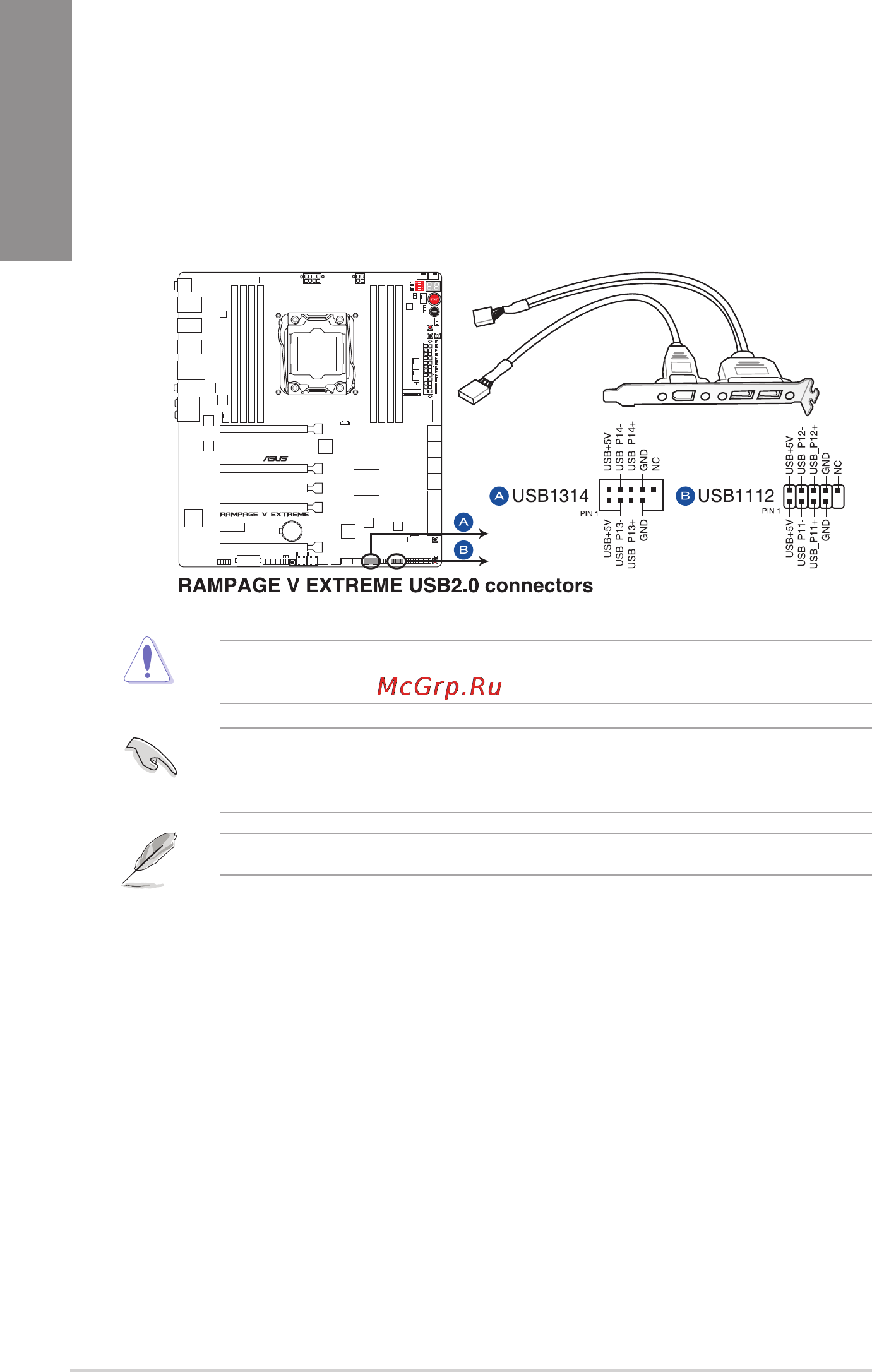

6. USB 2.0 connectors (10-1 pin USB1112; USB1314)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that support up to
480 Mbps connection speed.
The USB 2.0 module is purchased separately.
