ASUS RAMPAGE V EXTREME

1-35

Chapter 1

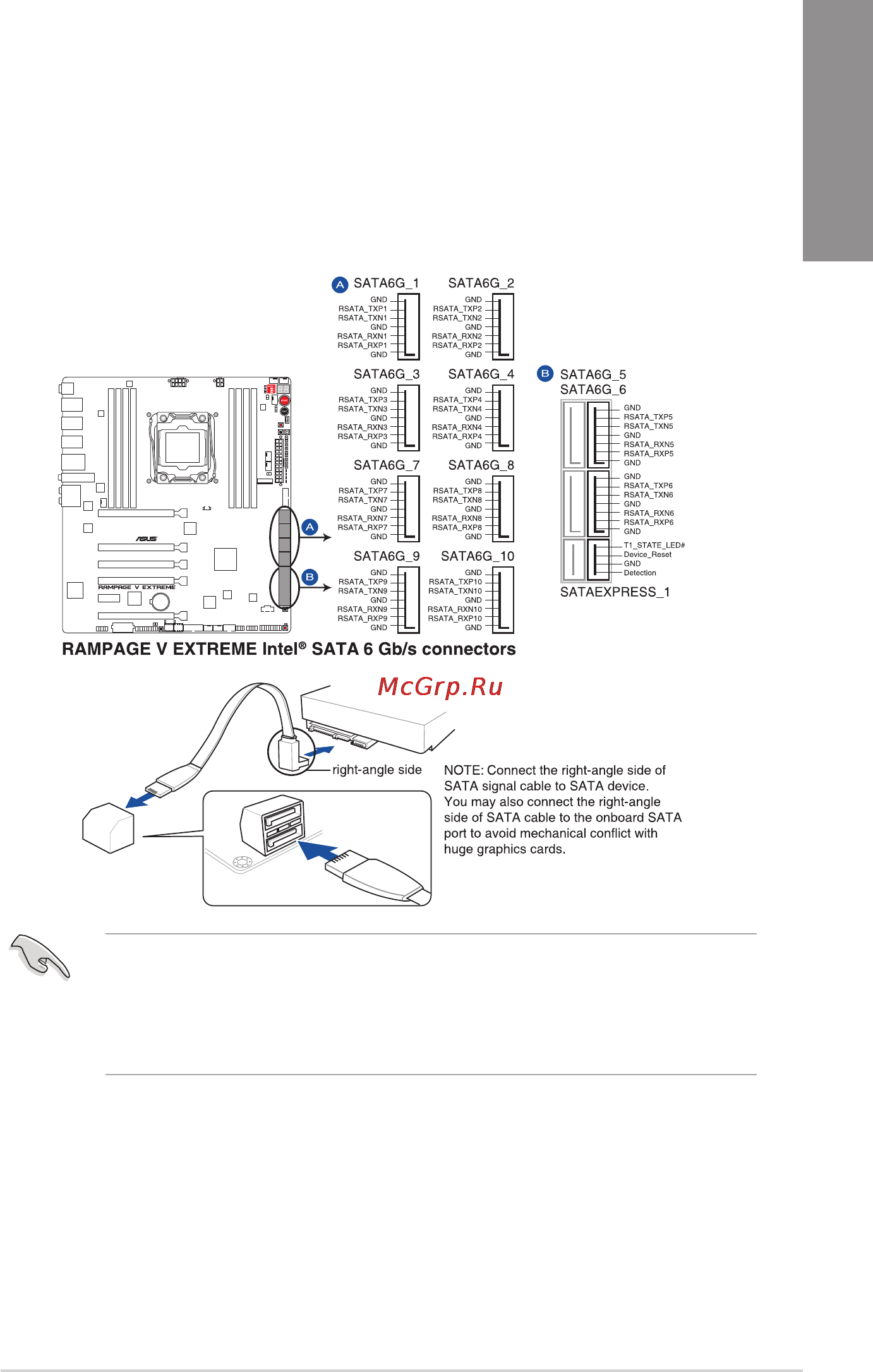

1.2.9 Internal connectors

1. Intel

X99 Serial ATA 6 Gb/s connectors (7-pin SATA6G_1-10; SATAEXPRESS_1)

These connectors connect to Serial ATA 6 Gb/s hard disk drives via Serial ATA 6 Gb/s

signal cables.

If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10

conguration with the Intel

Rapid Storage Technology through the onboard Intel

X99

chipset.

• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial

ATA RAID array using these connectors, set the SATA Mode item in the BIOS to

[RAID Mode]. Refer to the PCH Storage Configuration section for details.

• Before creating a RAID array, refer to the RAID configurations section or the manual

bundled in the motherboard support DVD.
