Asus rog rampage v extreme [26/230] Motherboard layout
![Asus rog rampage v extreme [26/230] Motherboard layout](/views2/1161002/page26/bg1a.png)
1-8
Chapter 1: Product introduction
Chapter 1
Refer to the Internal connectors and the Rear I/O Connection section on Chapter 2 for
more information about the internal connectors and rear panel connectors.

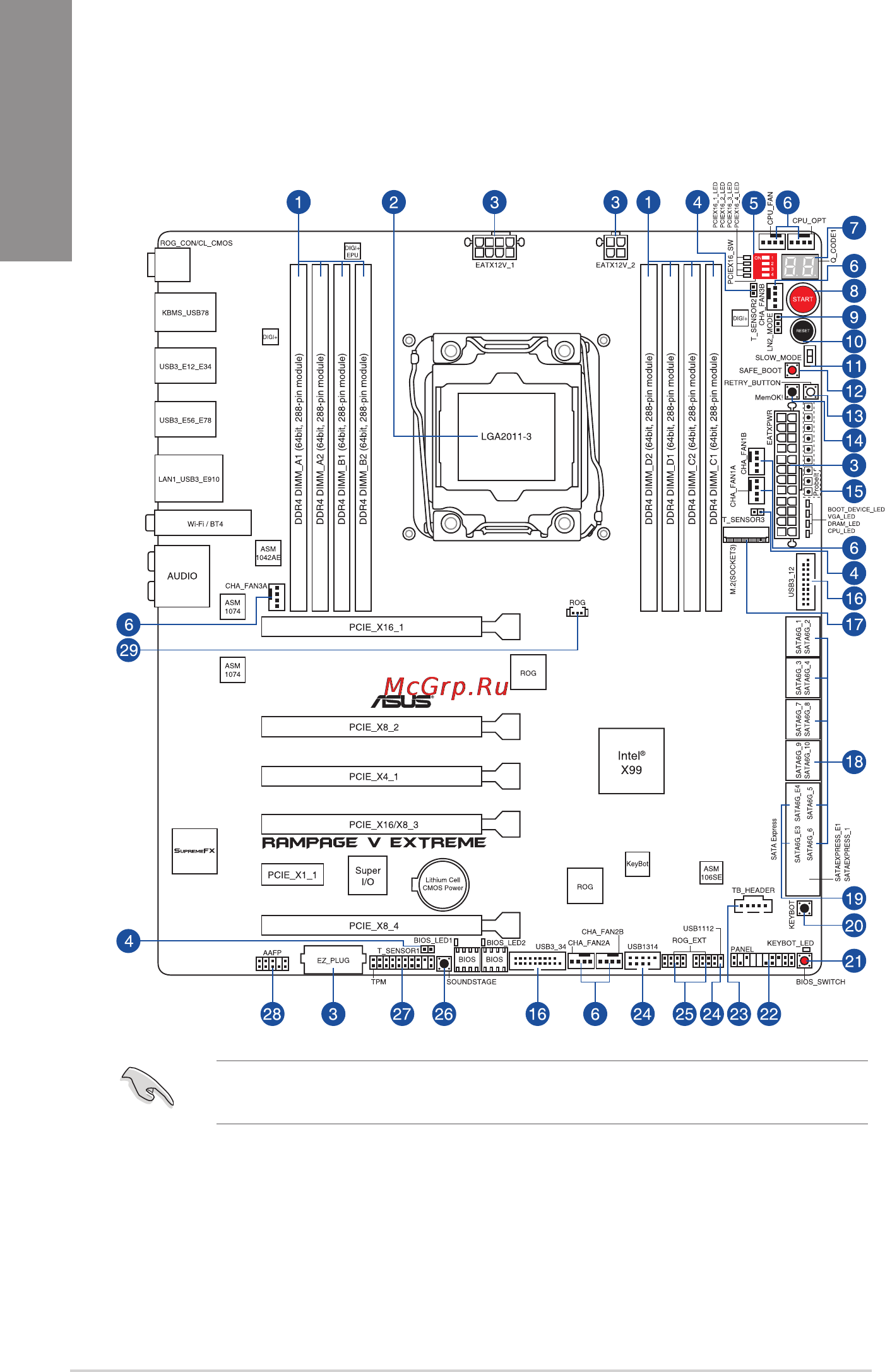

1.2.2 Motherboard layout
__E9550_R5E_UG.indb 8 8/7/2014 2:11:13 PM
