ASUS RAMPAGE V EXTREME
2-21
Chapter 2
2.4.2 Setting up your OC Panel in Normal Mode
EnsurethatyouhaveinstalledROGConnectPlusdriverfortheNORMALModeoftheOC
Panel.
TheOCPanelinNormalModemainlyprovideseasyaccessbuttonsforincreasingyour
CPU’sfrequencylevel,adjustingfanspeeds,andcustomizingoverclockingproles.Italso
displays vital information about your computer’s CPU temperature, ratio, base clock, and
CPUfanspeed(RPM).
TosetupyourOCPanelinNormalMode:

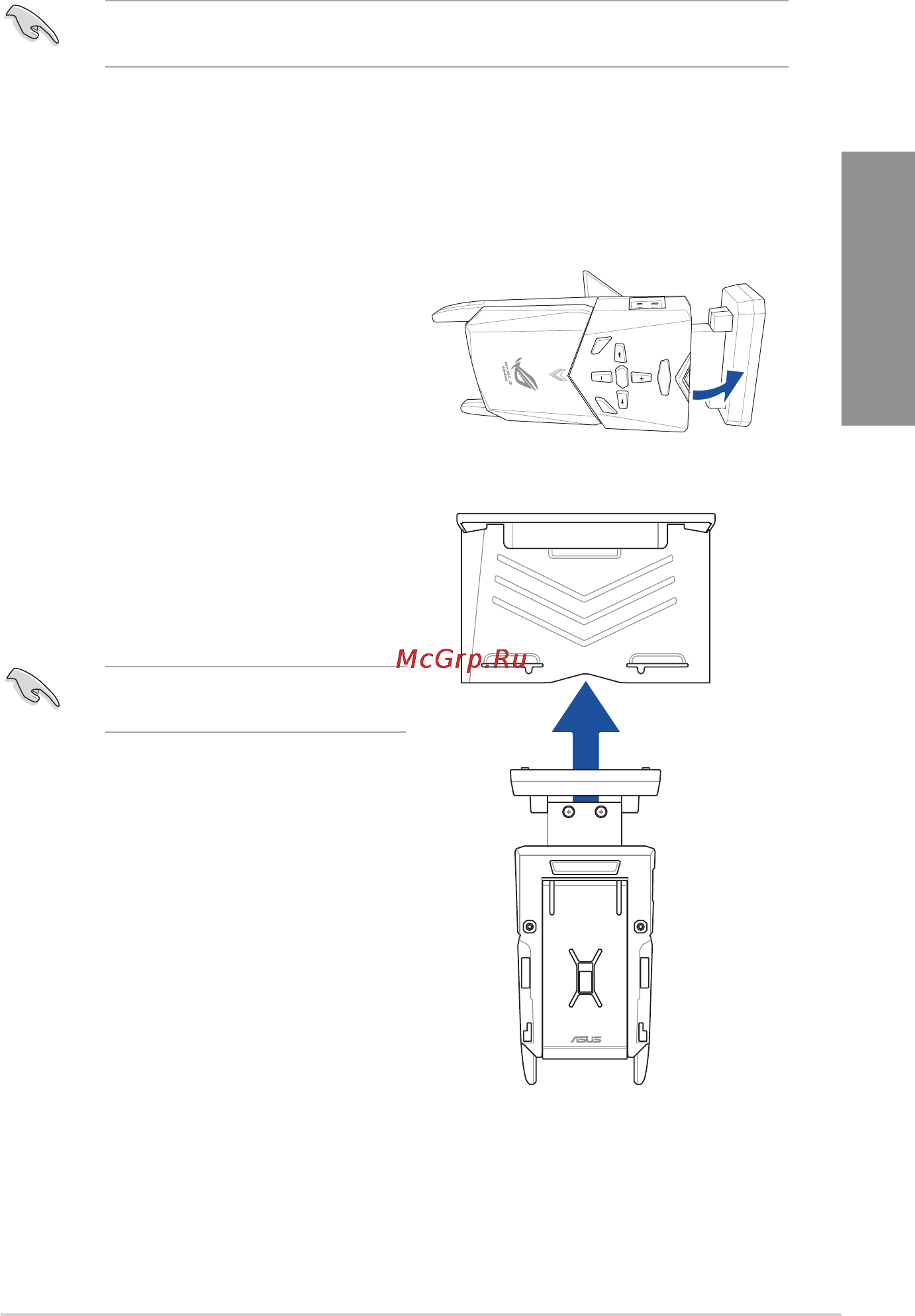

1. TilttheOCPanelLCMdisplayuntilitis
perpendicular to the body of OC Panel.
2. Prepare the bundled OC Panel 5.25-inch
drive bay metal case and set of two (2)
screws.
3. Align and insert the OC Panel into the OC
Panel 5.25-inch drive bay metal case.
The OC Panel tsinoneorientation
only.Ifitdoesnott,tryreversingit.
Reset
t
r
a
t
S
Clear
Reset
OK
__E9550_R5E_UG.indb 21 8/7/2014 2:11:24 PM
