ASUS RAMPAGE V EXTREME
3-9
Chapter 3

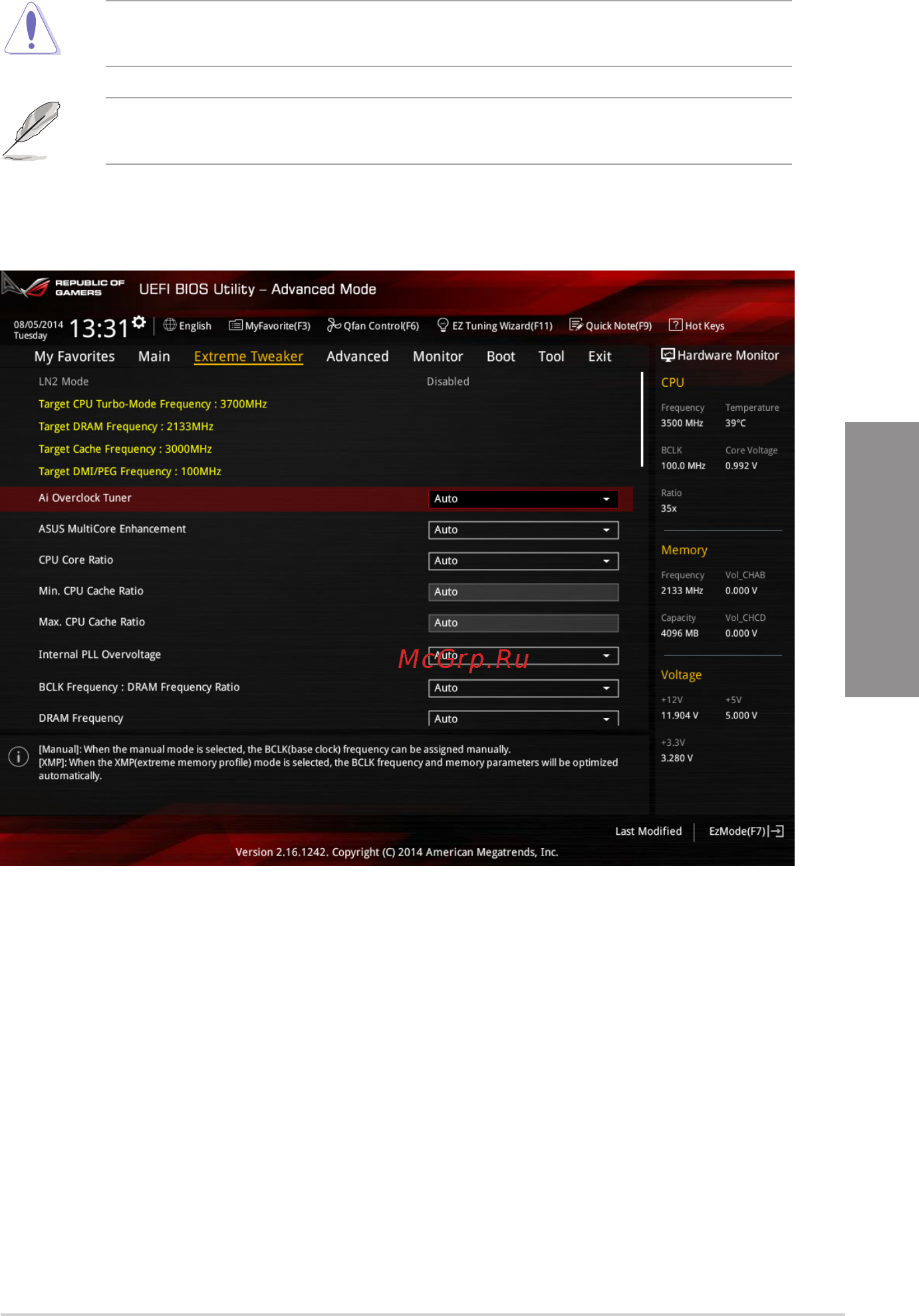

3.5 Extreme Tweaker menu
The Extreme Tweaker menu items allow you to congure overclocking-related items.
Be cautious when changing the settings of the Extreme Tweaker menu items. Incorrect
eld values can cause the system to malfunction.
The conguration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.
Scroll down to display other BIOS items.
__E9550_R5E_UG.indb 9 8/7/2014 2:11:26 PM
