4-58
Chapter 4: Software support
Chapter 4
4.12 MemTweakIt
MemTweakItallowsyoutoviewalllevelsofmemorytimings.Youcanvalidateyour
MemTweakItsettingstogenerateamemoryefciencyscorethatyoucanshareandcompare
withotherusersontheROGwebsite.
MemTweakItfunctionsdependsonthechipsetonthemotherboard.Eachchipsethas
differerntoptions.

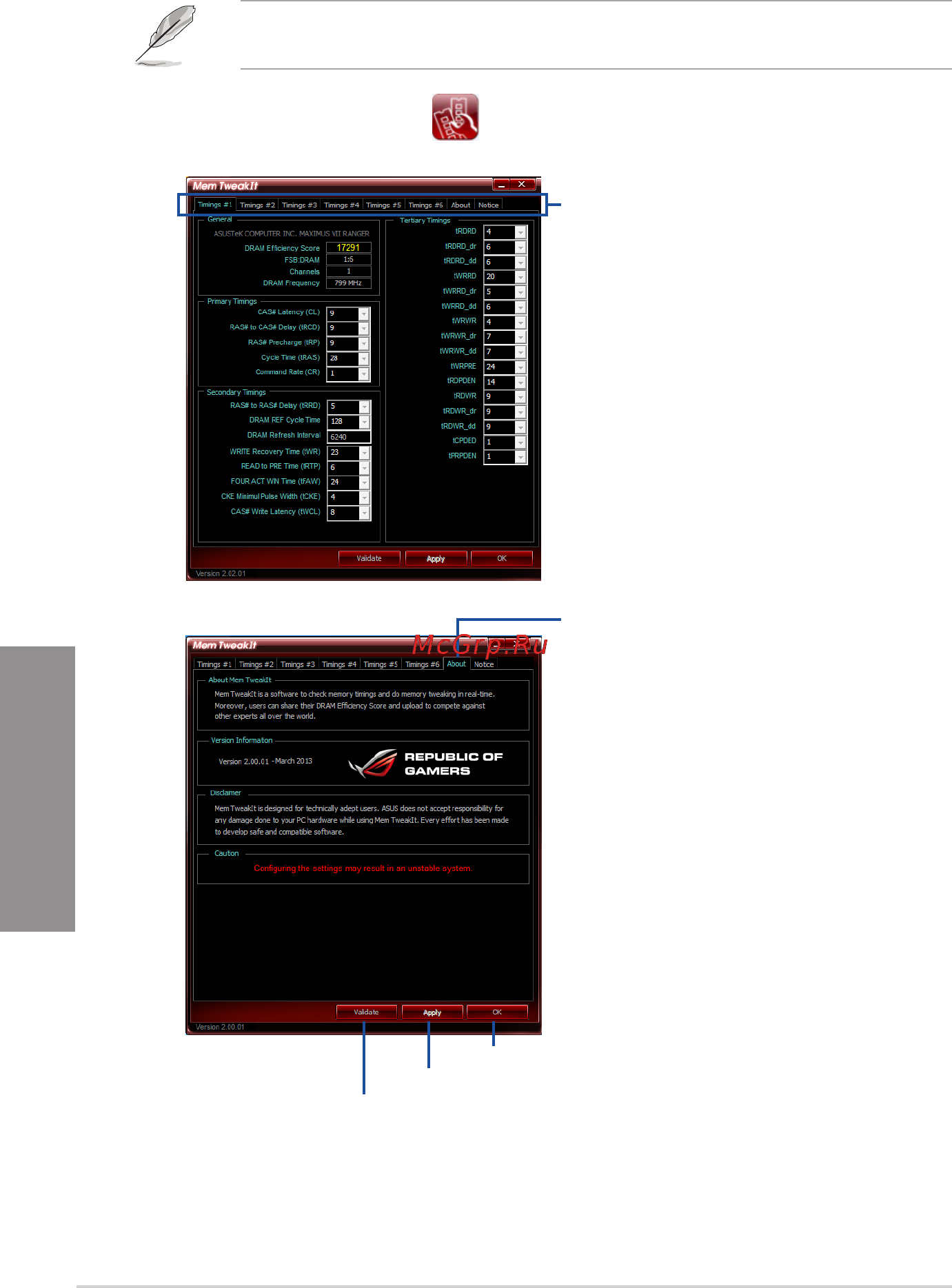

TouseMemTweakIt,double-click onthedesktop.
Click or tap the About tab then click REPUBLIC OF GAMERS to
access the official ROG website
Click or tap a tab to configure the memory timing
Click or tap to exit MemTweakIt
Click or tap to validate your settings.
Click or tap to apply your settings
