101D-Link DCS-5220 User Manual
Section 3 - Configuration
This button will take a snapshot of the selected video channel and then save the picture as a bitmap le to
the hard disk. You can set the directory for storing these bitmap les at the Conguration menu > Global
Settings screen. Please refer to the section titled “Global Settings” for more details (see page 80).
Click on the printer icon to print the current image to your default printer.
You can drag and drop the video channel to the Trashcan to close the video connection with the
DCS-5220.
Status Bar

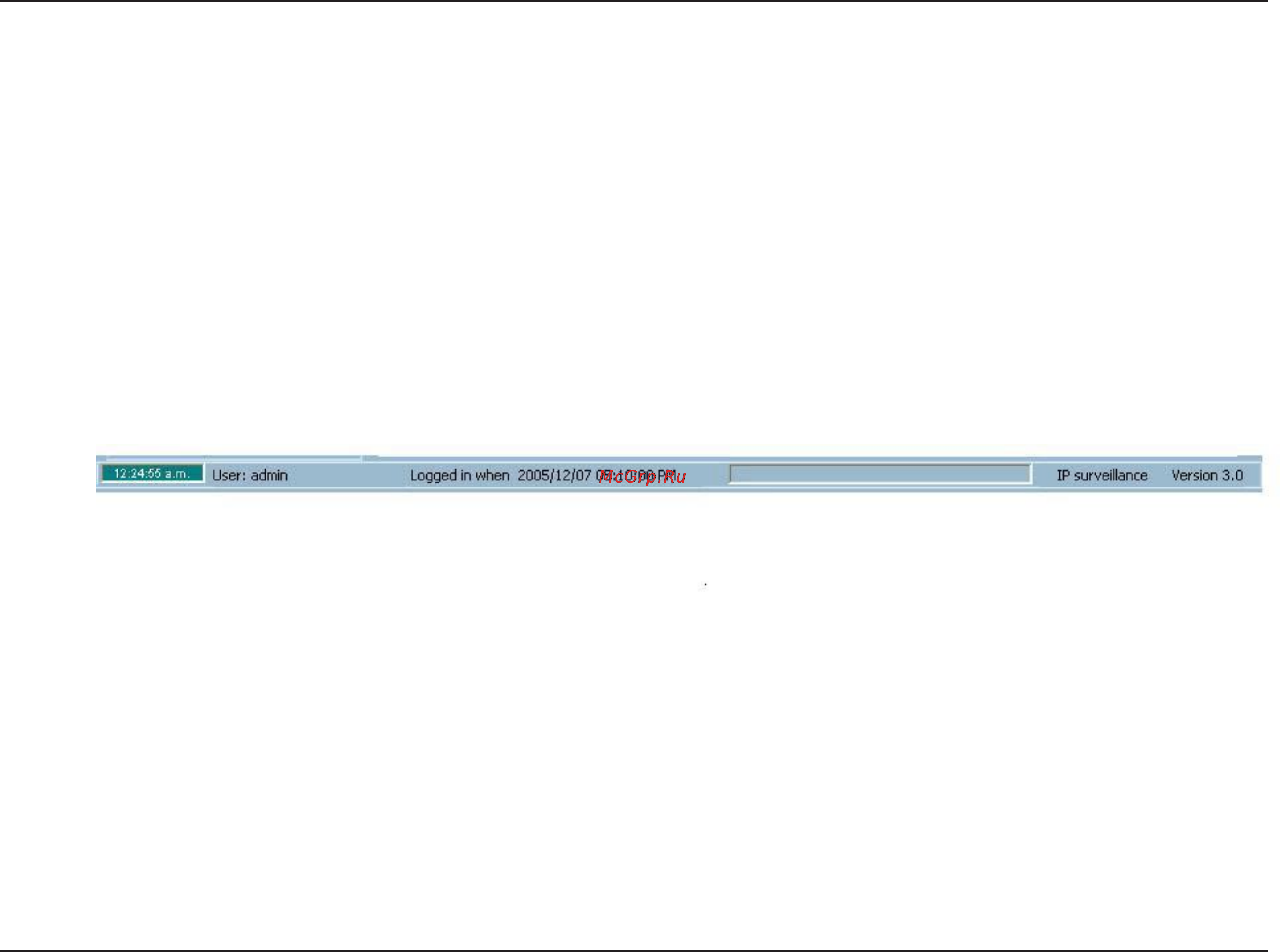

The status bar, shown below, displays information about the IP surveillance program such as: Local Time, Current
Login User, Login Time, Software Name, and Software Version.
Scheduling
Snapshot:
Printer:
Trashcan:
