40D-Link DCS-5220 User Manual
Section 3 - Configuration
Select this option to switch to computer
viewing.
Select this option to switch to mobile device
viewing. The frame size will change to
176x144, 5 FPS and Video Quality: 40kps
Select the option for color or monochrome
video display.
Three options exist for the sizes of the
video display. You can select between
160x120, 176x144, 320x240, or 640x480.
The maximum frame rate will be 30fps for
all resolutions.
This option allows the user to choose the
frequency of the power line that is used in
different region (Power Line Frequency in
US: 60Hz).
Limits the maximum refresh frame rate. The
frame rate is used with the Video quality
control setting (below) to optimize bandwidth
utilization and video quality.
Determines how many repeated P frames
will appear after one I frame. Large “Key frame interval” can reduce the bit rate, but cause image to be corrupted
longer if there is packet loss while transmitting. The video quality may be poor due to the sending of maximum
frame rate within the limited bandwidth when images are moving rapidly. Consequently, to ensure detailed video
quality (quantization rate) regardless of the network, it will utilize more bandwidth to send the maximal frames
when images change drastically.To x the bandwidth utilization regardless of the video quality, choose Fix bit
rate and select the desired bandwidth. The video quality may be reduced in order to send maximum frames
with limited bandwidth, especially when images change drastically. For higher video detail regardless of the

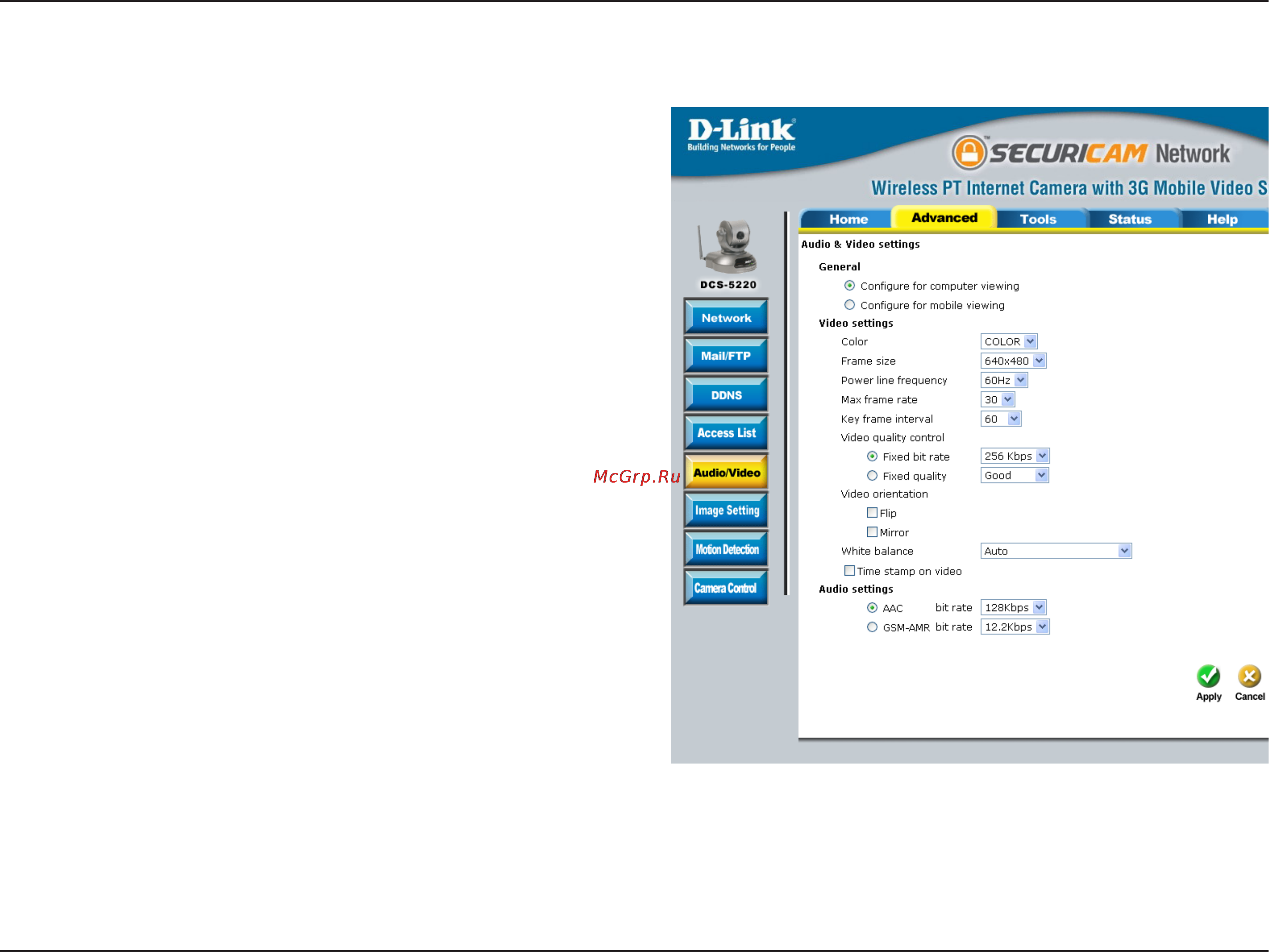

Click the Audio/Video button from the Conguration screen to access audio and video settings that affect how the audio
and video appears.
Audio/Video
Configure for computer
viewing:
Configure for mobile
viewing:
Color:
Frame size:
Power line frequency:
Maximum Frame Rate:
Key frame interval:
