107D-Link DCS-5220 User Manual
Section 3 - Configuration

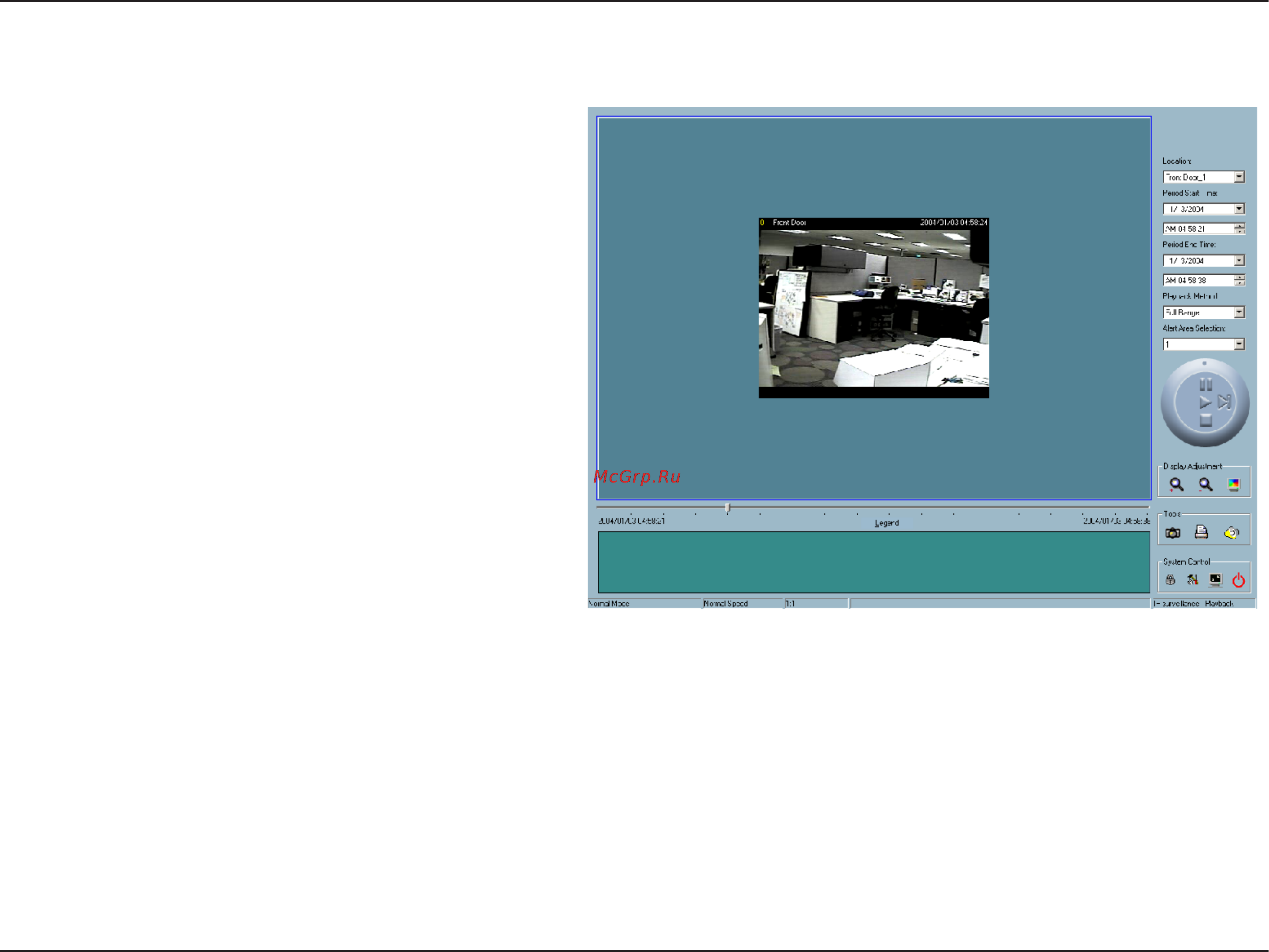

Under the normal display (single frame) mode, you can use all the tools provided with the playback program, except
the page control. In this mode, the two labels under the pull bar show the starting and the ending time of the interval
individually (as shown below).
