29D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

Open your Internet Explorer Web browser and enter the IP address for your Internet Camera (http://192.168.0.120).

In the example, this address is 192.168.0.120. Your address may differ.

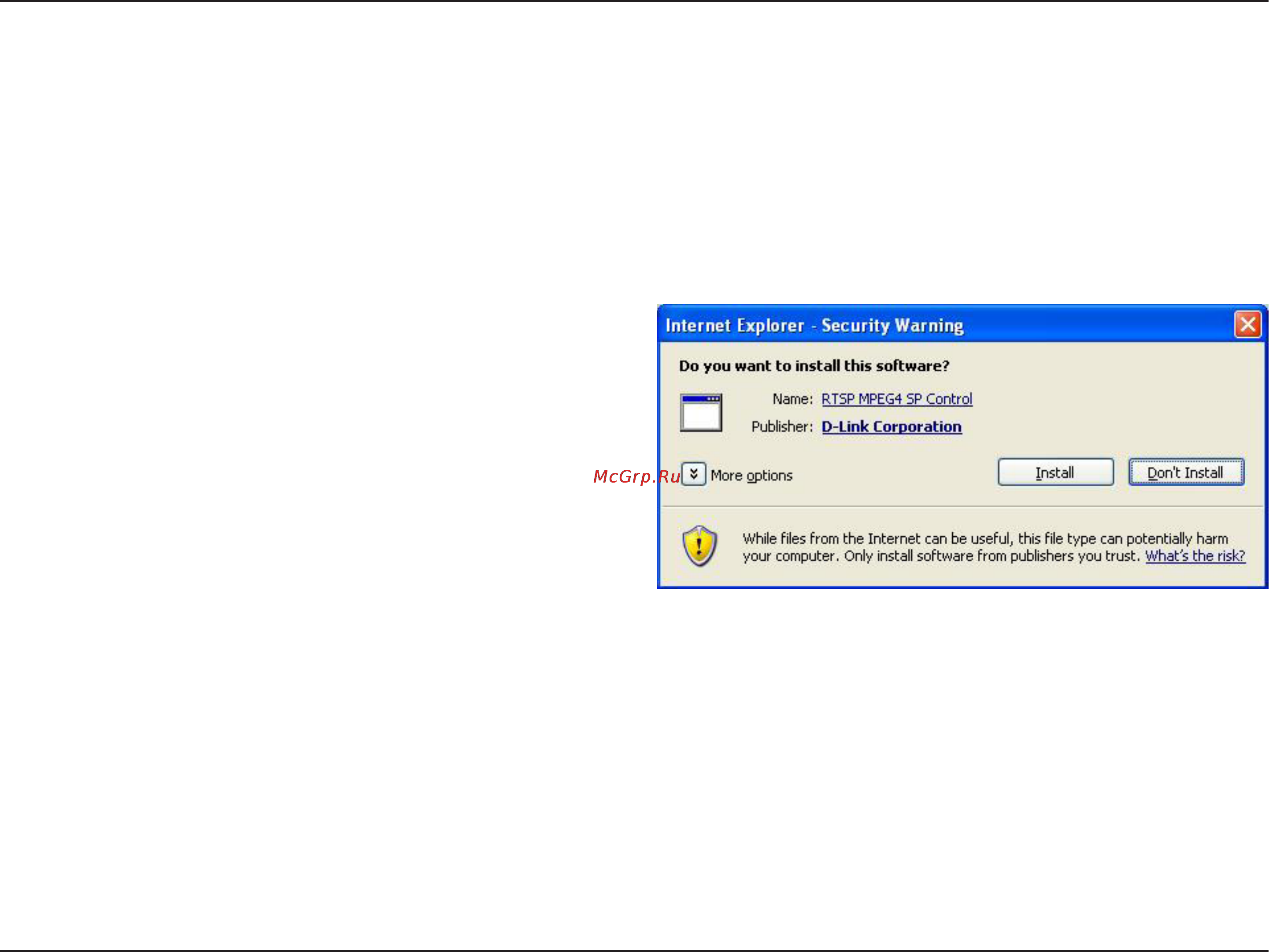

If a window appears asking to install a Verisign certicate for authentication Click Yes. This allows the proprietary

MPEG4 video stream to be recognized by Internet Explorer.

Using the DCS-5220 with an Internet Browser
