83D-Link DCS-5220 User Manual
Section 3 - Configuration
Display Options

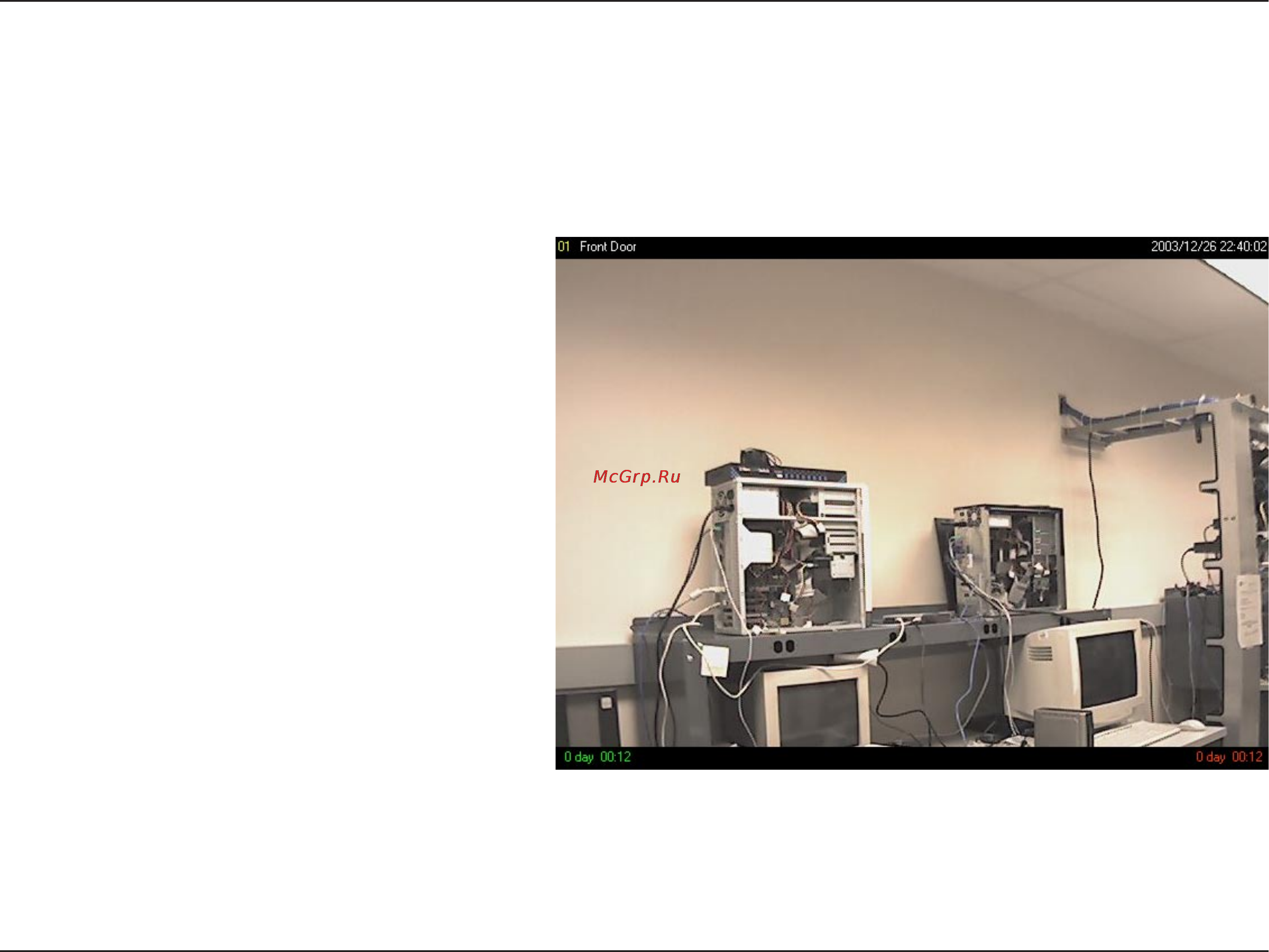

In the video displaying frame of each channel, there are two status bars. The upper bar contains “Location” (channel
number + camera name) and “Remote Time.” The lower bar contains “Connection Time” (Day:Hour:Min) and “Recording
time” (Day: Hour:Min). All of them, shown in the gure below, can be enabled or disabled here individually for the
status indication. Apply to full screen mode can also be turned on here. Once it has been checked, the status bar in
each channel showing date, location, connection, and recording time will be shown in both display frame mode and
full screen mode.
