39D-Link DCS-5220 User Manual
Section 3 - Configuration
The starting IP Address of the
devices (such as a computer) that
has the permission to access the
video of the camera.
The ending IP Address of the
devices (such as a computer) that
has the permission to access the
video of the camera.
Remove the customized setting
from the Allow List.
The starting IP Address of the
devices (such as a computer) that
does not have the permission to
access the video of the camera.
The ending IP Address of the devices (such as a computer) that does not have the permission to access
the video of the camera.
Remove the customized setting from Deny List.

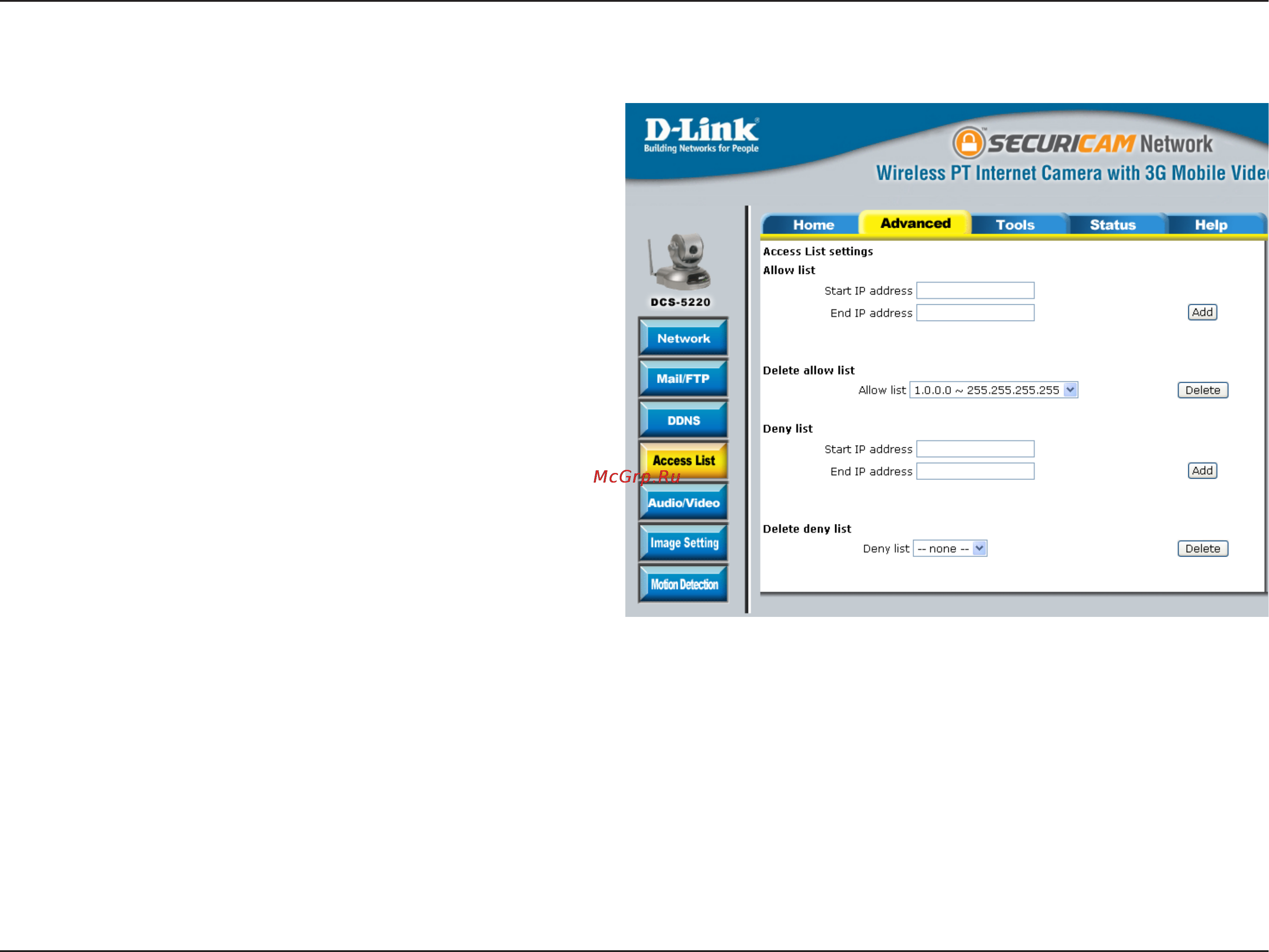

Click the Access List button from the Conguration screen to access Access List settings.
Access List
Allow List Start IP Address:
Allow List End IP Address:
Delete Allow List:
Deny List Start IP Address:
Deny List End IP Address:
Delete Deny List:
