D-Link DCS-5220 [19/153] Wireless network settings

19D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

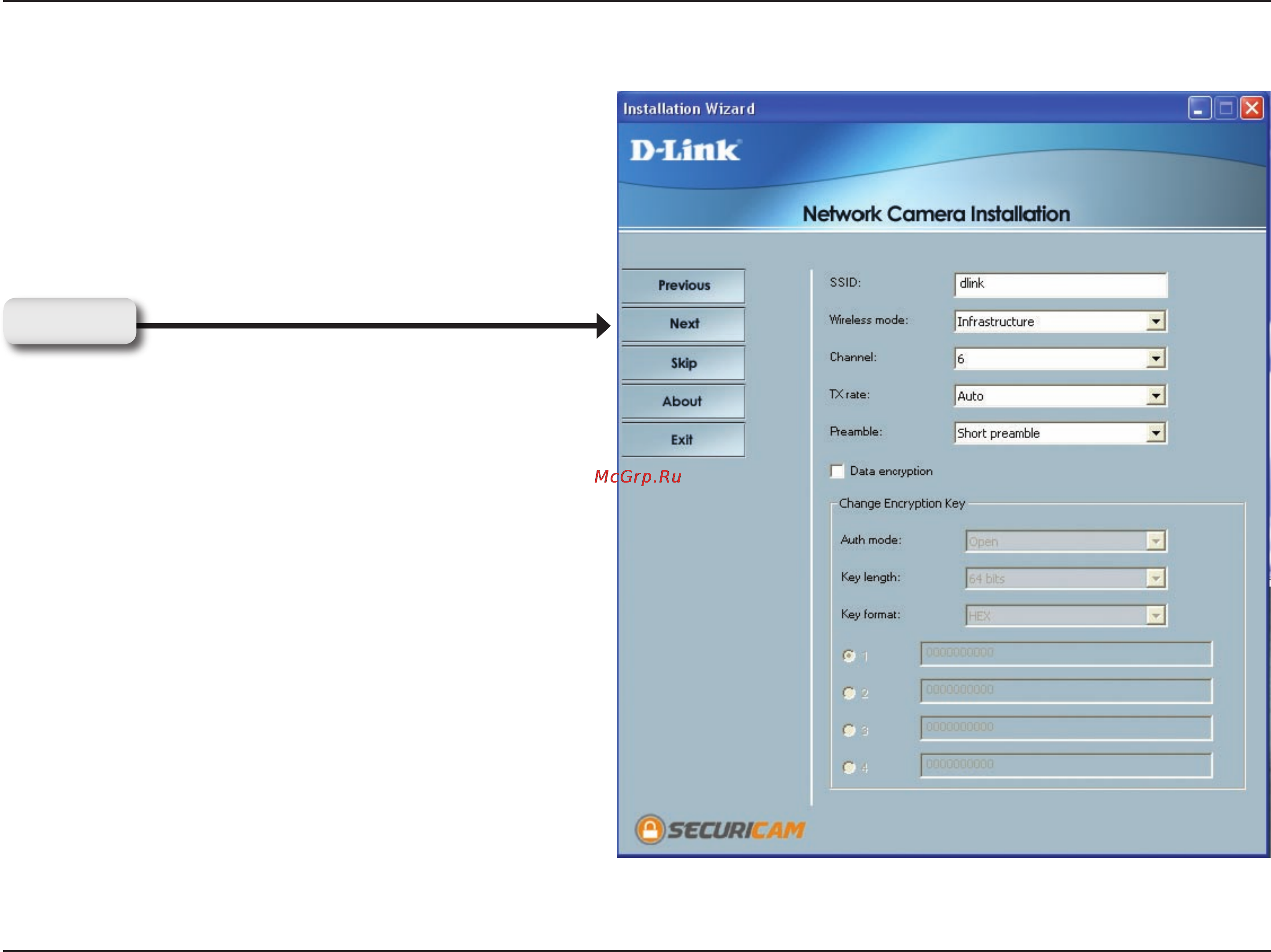

Users can congure the Wireless Network Settings for

the camera, by entering the SSID and selecting the

Wireless Mode, Channel, TX Rate, and Preamble.

Note: Check the Data Encryption box to enable data

encryption and congure the settings. These settings are

explained and can also be conﬁgured on the Advanced >

Network screen (page 32) when conﬁguring the camera

via a Web Browser.

Click Next

Wireless Network Settings
