52D-Link DCS-5220 User Manual
Section 3 - Configuration

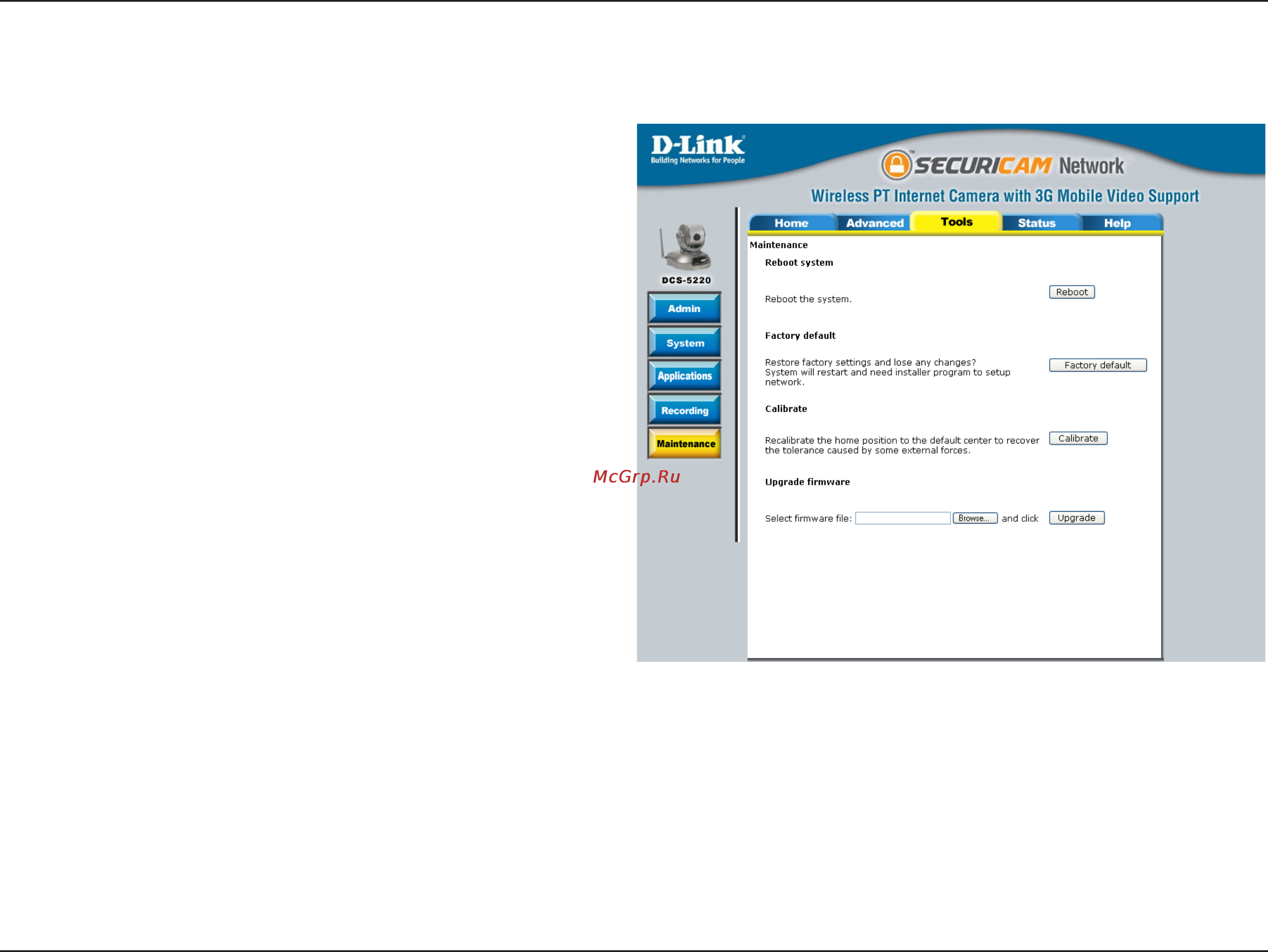

Click on the Maintenance button to access the option to restore to factory default settings.
Click Apply on this screen to restore factory default settings. After conrmation, the system will restart and require the
Installation Wizard program to locate the IP address of the DCS-5220.
Maintenance
This option will restart the camera.
This option will reset the camera back to
factory default settings. This will remove
all the conguration settings that were
made previously.
This option restores the camera’s factory
lens position.This means that the camera
will be recalibrated to the default center
position to recover from any external
forces that may have affected it.
This option allows the user to upgrade
the rmware via the Browser. Click on
“Browse” to locate the rmware le and
then click on “Upgrade” to apply the
rmware to the camera.
Reboot system:
Factory default:
Calibrate:
Update firmware:
