50D-Link DCS-5220 User Manual
Section 3 - Configuration

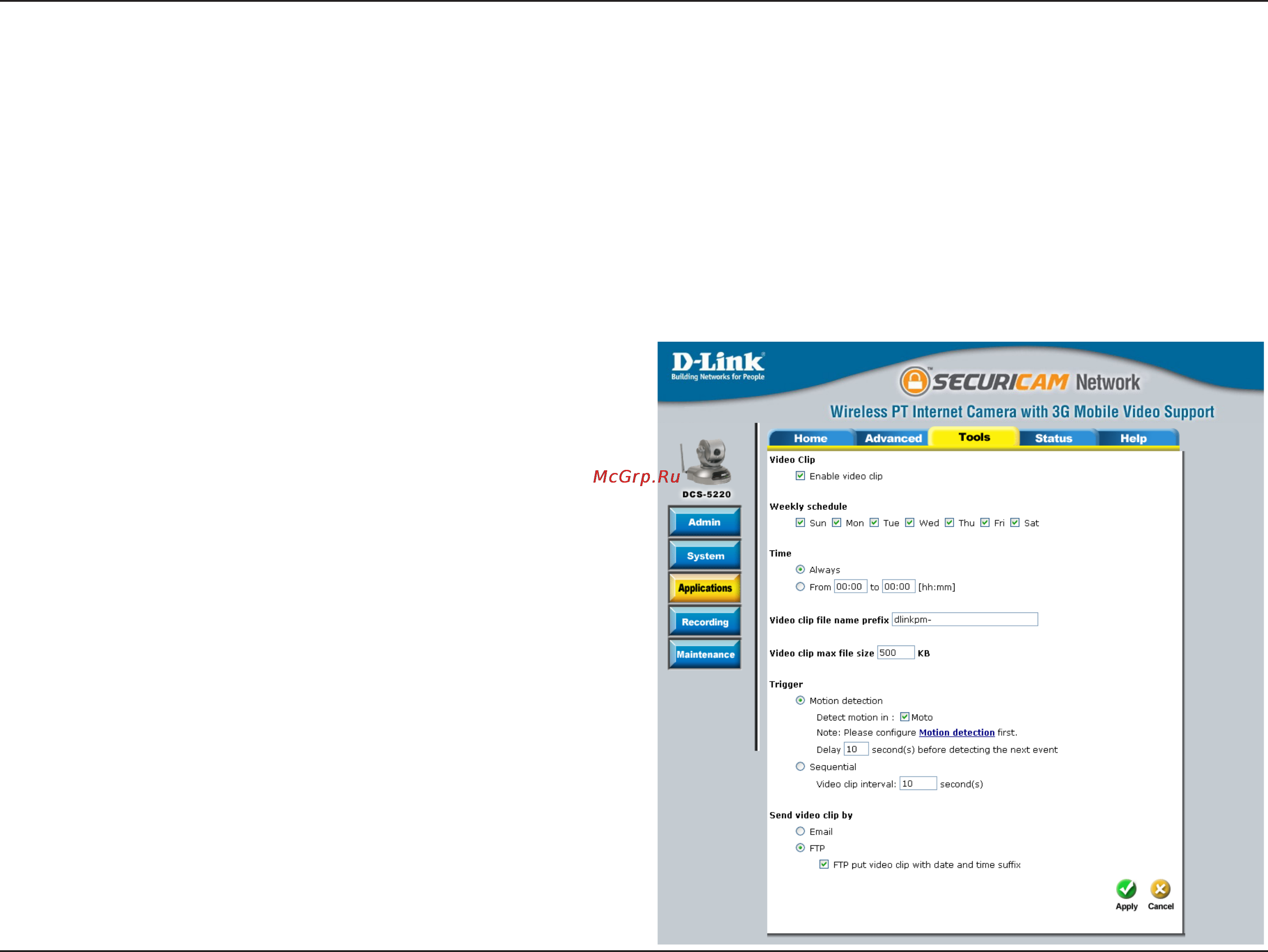

Applications > Video Clip
Check the motion detection window(s) to enable the motion triggering. The window(s) can be created in
Advanced > Motion Detection page.
This option enables continuous snapshot uploading.
The time interval for continuous snapshot uploading.
This option enables the camera to send the snapshot via e-mail.
This enables the camera to send the snapshot to a FTP server.
This option will add a date and time indicator to the snapshot le name. For instance, “snapshot@20060102030405.
jpg” indicates that the snapshot was captured at Year: 2006; Month: January; Date: 2nd; Time: 03:04:05
Detect Motion in:
Sequential:
Snapshot interval:
Email:
FTP:
FTP put video clip with date
and time suffix:
Check this option to enable video clip for
motion detection and sequential video
clip.
Select the day(s) according to when you
want the camera to make a video clip.
This enables the camera to make video
clips continuously.
The time range specied for the video
clip. For example: the video clip will start
at eight o’clock in the morning, and stop
at ve o’clock in the afternoon when input
the following time period - [From 08:00 to
17:00].
This option will add the prex to the video
clip le name.
This options set the maximum le size for
the video clip.
This option enables the motion detection
triggering for video clip uploading.
Enable video clip:
Weekly schedule:
Always:
From [00:00] to [00:00]:
Video clip file name prefix:
Video clip max file size:
Motion detection:
