D-Link DCS-5220 [82/153] Display ui settings

82D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

You must select the input signal format (NTSC or PAL) for displaying the original resolution of video stream

from DCS-5220.

Enable/Disable the time displaying on the video image.

Allows the user to pan and tilt the camera from the video image.

You can load a custom *.wav le for the alert triggering sound, or you can select a

sound le from the Windows

sound le directory.

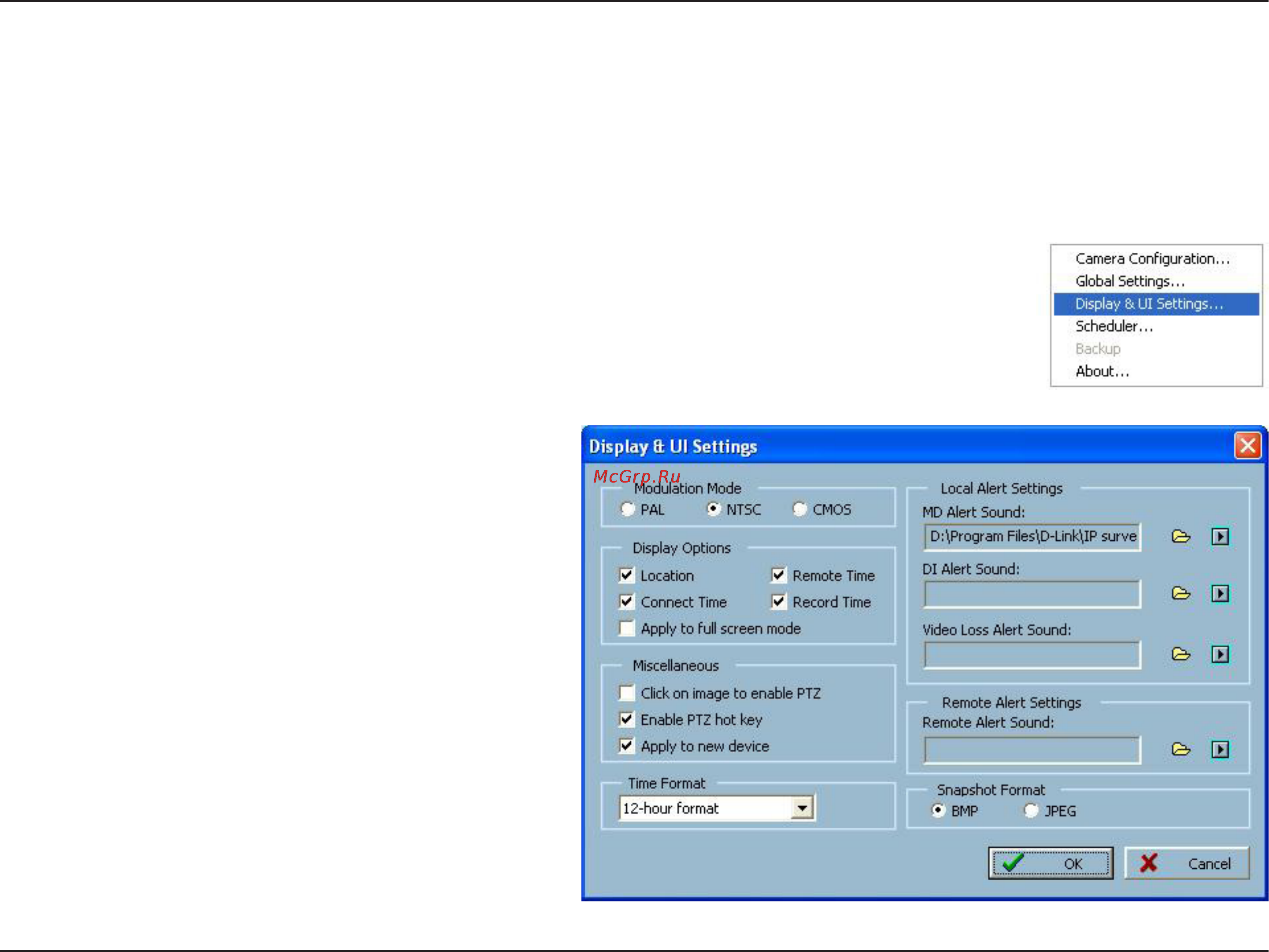

Display & UI Settings

Modulation Mode:

Display Option:

Misc:

Alert Sound:
