49D-Link DCS-5220 User Manual
Section 3 - Configuration
Click on the Applications button to access the Applications settings from the Tools menu.
Applications
This option enables the camera to take
snapshots.
This option enables the camera to record
video clips.
Snapshot:
Video Clip:

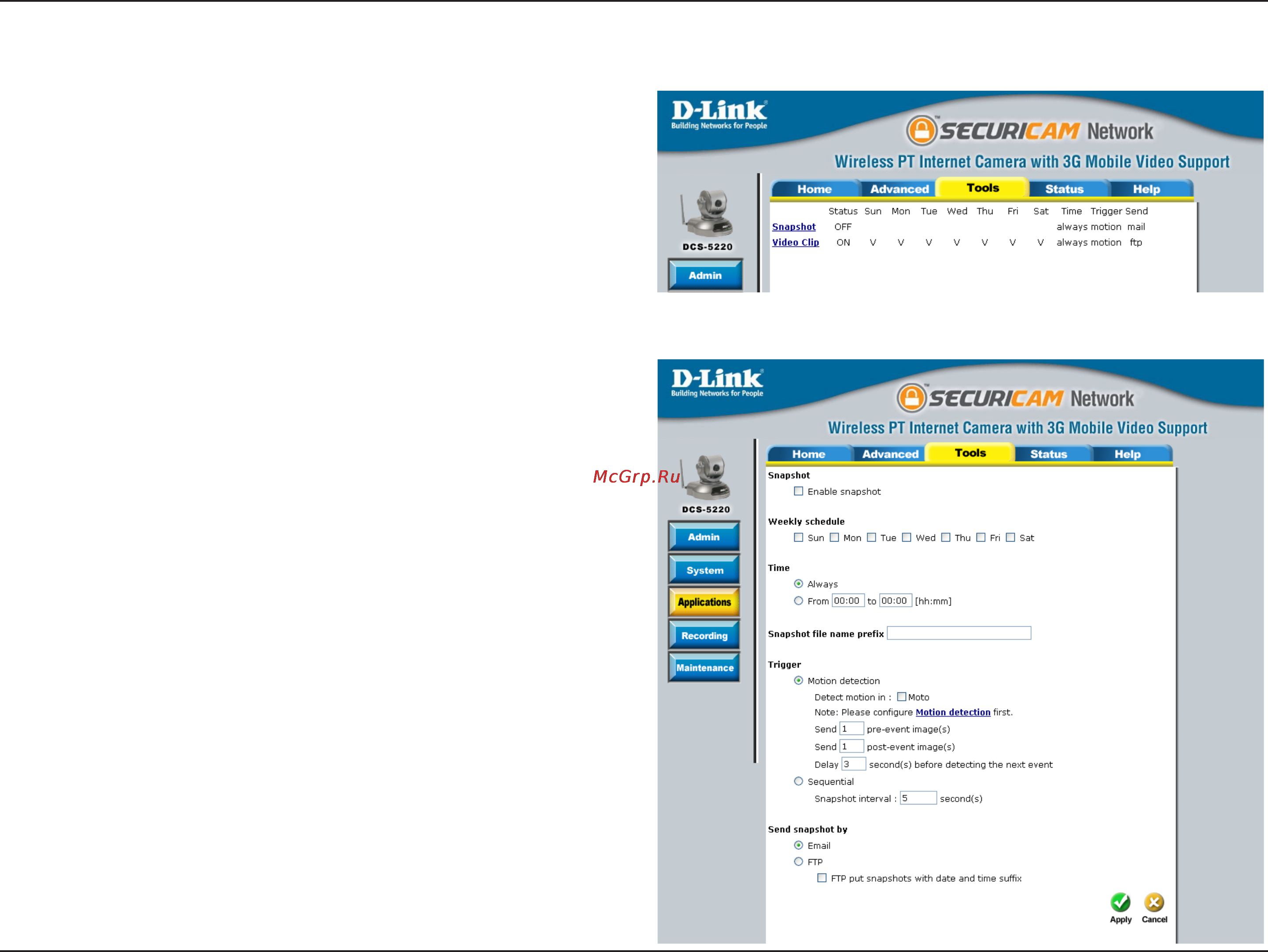

Applications > Snapshot
Check this option to enable the snapshot
for motion detection and sequential
snapshot.
Select the day(s) according to when you
want the camera to take snapshot.
This enables the camera to take snapshot
continuously.
The time range specied for the snapshot.
For example: the snapshot will start at
eight o’clock in the morning, and stop at
ve o’clock in the afternoon when input
the following time period - [From 08:00 to
17:00].
This option will add the prefix to the
snapshot le name.
This option enables the motion detection
triggering for snapshot uploading.
Enable snapshot:
Weekly schedule:
Always:
From [00:00] to [00:00]:
Snapshot file name prefix:
Motion detection:
