25D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

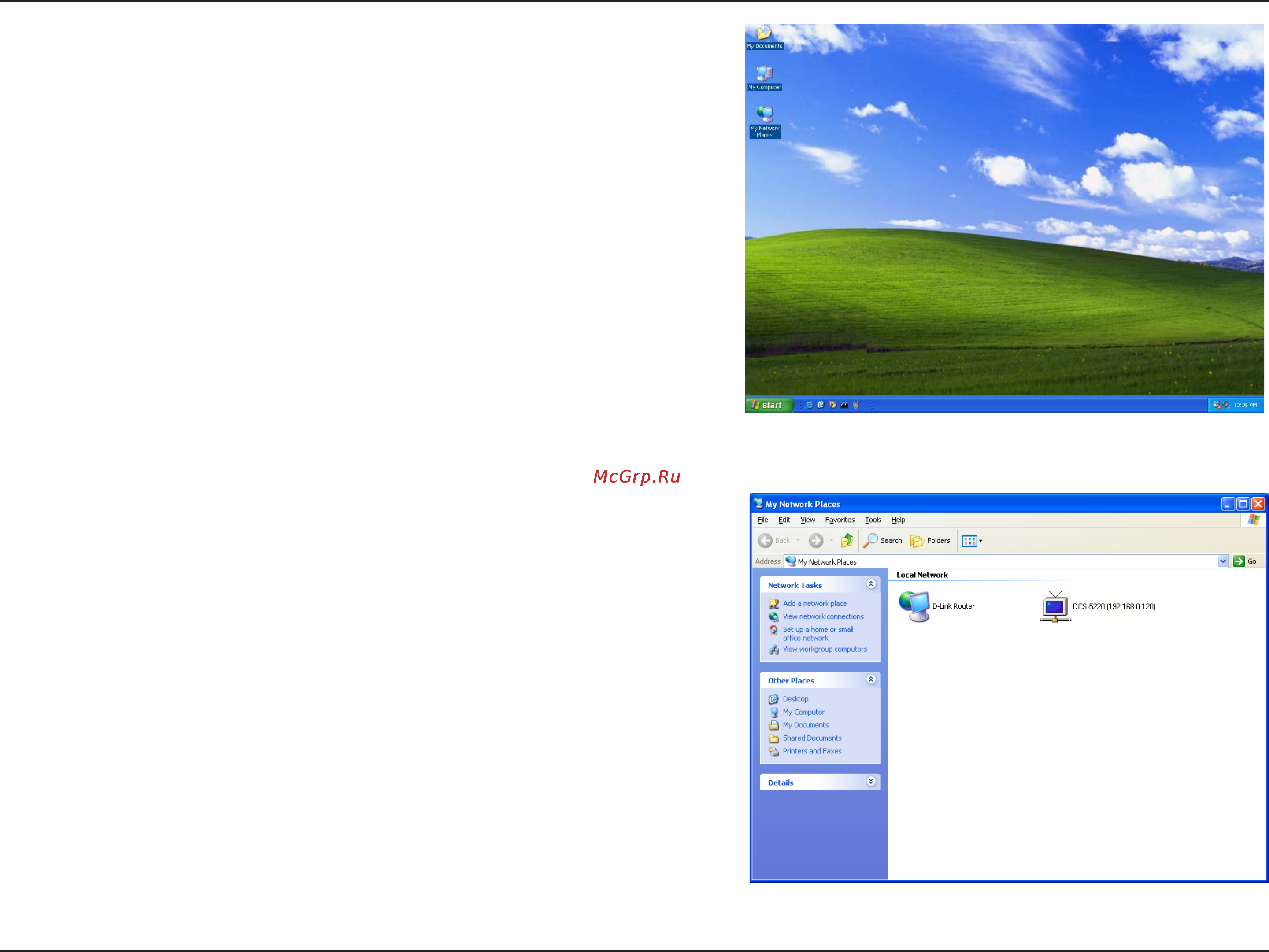

To view your DCS-5220 Internet Camera in an Internet browser, go

to your Desktop and click My Network Places.

Click DCS-5220 (192.168.0.120).
