26D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

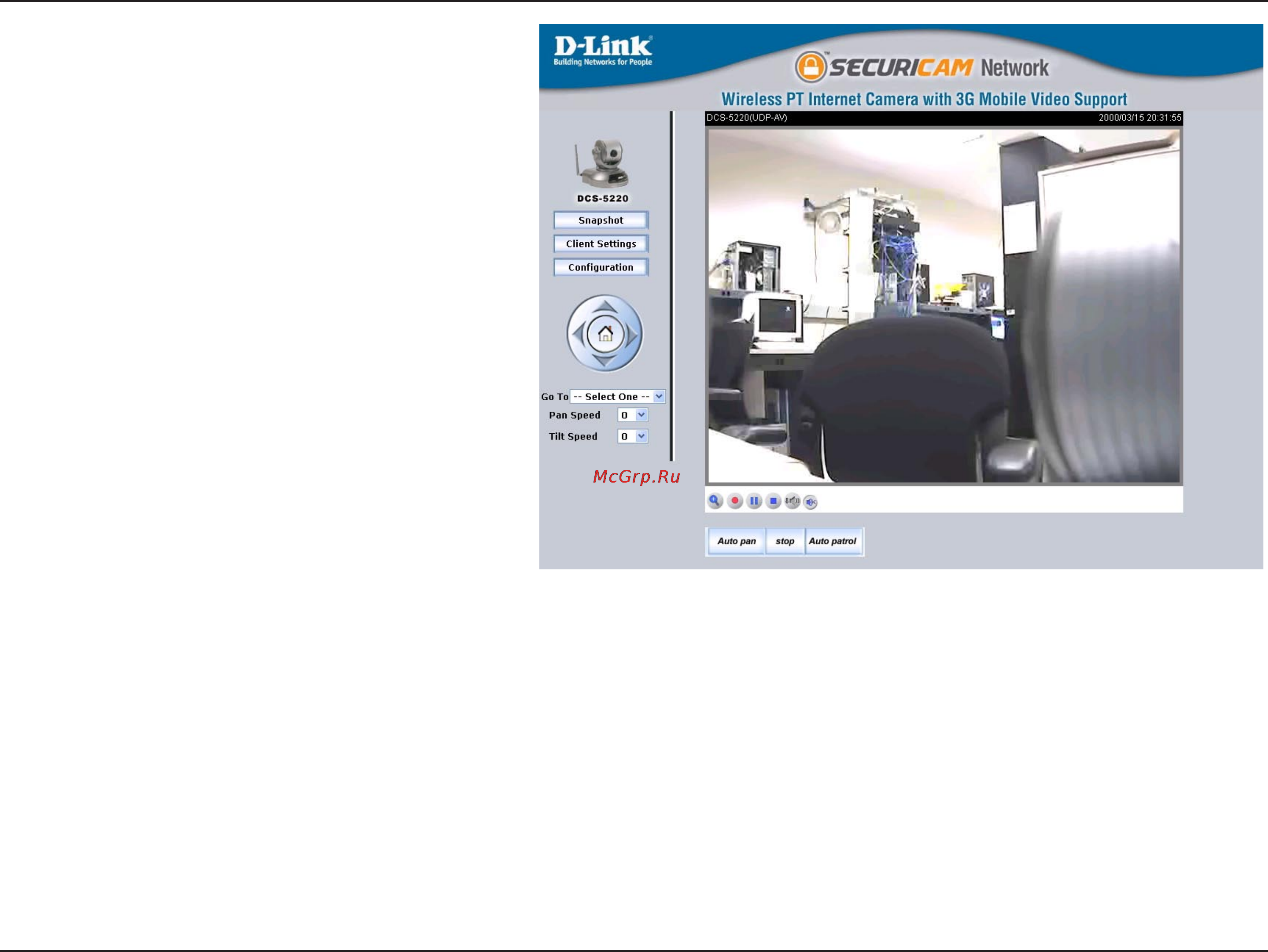

After you click on the DCS-5220-120 icon, your

Internet browser will automatically be opened to

the IP Address of the DCS-5220, in this example

it is: http://192.168.0.120. Your DCS-5220 may

have a different IP Address.
