D-Link DCS-5220 [21/153] Upgrade

21D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

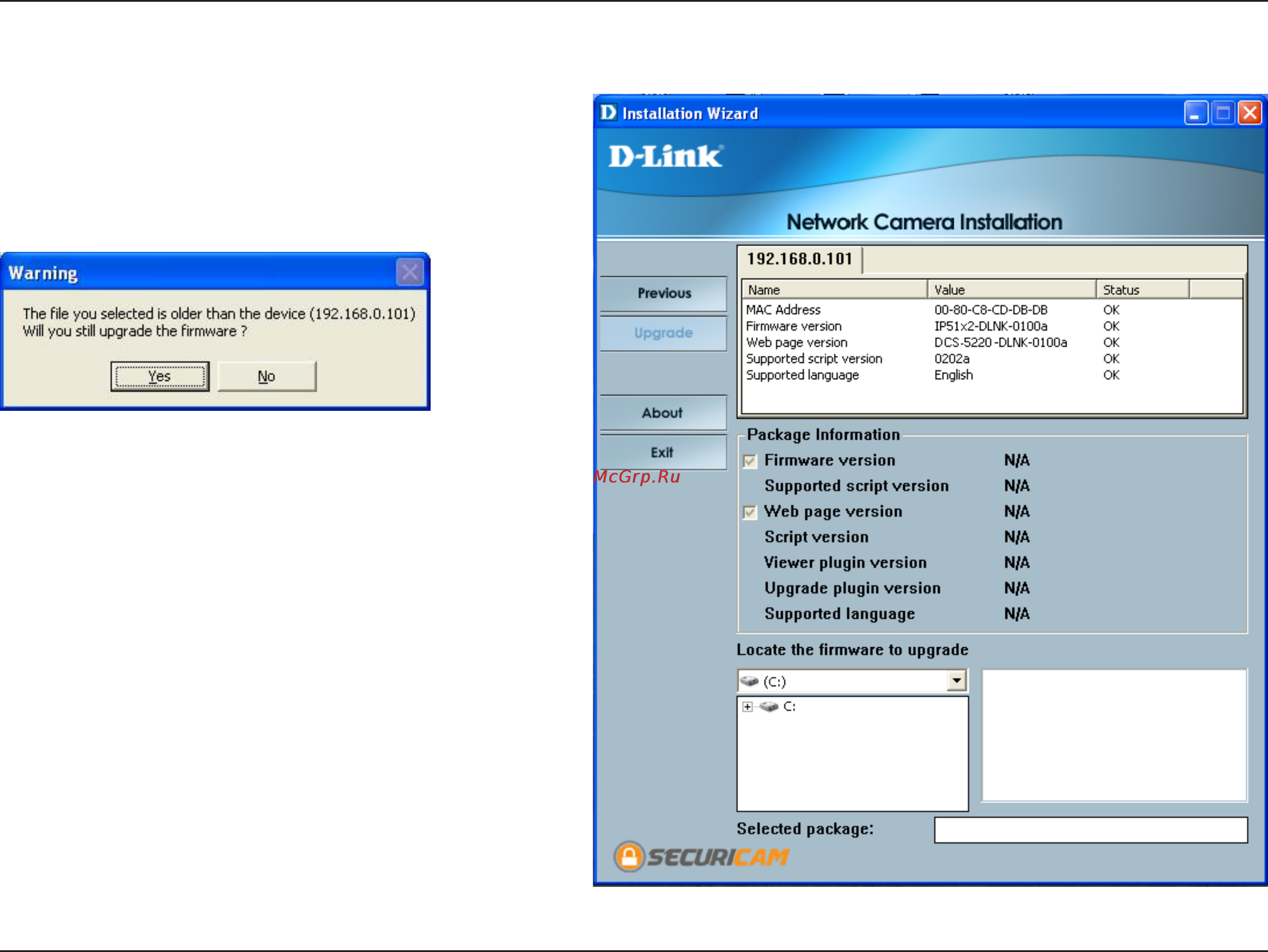

The upgrade window allows users to upload the

rmware. If the rmware is older than the current one

on the camera, a message will appear indicating this,

prompting the user to conrm the uploading.

Upgrade
