121D-Link DCS-5220 User Manual
Section 4 - Security
Run your Internet Explorer Web browser. In the address bar, type in the IP Address that was assigned to the Internet

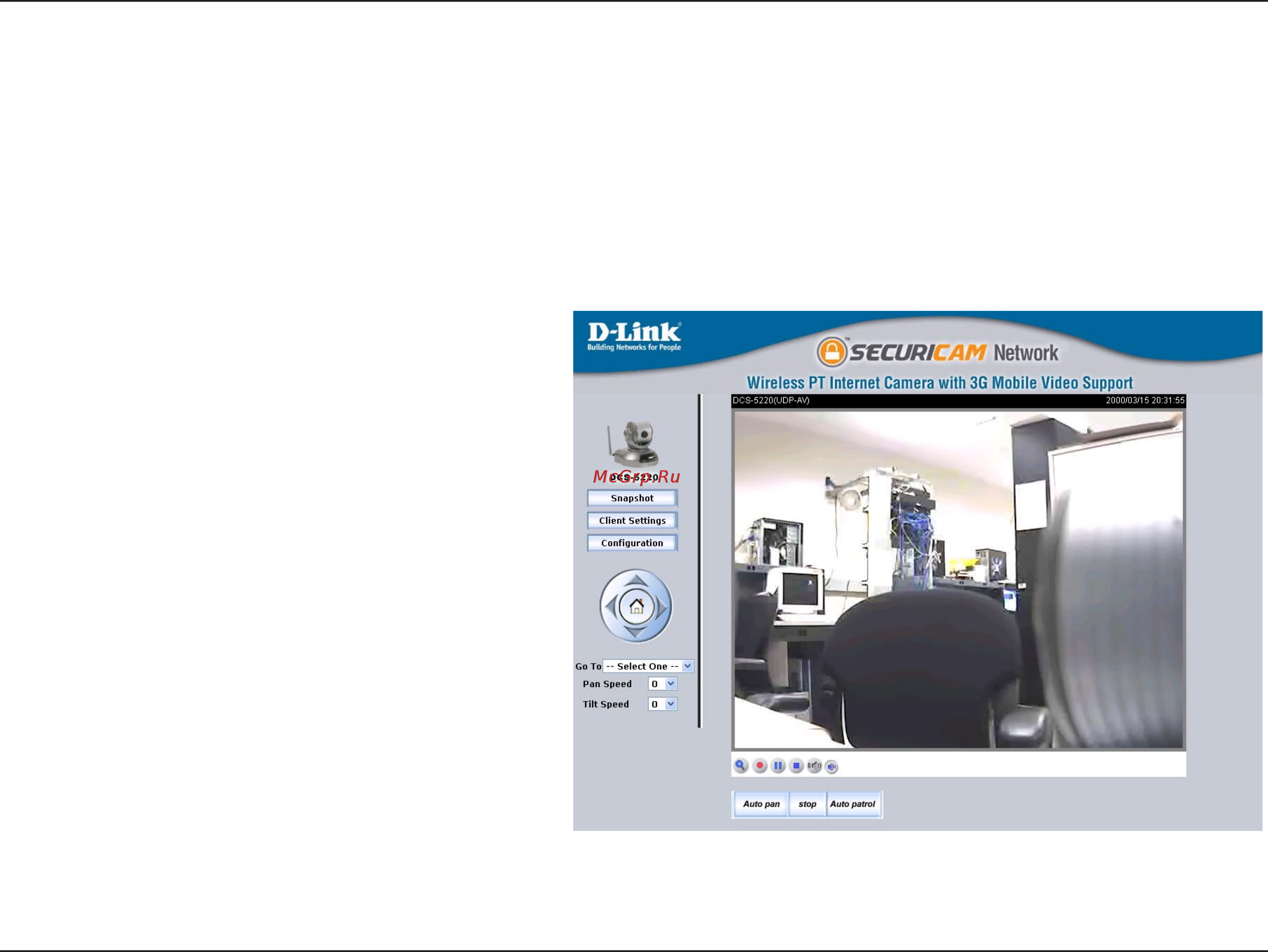

Camera by the Installation Wizard program. The DCS-5220 Home Page appears with a window displaying live video
from the camera. You are able to view this screen from any PC running Internet Explorer on your LAN.
Click on the Conguration button on the left side of the display. Scroll to the bottom of the Network Conguration page
(see page 122) to display the ports used by HTTP and Streaming audio and video.
