122D-Link DCS-5220 User Manual

Section 4 - Security

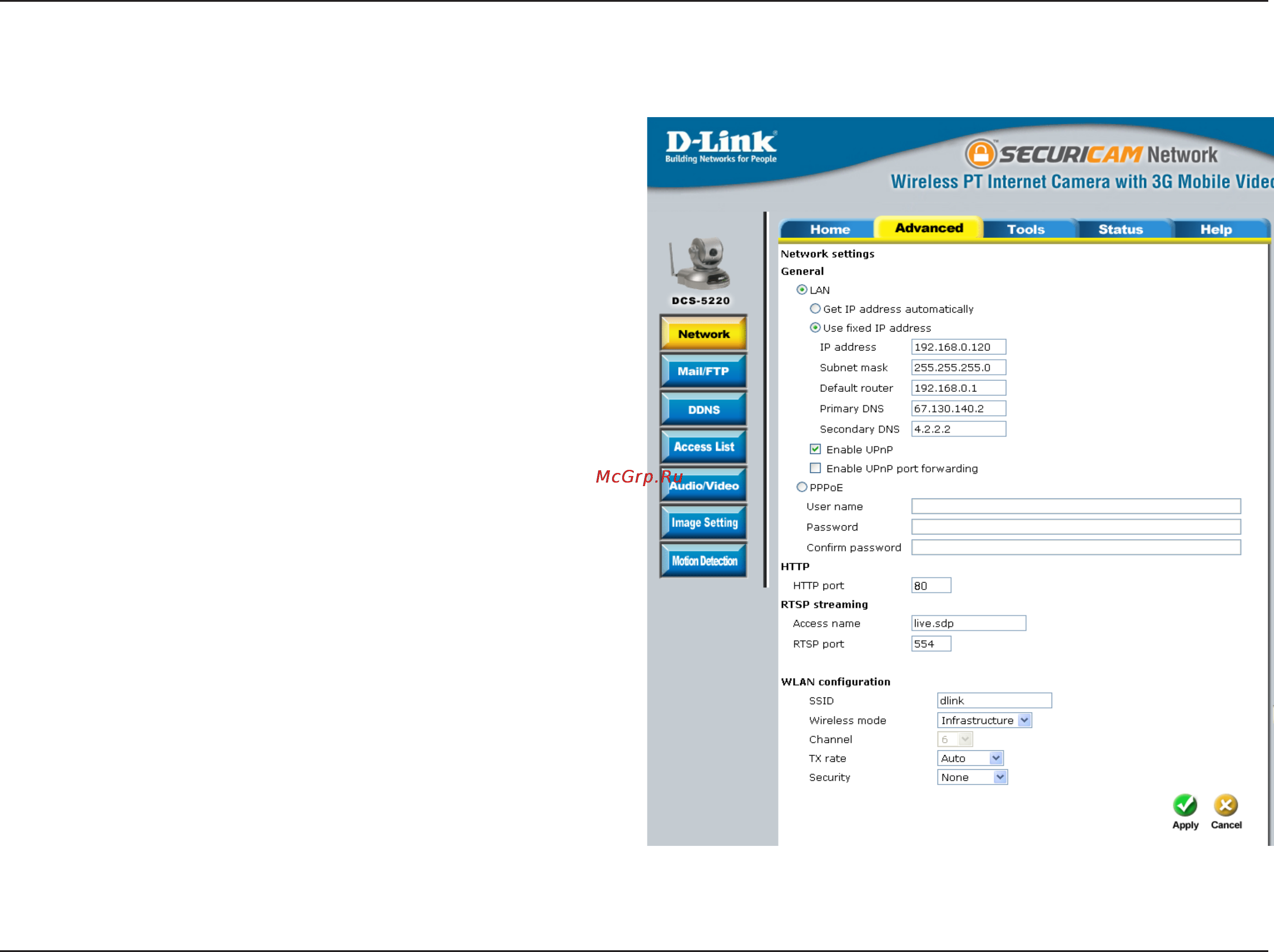

The Advanced > Network page displays the port settings for your camera. If necessary, these ports can be changed

if they are already in use by other devices (e.g. in a multiple camera environment).

Note: Ports 5556 - 5559, and both HTTP port and RTSP

port are required to be opened for the DCS-5220. Please

refer to page 124 on how to open ports in the router.
