D-Link DCS-5220 [32/153] Dcs 5220 configuration

32D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

There are 5 tabs across the top of the Conguration

screen. From each tab, different elements of the

DCS-5220 can be congured.

DCS-5220 Conﬁguration

Advanced

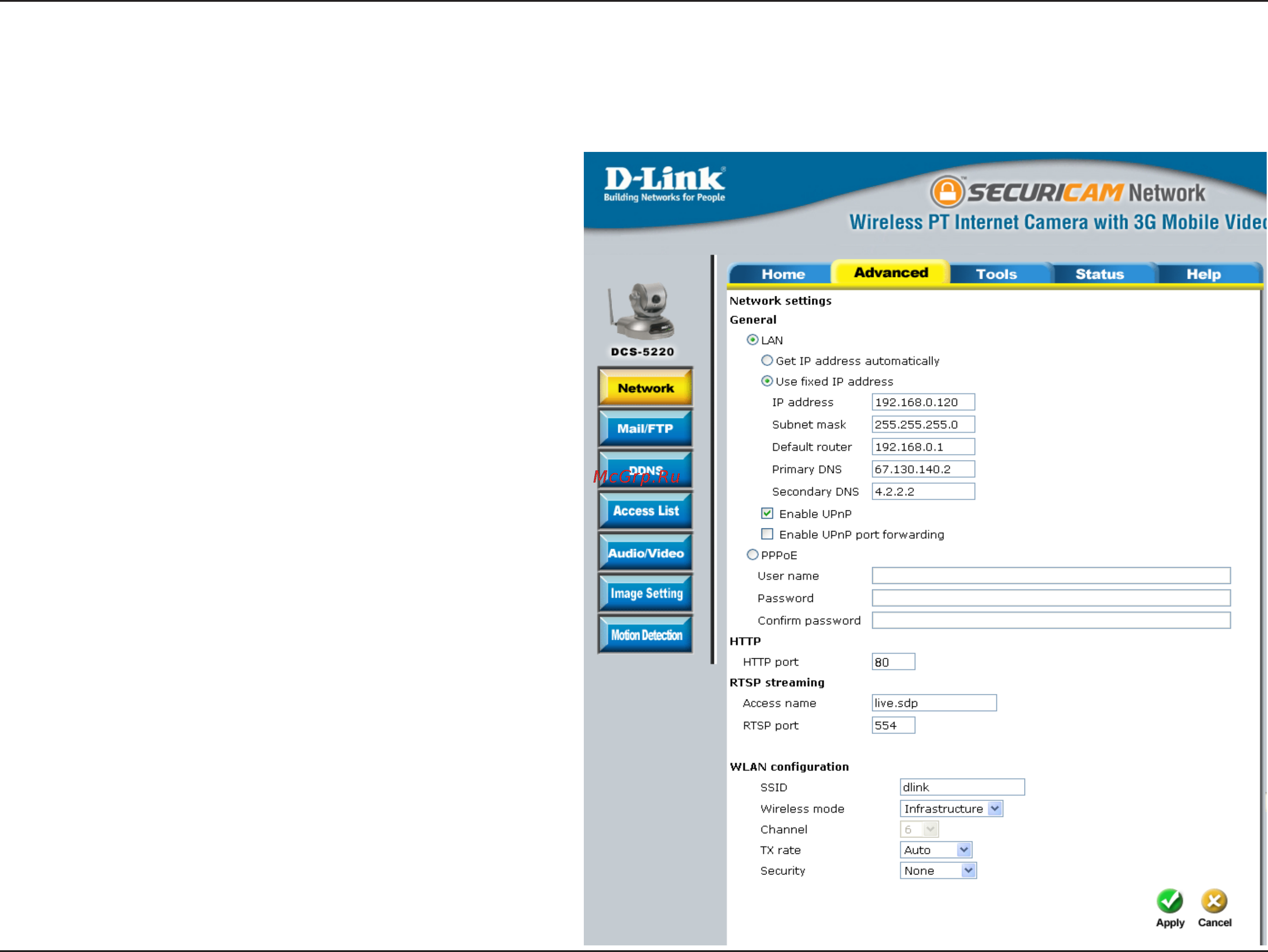

The Advanced tab provides the following conguration

options: Network, Mail & FTP, DDNS, Access List,

Audio/Video, Image Setting, and Motion Detection.
