51D-Link DCS-5220 User Manual
Section 3 - Configuration
Check the motion detection window(s) to enable the motion triggering. The window(s) can be created in
Advanced > Motion Detection page.
This option enables continuous video clip uploading.
The time interval for continuous video clip uploading.
This option enables the camera to send the video clip via e-mail.
This enables the camera to send the video clips to a FTP server.
This option will add a date and time indicator to the video clip le name. For instance, “video@20060102030405.
mpg” indicates that the video clip was captured at Year: 2006; Month: January; Date: 2nd; Time: 03:04:05 AM.
Detect Motion in:
Sequential:
Snapshot interval
Email:
FTP:
FTP put video clip with date
and time suffix:

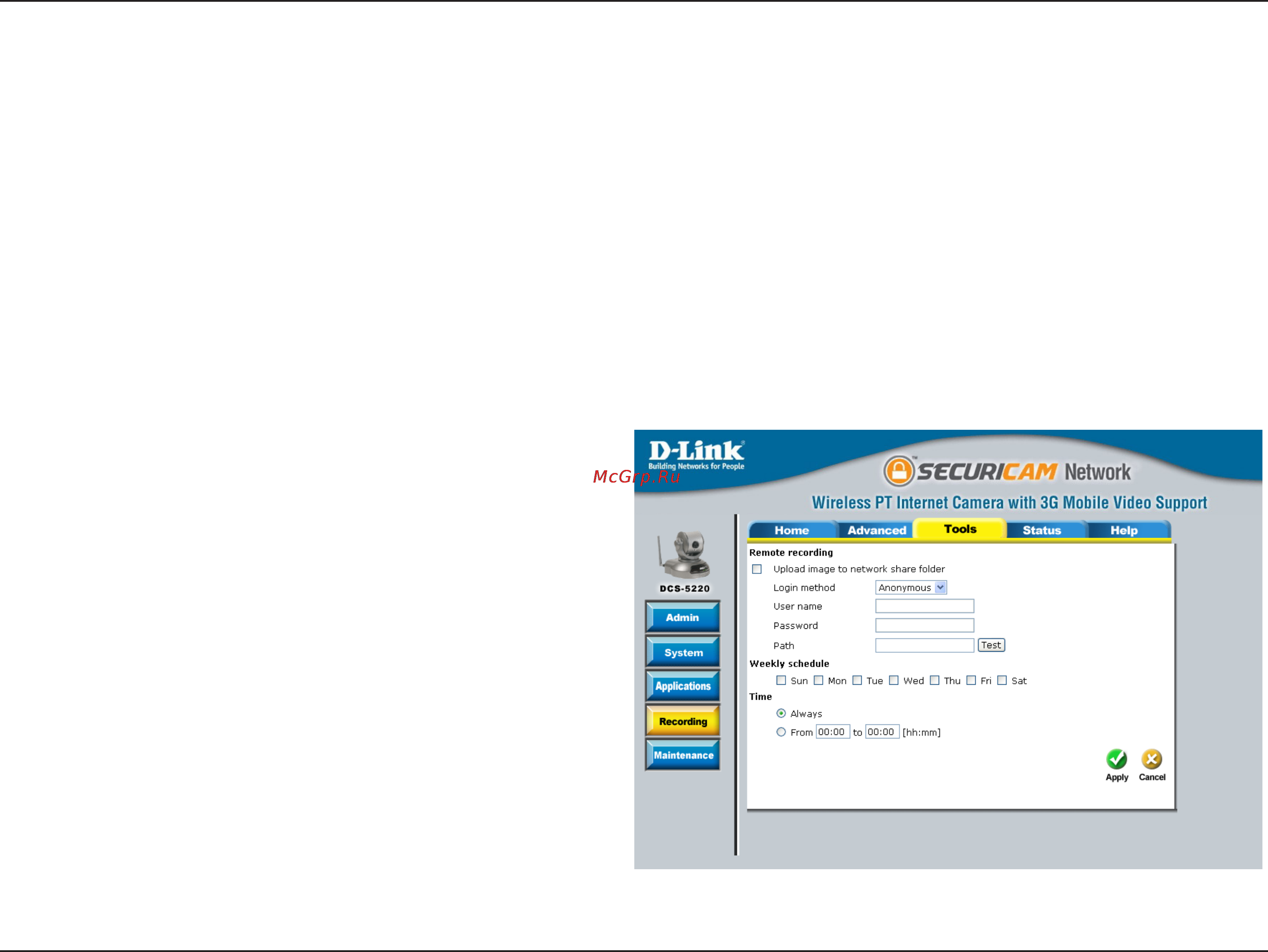

Recording
Check this option if you want to upload
the recording to a shared folder on the
network.
Select the day(s) according to when you
want the camera to make a video clip.
This enables the camera to make video
clips continuously.
The time range specied for the video
clip. For example: the video clip will start
at eight o’clock in the morning, and stop
at ve o’clock in the afternoon when
input the following time period - [From
08:00 to 17:00].
Upload image to network
share folder:
Weekly schedule:
Always:
From [00:00] to [00:00]:
