D-Link DCS-5220 [66/153] Using the ip surveillance software
![D-Link DCS-5220 [66/153] Using the ip surveillance software](/views2/1043923/page66/bg42.png)
66D-Link DCS-5220 User Manual
Section 3 - Configuration
Launcher is a controller program that allows users to invoke Monitor or Playback quickly.
System Tray Icon
The Launcher icon reects current state of IP surveillance. The icon in the system tray signies that the IP surveillance
Software is currently active on the system.

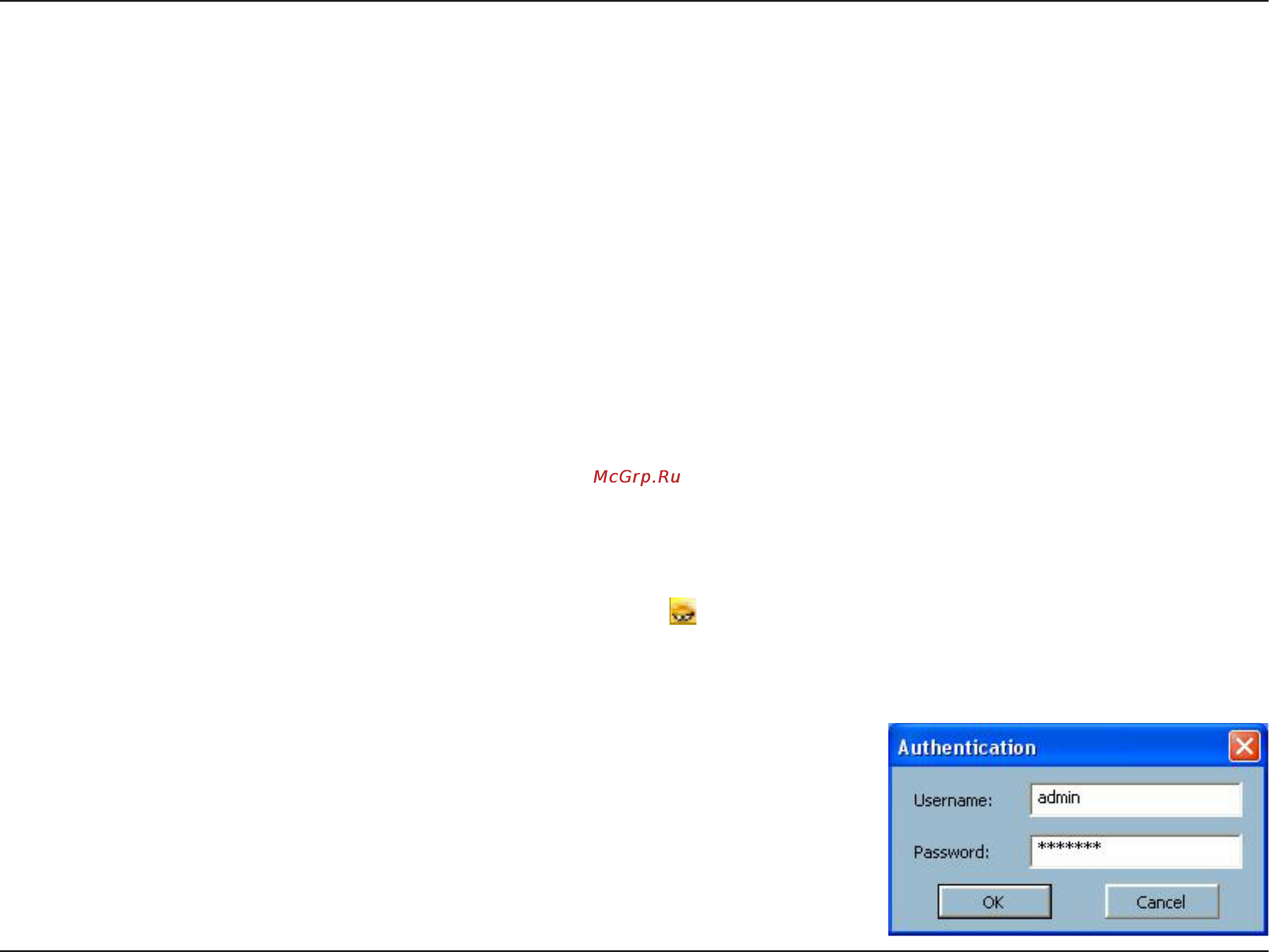

Security for Launcher
When Launcher starts, there is no need to undergo a username/password check.
But when users want to click on the icon of Launcher on system tray, Launcher
will pop up a username/password dialog the rst time for menu popup or when
Launcher is locked. If a user fails to pass the authentication check, no menu will
show up. If a user fails 3 consecutive tries he/she will be locked out for a period
of 60 seconds.
Launcher
Using the IP Surveillance Software
Before you begin installing this application software, the hardware system requirements must be checked rst. The
minimum system requirements recommended for this application are as follows:
• Windows
®
2000 or XP
• At least 256MB of memory (512MB recommended)
• A wireless (802.11b or 802.11g) or Ethernet network
• Internet Explorer 6.x or higher Internet Web Browser
• VGA card resolution: 800x600 or above
• CPU: 1.3GHz or above processor (2.4GHz processor or higher with 512MB memory and a 32MB video
card is required for multiple camera viewing and recording in IP surveillance program)
