D-Link DCS-5220 [53/153] Status

53D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

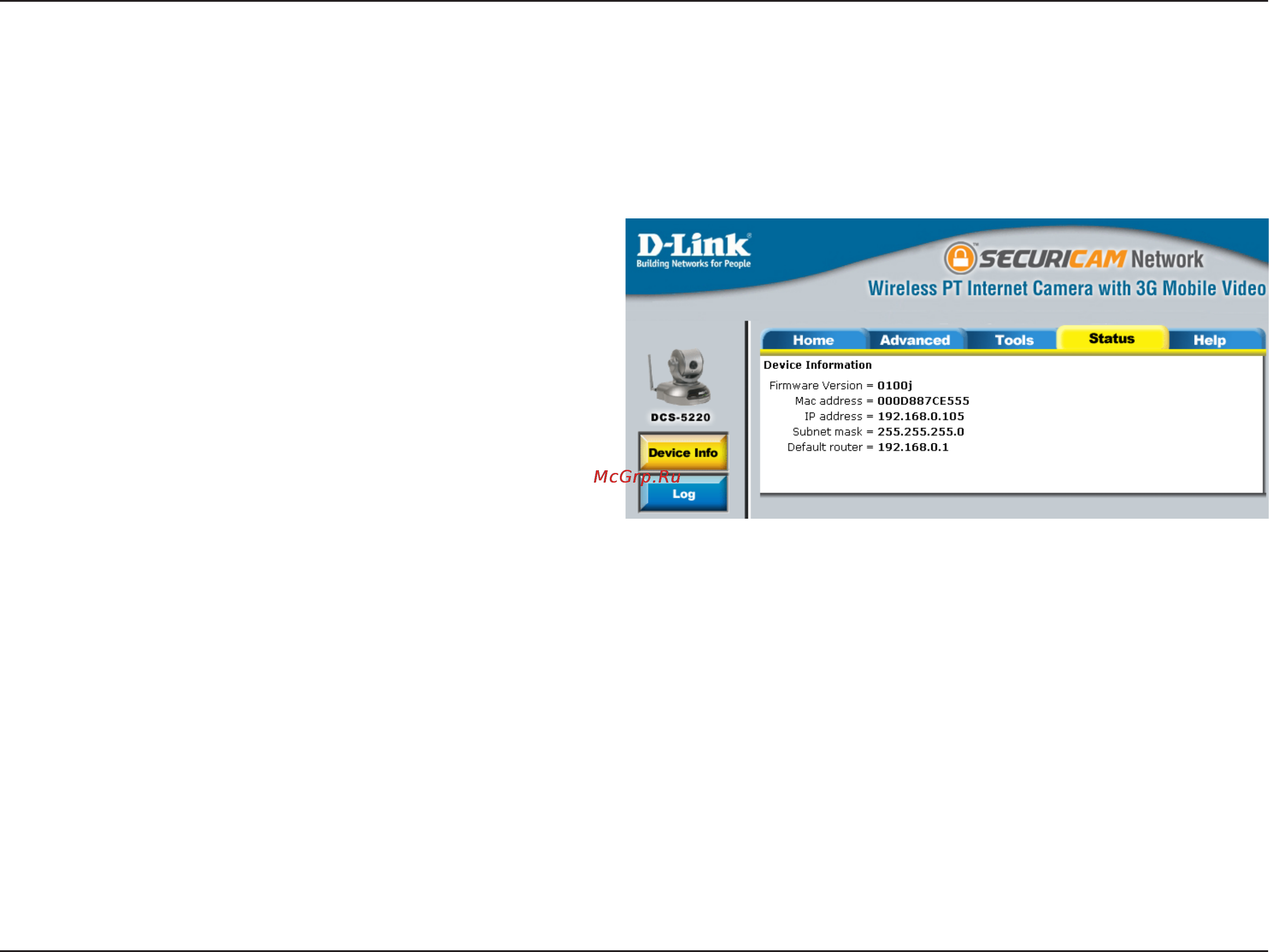

The Device Info screen lists the following important

settings that are currently set for the DCS-5220:

• Firmware Version number

• Mac Address

• IP Address

• Subnet Mask

• Default router address

Device Info

The Tools tab provides the following conguration options: Device Info and Log.

Status
