54D-Link DCS-5220 User Manual
Section 3 - Configuration
Log
The content of the log le reveals useful information about the current conguration and connection logged after the
DCS-5220 starts up.
This option enables the camera to send
camera log les to a remote server.
The IP address of the remote server.
The port number of the remote log server.
The default port is 514.

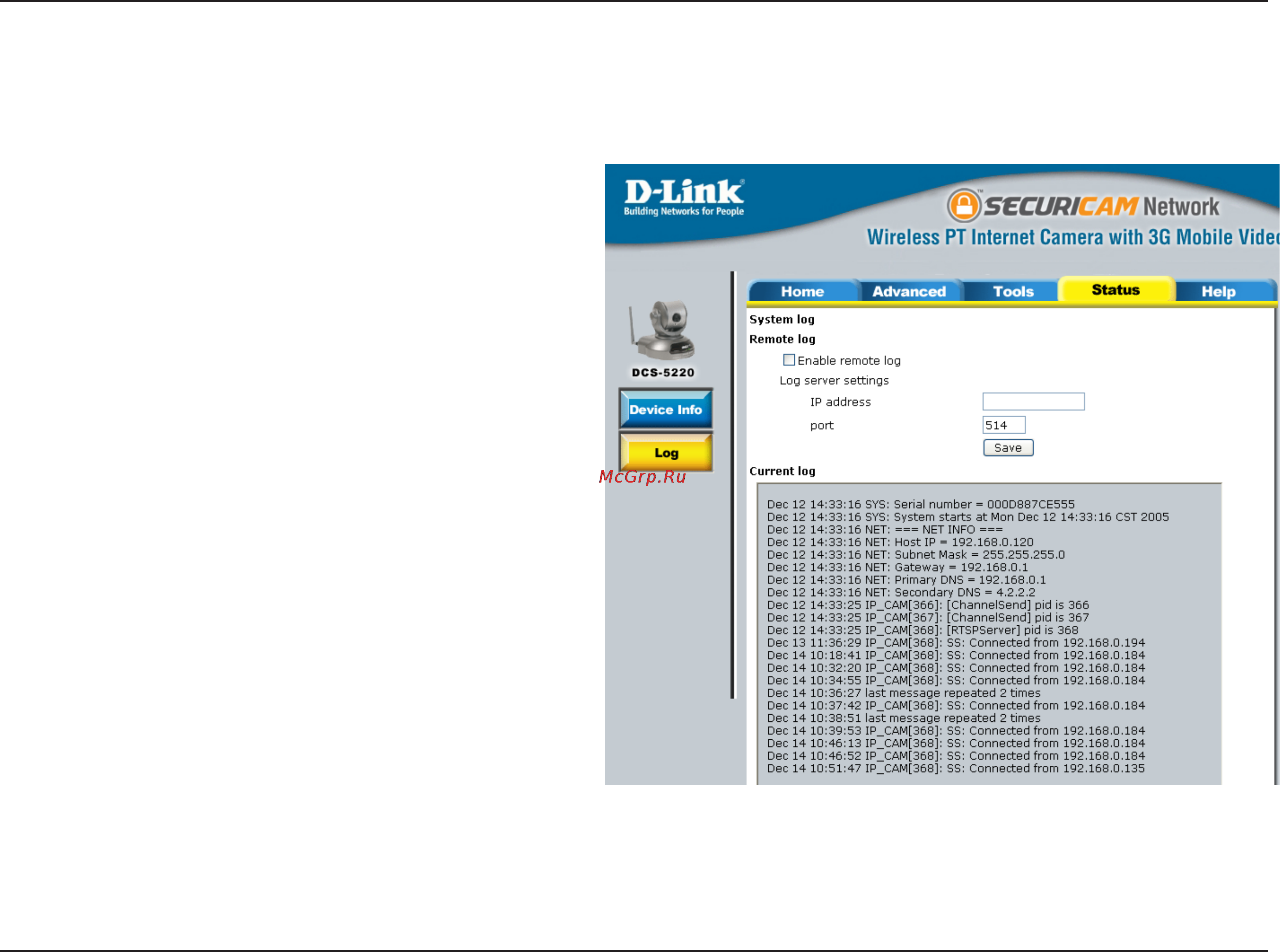

View the system log le. The content of the
le reveals useful information about camera
conguration and connectivity status after
the camera boots up.
Enable remote log:
IP Address:
Port:
Current log:
