D-Link DCS-5220 [126/153] Using configuring 3g compatible cell phones

126D-Link DCS-5220 User Manual

Section 4 - Security

Before you start, please refer to page 32 to nd the Access Name of the RTSP protocol. To enter the RTSP streaming

address, please follow this format: rtsp://ip address of the camera/live.sdp.

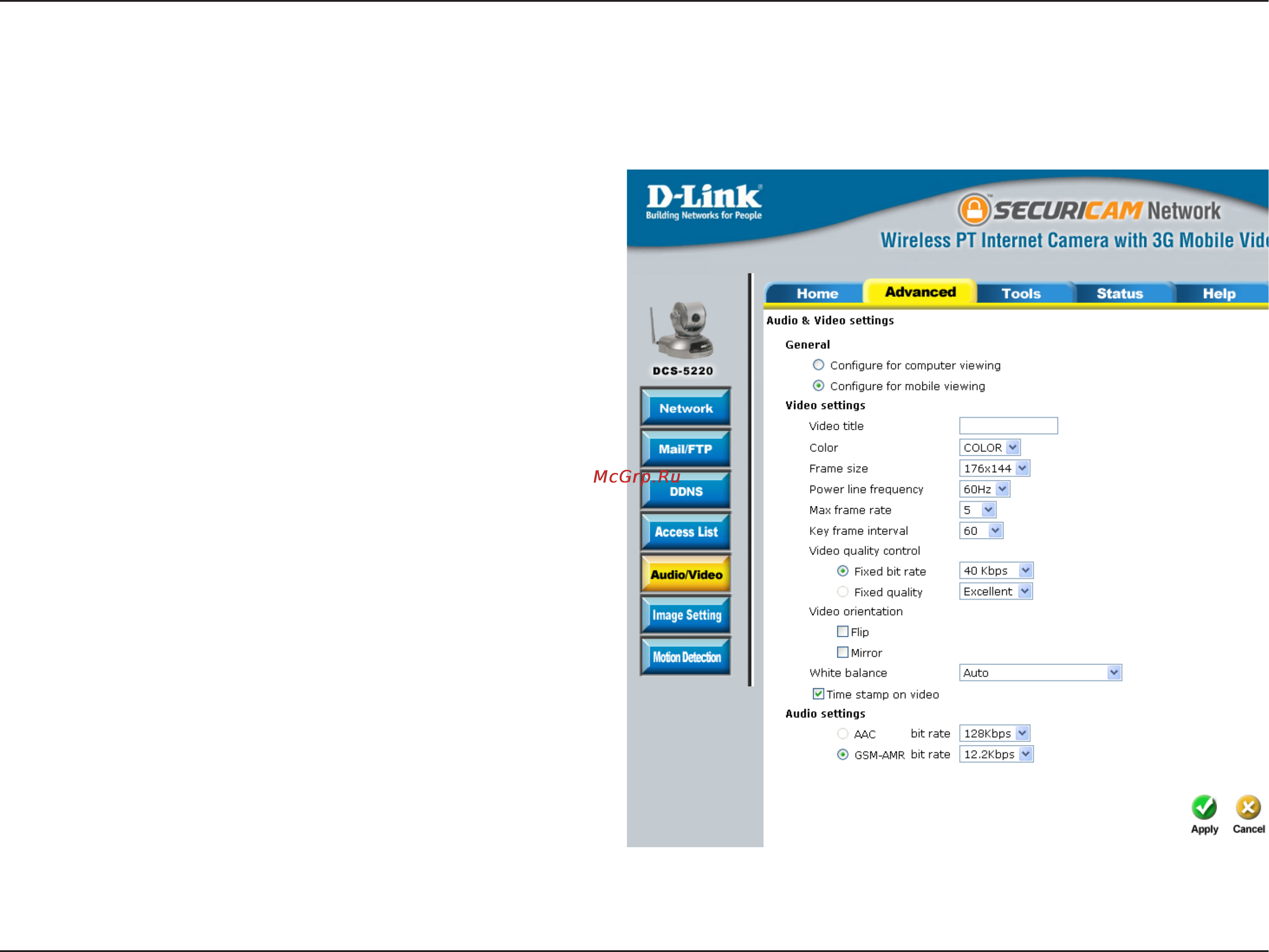

To enable mobile device video streaming, you will need

to select Congure for mobile viewing (see sample

screenshot to the right).

Using & Conﬁguring 3G Compatible Cell Phones
