30D-Link DCS-5220 User Manual
Section 3 - Configuration
Click on the Snapshot button to capture a snapshot
image. The image will pop up in a new window. This
image can be saved into the local hard drive.
Click on the Connection Type button to change settings
related to the camera connection.
Click on the Configuration button to access the
conguration menu where you can congure the camera
settings under the Advanced, Tools, and Status tabs.
Click the Zoom button below the image to display the
digital zoom control panel. Using the bar, you can select
to view the image up to 400% of the original size.

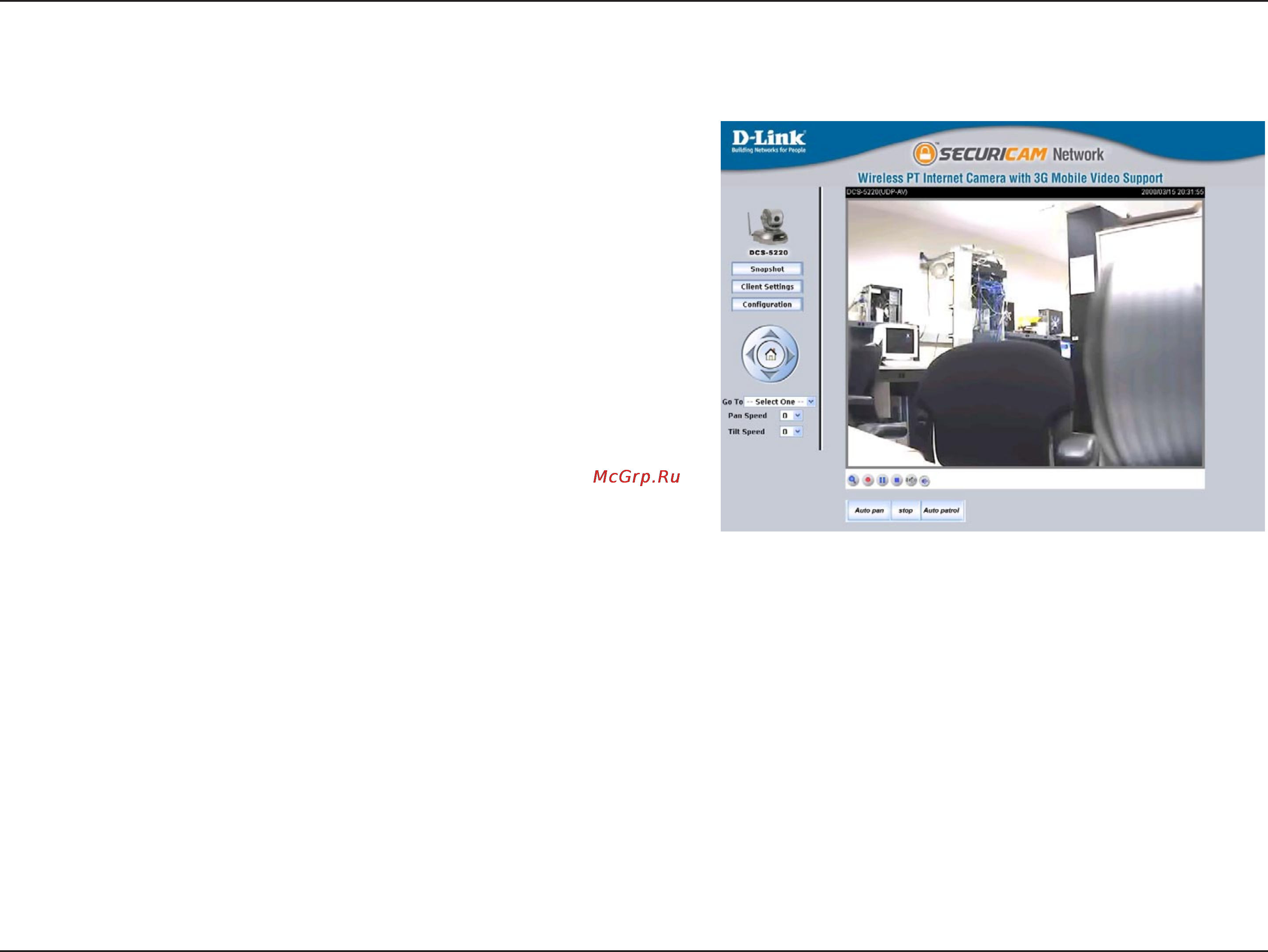

The image from the DCS-5220 should be visible from the Home page on your computer monitor.
Home Page Screen
Snapshot:
Connection Type:
Configuration:
Zoom:
