4D-Link DCS-5220 User Manual
Section 1 - Product Overview

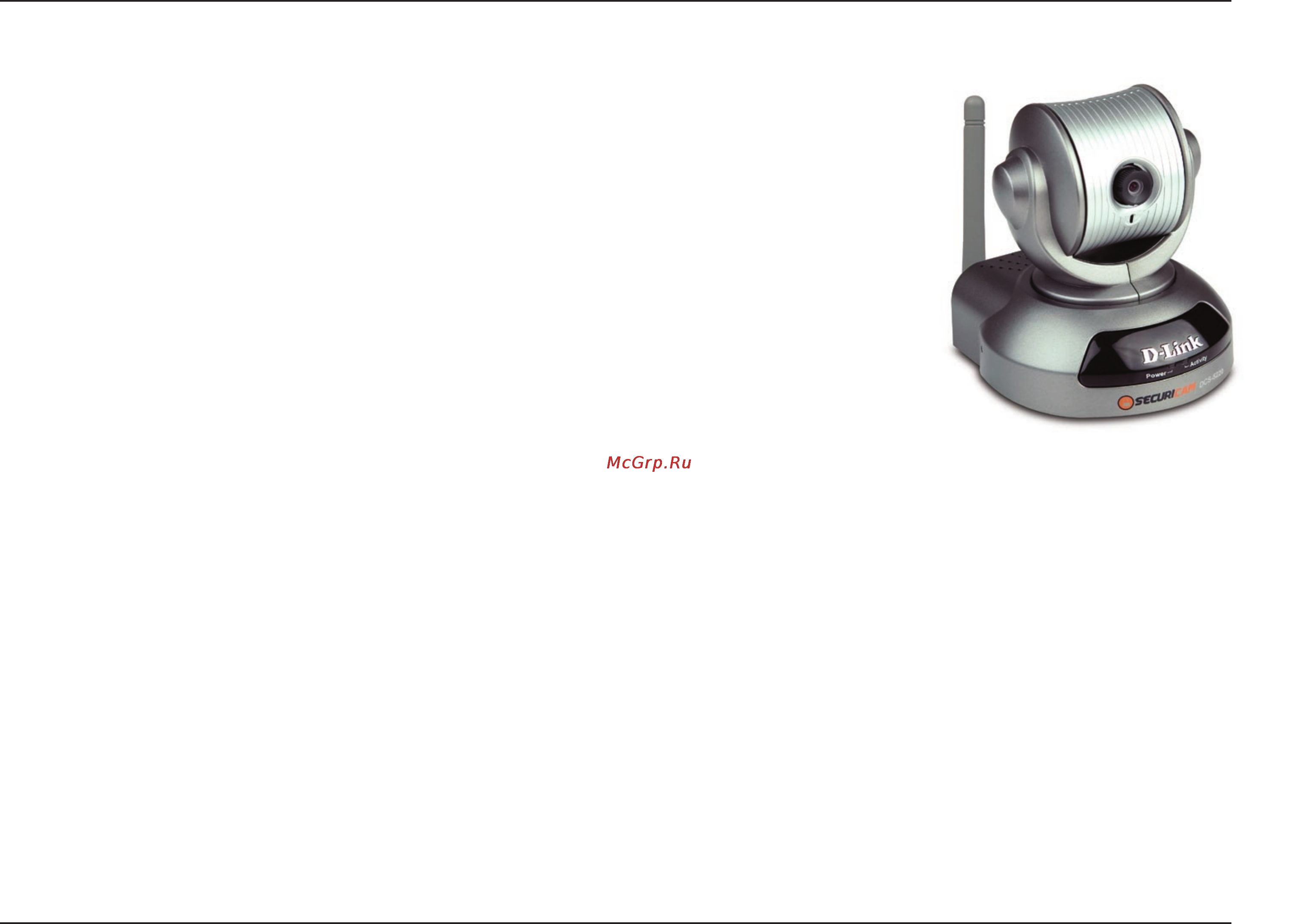

• D-Link DCS-5220 Wireless PT Internet Camera with 3G Mobile Video Support
• CAT5 Ethernet Cable
• Power Adapter
• Antenna
• Manual and Software on CD
• Quick Install Guide
• Camera Stand
Note: Using a power supply with a different voltage than the one included with
your product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• Windows
®
2000 or XP
• At least 256MB of memory (512MB recommended)
• A wireless (802.11b or 802.11g) or Ethernet network
• Internet Explorer 6.x or higher Internet Web Browser
• VGA card resolution: 800x600 or above
• CPU: 1.3GHz or above processor (2.4GHz processor or higher with 512MB memory and a 32MB video
card is required for multiple camera viewing and recording in IP surveillance program)
Product Overview
Package Contents
