57D-Link DCS-5220 User Manual
Section 3 - Configuration

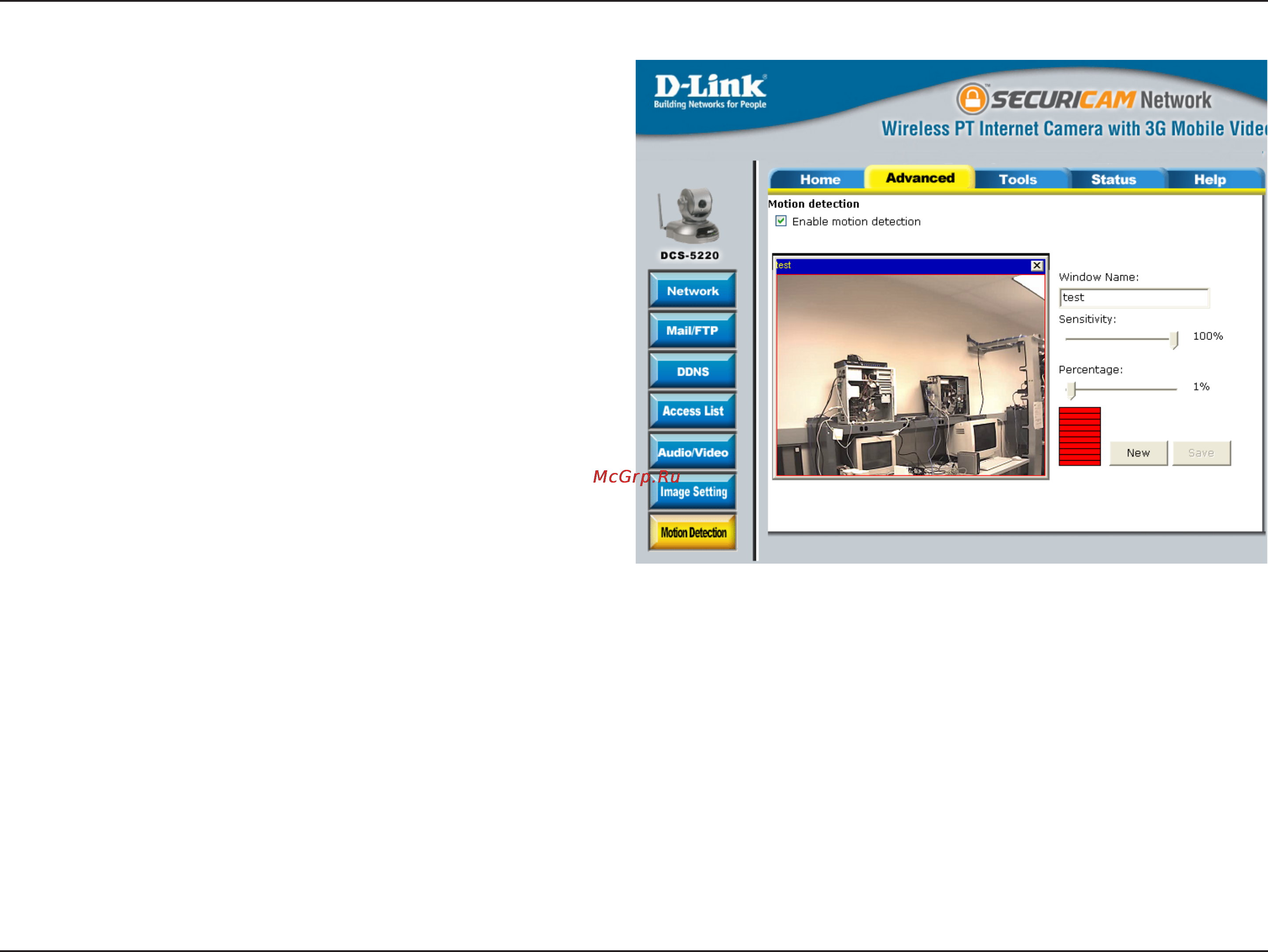

In this window, follow the steps below to ensure that motion detection is correctly enabled:
1 Check “Enable motion detection.”
2 Click on “New” to have a new window to
monitor video.
3 Enter in a window name.
4 Tune the “Sensitivity” and “Percentage”
according to the local environment.
Combined higher sensitivity with lower
percentage gives you high sensitivity for the
motion detection.
5 Click on save to enable the activity
Next, click the Mail & FTP button under the Advanced tab to set the FTP server settings for the DCS-5220.
