60D-Link DCS-5220 User Manual
Section 3 - Configuration
For detailed information about each setting, please refer to
Conguration > Advanced > Mail & FTP in the section
titled “Using the DCS-5220 With an Internet Browser” (page
29). Click the apply button when nished.

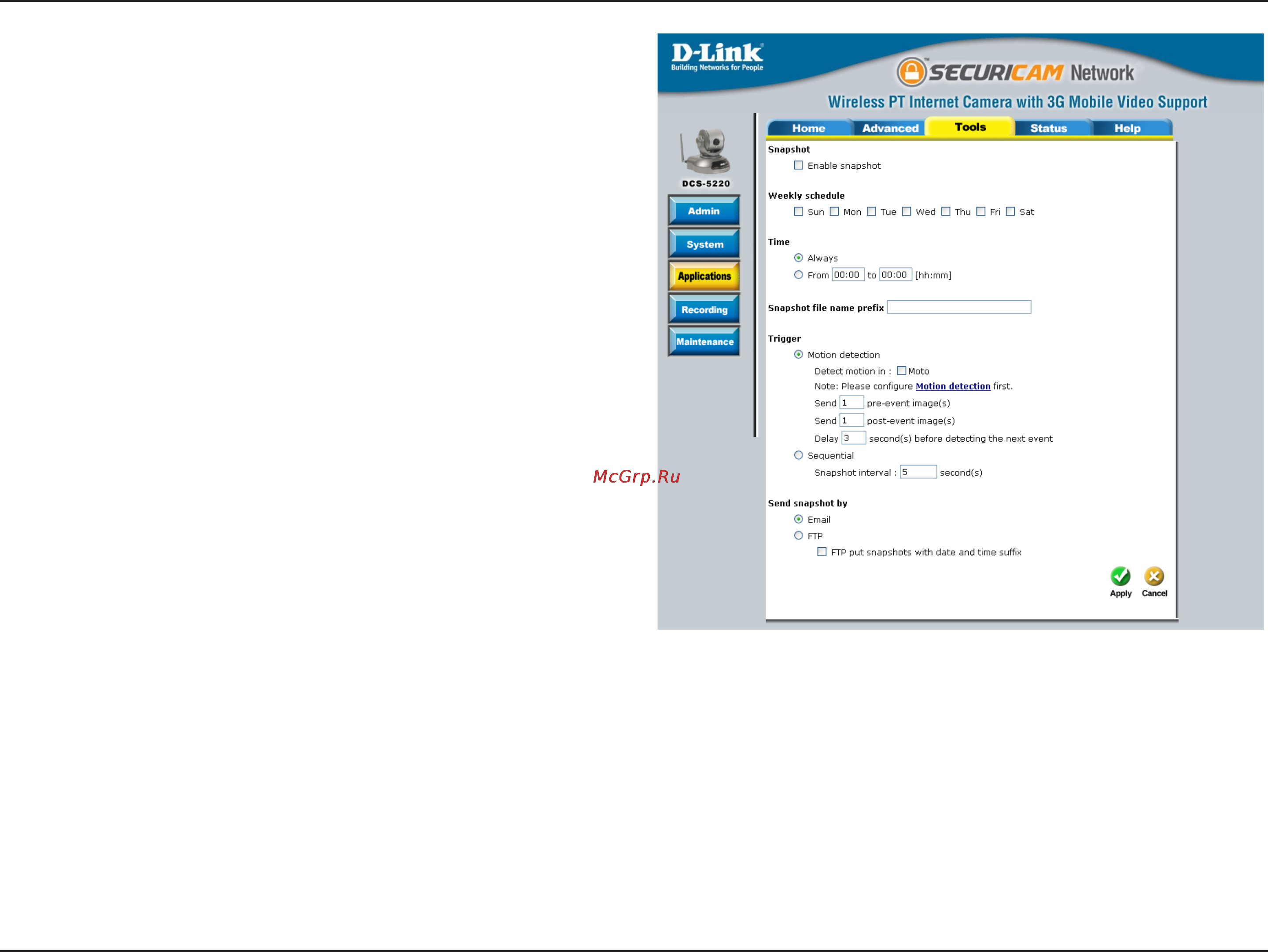

Click the Applications button under the Tools tab and select
snapshot to set the application settings for the DCS-5220.
In this window, follow the steps below to set the application
settings for snapshots to be recorded to an FTP site:
1 Check the
Enable snapshot box.
2 Select
Weekly schedule and setup Time.
3 Select
Motion Detection and check the motion
window name (in this case: Moto).
4 Set the delay to “take snapshots after event” to capture
the direction of the moving object.
5. Click
Send snapshots by FTP and check “FTP put
snapshots with date and time sufx”.
6. Click the “Apply” button to save the settings.
Click the apply button when nished. You are now able to record snapshots to your FTP server when motion detection
is triggered.
