79D-Link DCS-5220 User Manual

Section 3 - Conﬁguration

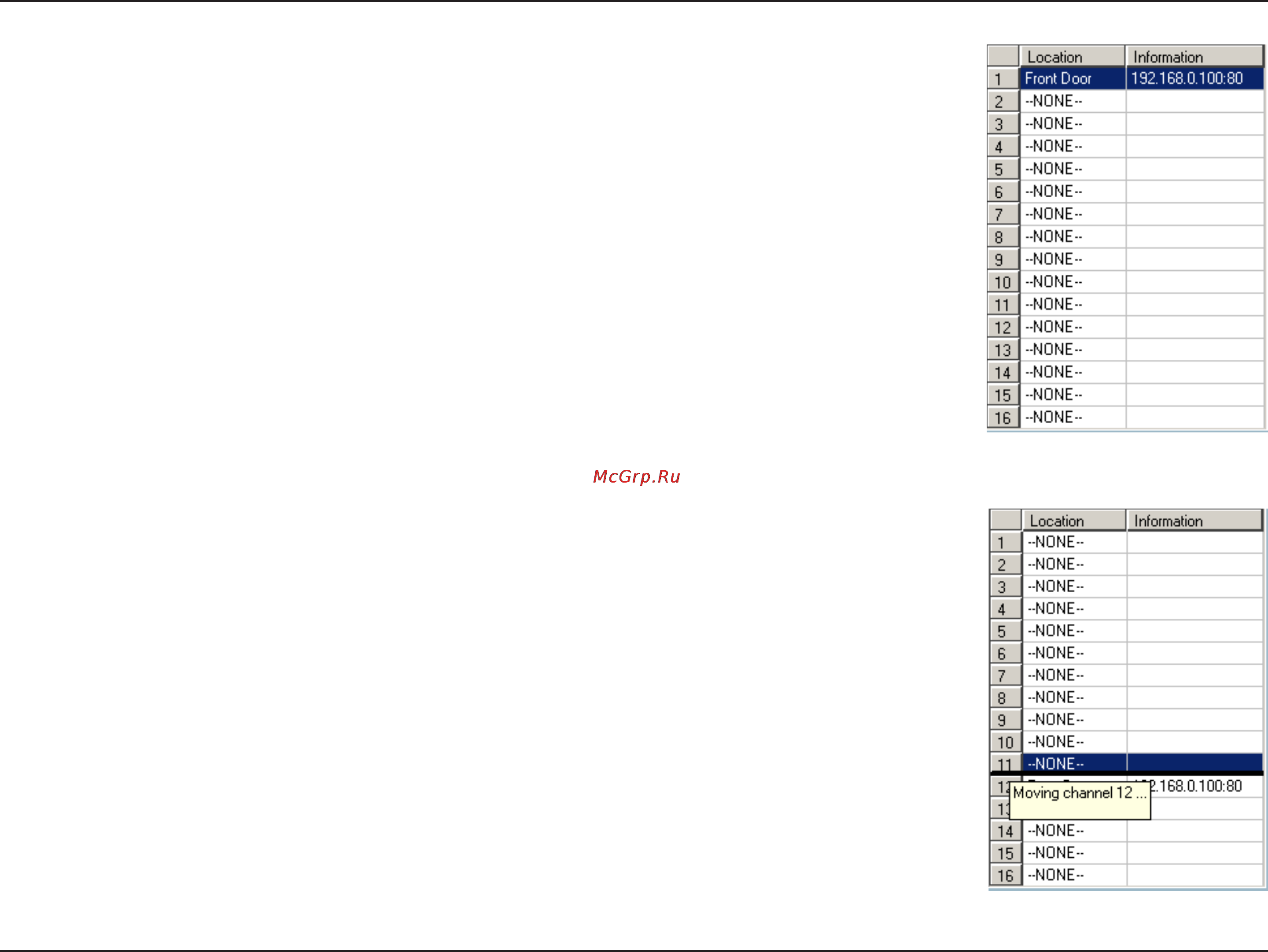

Press and hold the left mouse button at the gray index eld of the camera you would like

to move.

Drag the mouse to your new selected location and release the mouse button. Then Video 1 will be moved (to the 12th

row in this example).

Once you click the Save button (see page 75) in the left-bottom corner of this window, the

changes for all camera congurations will be saved and will be applied immediately to the

IP surveillance.
