Fluke 19xC-2x5C
Users Manual
62
To set the pulse width to 5 ms, do the following:
7
Enable the arrow keys to adjust
the pulse width.
8
Select 5 ms.
All narrow positive pulses shorter than 5 ms are now
displayed on the screen. (See Figure 33.)
Tip
The test tool stores all triggered screens in the
replay memory. For example, if you setup your
triggering for glitches, you can capture 100
glitches with time stamps. Use the REPLAY key to
look at all the stored glitches.

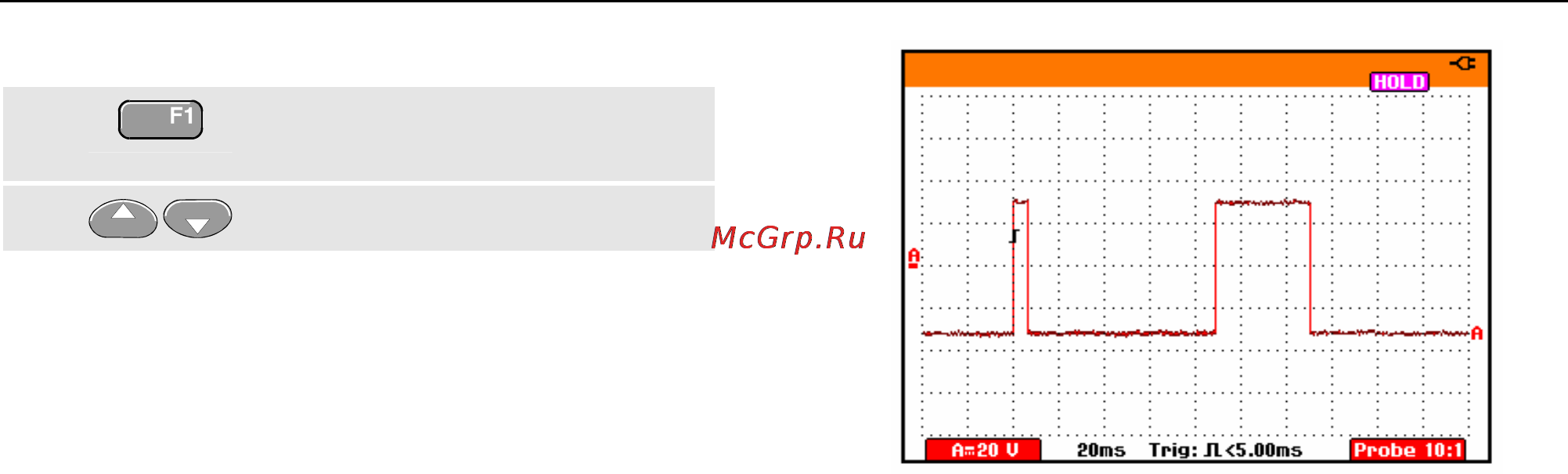

Figure 33. Triggering on Narrow Glitches
