Using The Bushealth Function

Reading the Screen

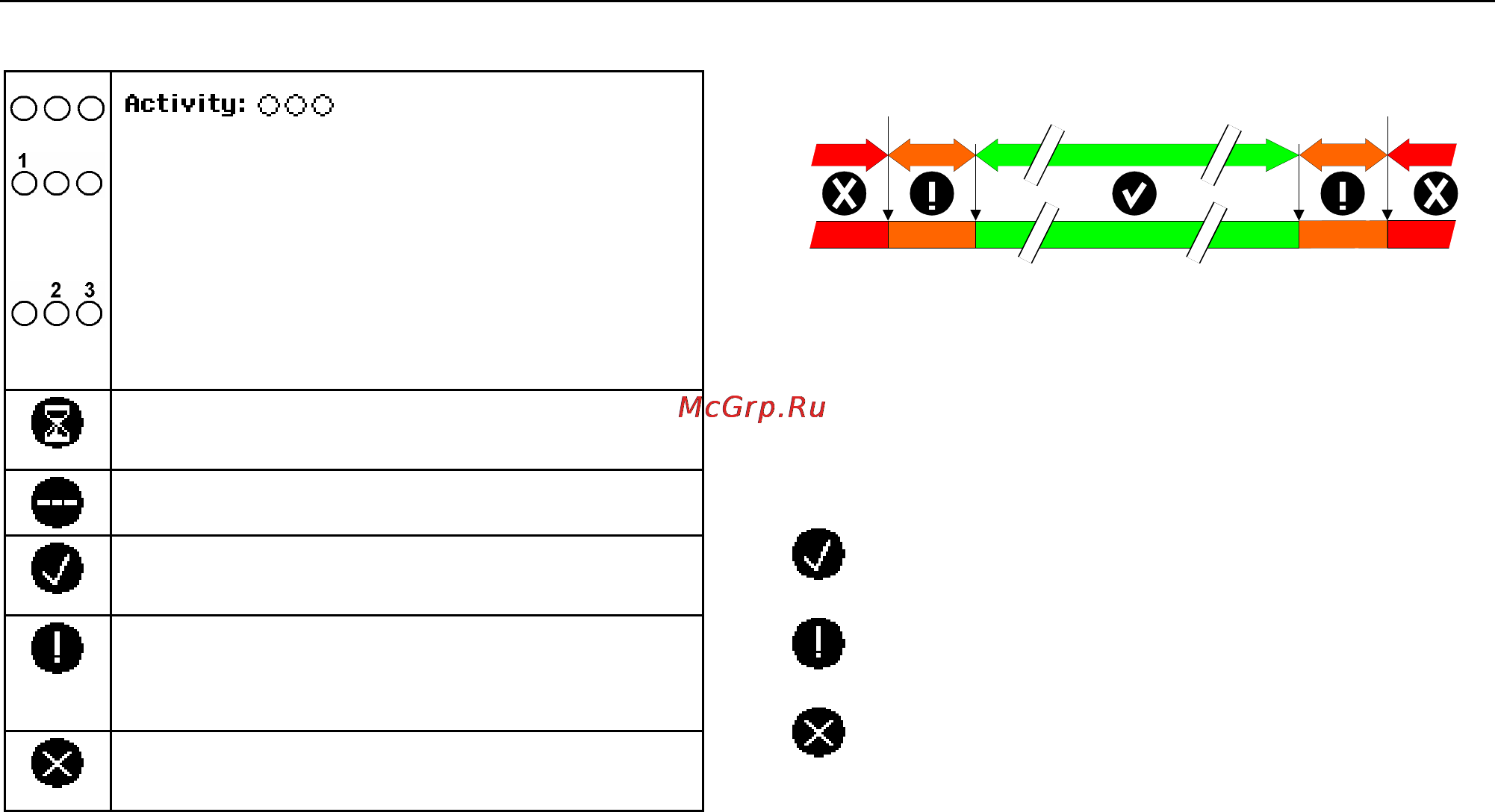

Table 1. Bus Test Screen Indicators

: bus activity indicators.

Bus activity indicator 1:

Q (filled) : voltage measured

{ (open) : no voltage measured

Bus activity indicators 2 and 3:

{ { (both open) : no activity

ÑÑ(blinking) : activity

Busy, the test tool is measuring/processing

data.

No reading available.

Test OK. Measurement results are within 80%

of allowable range, see

Figure 36.

Warning. Measurement results are between

80% and 100% of allowable range, see

Figure

Test failed. Measurement results are out of

allowable range, see

Figure 36.

Figure 36 shows the bus health indicator boundaries.

80 %10 % 10 %

GOOD

WEAK WEAK BADBAD

Figure 36. Bus Health Indicator Boundaries

Example:

the high level voltage of a bus must be between +3.0 V

(MIN) and +15.0 V (MAX). Depending on the

measurement result the displayed indicator will be:

If the result is between 4.2 and 13.8V. (10% of

12 V = 1.2 V)

If the result is between 3 V and 4.2 V, or between

13.8 V and 15 V.

If the result is < 3 V or >15 V.
