10-013816-01EN, Rev. 2, June 2020

Chapter 464

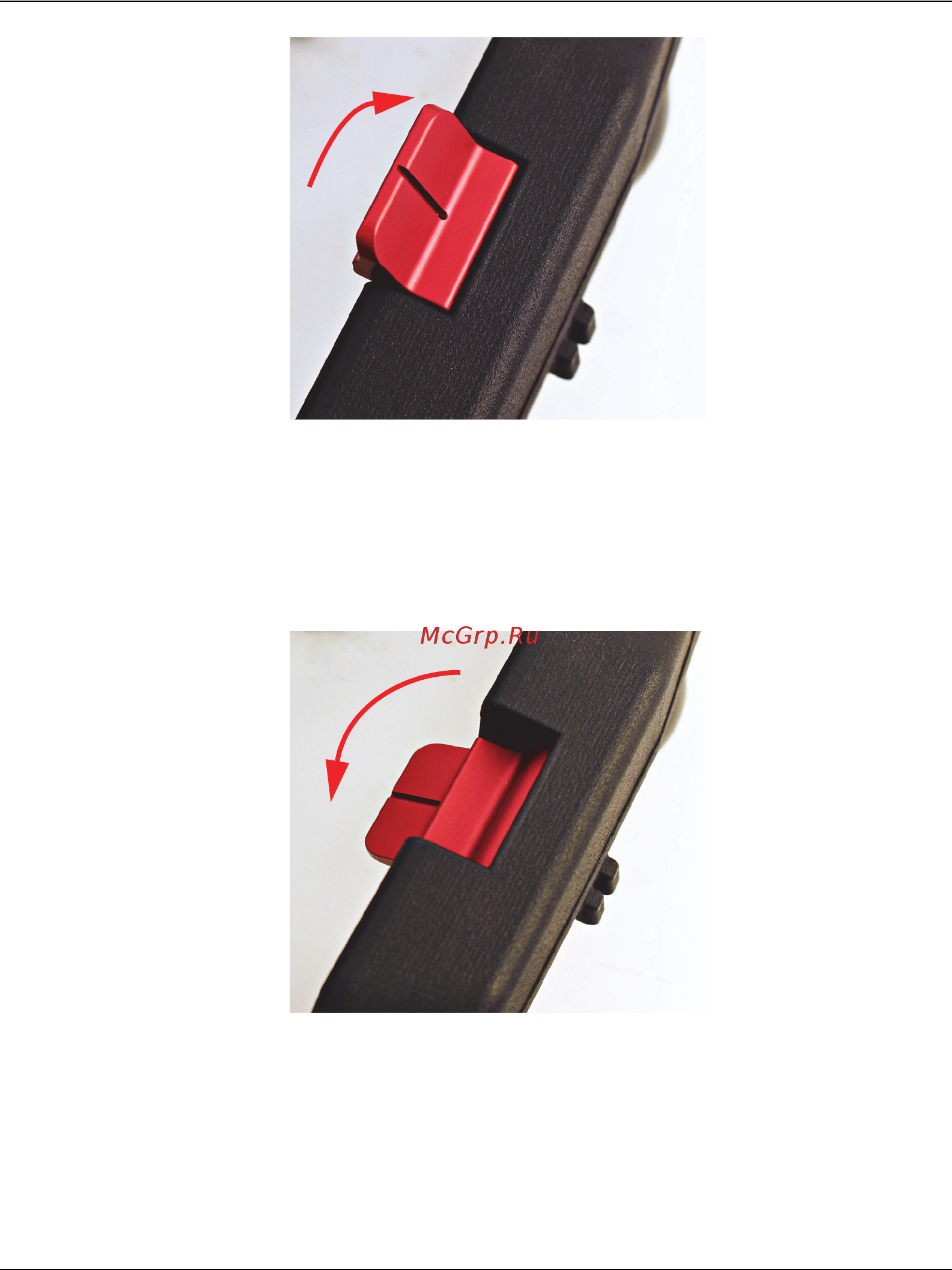

Figure 4-1 Brake lever activated

• To deactivate the brake, put the red brake lever in the lowest position (Figure 4-2

on page 64).

Figure 4-2 Brake lever deactivated
