18
ENGLISH

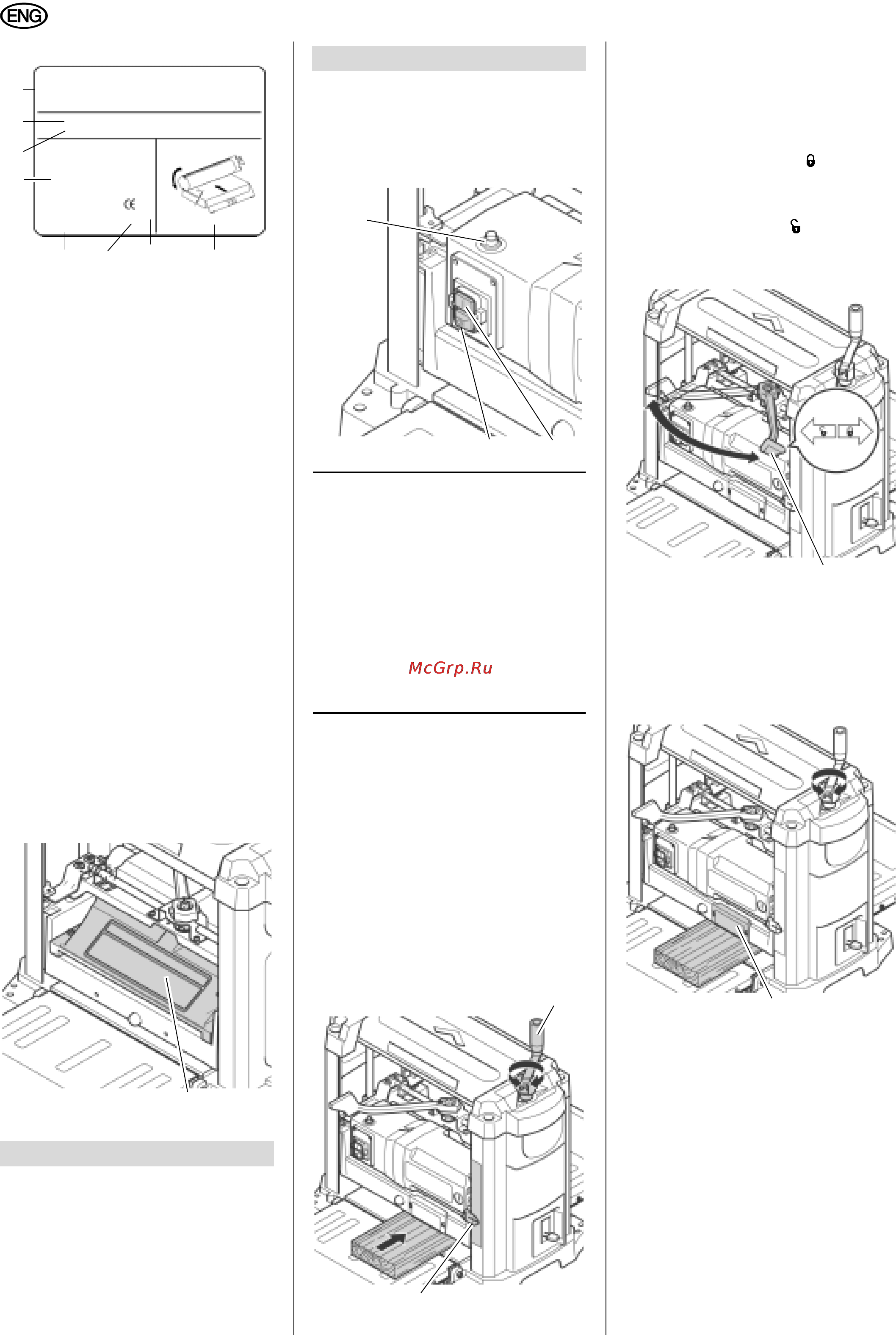

Information on the nameplate:
3.4 Safety Devices
Cutterblock cover
The cutterblock cover (31) prevents that
the rotating cutterblock can be touched
from the top.
The cutterblock cover must be in place,
until the cutterblock has come to a com-
plete stop and the power cable is
unplugged.
• Up-to-date technology, designed for
continuous duty and accurate plan
-
ing results.
• Robust construction, with handles
on housing for complete mobility.
• Infeed and outfeed table for simple
and safe handling of long work
pieces.
ON/OFF switch
• To start = press green switch button
(32).
• To stop = press red switch button
(33).
3
Note:
In case of an overload a thermal
circuit breaker will trip. The machine can
be started again after a few seconds. To
restart, first press the reset button
(34),
then the Start button (32).
An undervoltage relay trips in the event
of a voltage failure to prevent restarting
of the machine when the power is
restored. To restart, press the Start but
-
ton.
Height adjustment
With the height adjustment the planing
thickness (= work piece thickness after
planing) is set.
• Per pass a maximum of 3 mm mate-
rial can be removed.
• Work pieces of max. 152 mm thick-
ness can be planed.
• The height adjustment is made by
means of a crank
(35). Each full turn
of the crank raises or lowers the cut-
terblock head by 1/12 " (2 mm).
The set planing thickness is indicated on
the scale by the pointer
(36).
Lock lever for height adjustment
To lock the height adjustment:
• Set lock lever (37) fully to the right,
to the position marked .
To unlock the height adjustment:
• Set lock lever (37) fully to the left, to
the position marked
By means of the height adjustment
the planing thickness can be reset.
Depth of cut indicator
The indicator (38) indicates the depth of
cut, i.e. the amount of material to be
removed from the work piece.
The depth of cut can be set from 1 mm
to 3
mm.
Final thickness stop
With the thickness stop (39) standard
planing thicknesses of 1/4" (6 mm) to
1 3/4" (44 mm) can be preset.
Using this feature, work pieces are
planed to a uniform thickness without the
need for constant measuring.
23 Manufacturer
24 Serial number
25 Machine designation
26 Motor specifications (see also
"Technical specifications")
27 Date of manufacture
28 CE-mark – indicates that this
machine conforms to the EC
directive(s) stated in the Declara
-
tion of Conformity
29 Waste disposal symbol – the
machine can be disposed of
through the manufacturer
30 Dimensions of approved planer
knives
4. Special Product Features
24
25
26
27 28
30
23
29
31
5. Operating Controls
33
32
34
35
36
37
38
