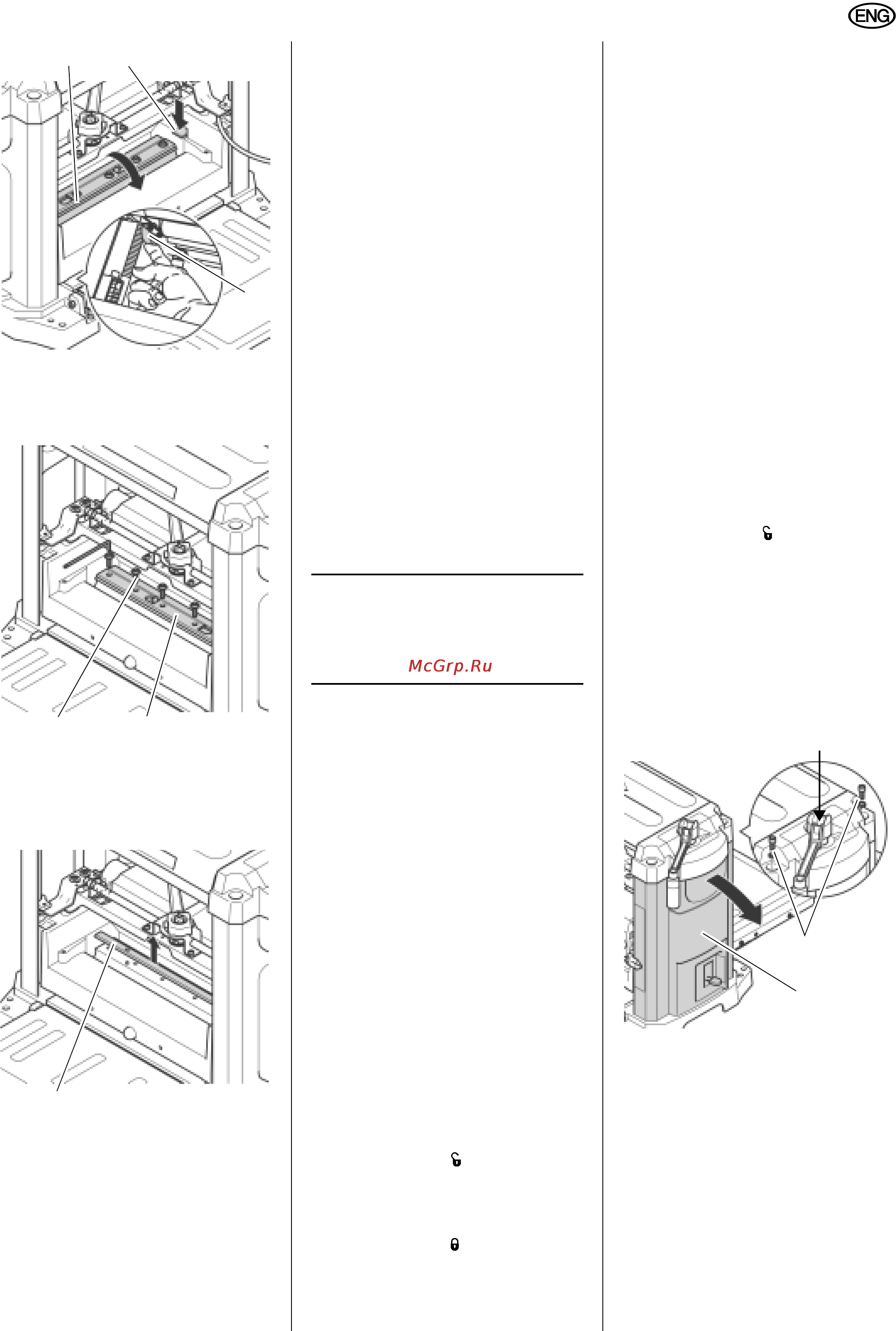

Removing the planer knives
1. Loosen all screws (63) of the planer
knife lockbar with the Allen wrench
and remove them (wear gloves!).
2. Rebove the planer knife lockbar
(62).
3. Using the magnet of the special
knife changing tool
(64), lift the
knives out of the cutterblock.
4. Remove the two spring from the
holes in the cutterblock.
5. Clean all surfaces of cutterblock and
planer knife lockbar with a suitable
solvent.
A
Danger!
Do not use any cleaning
agents (e.g. to remove resin residue)
that could corrode the light metal
components of the machine; the sta
-
bility of the light metal components
would be compromised.
Installing the planer knives
A
Danger!
• Use only suitable planer knives
conforming to EN
847-1 (see
"Available Accessories") –
unsuitable, incorrectly mounted,
blunt or damaged planer knives
can work loose or increase the
risk of kickback considerably.
• Always replace or reverse both
planer knives.
• Install planer knives using only
genuine replacement parts.
1. Fit both springs into the holes in the
cutterblock.
2. Apply a light coat of oil to the planer
knife.
3. Position the planer knife with the
special knife changing tool on the
cutterblock. The two guide pins in
the cutterblock ensure the planer
knife is in the proper position.
3
Note:
The planer knife has a cutting
edge on both front and rear side. If the
edge on the rear is sufficiently sharp, it
will suffice to turn the knife.
4. Tighten the planer knife lockbar:
To avoid distortion of the planer
knife lockbar start with the screws in
the centre, then tighten the screws
closer to the edges step by step.
A
Danger!
− Do not extend tool when tighten-
ing the bolts.
− Do not tighten bolts by striking
the wrench.
5. Replace and fasten the cutterblock
cover.
6. Make sure that no assembly tools or
loose parts are remaining in the
machine.
Test the machine when idling:
1. Fold down both infeed and outfeed
table.
2. Make sure the planer knives can
turn freely.
3. Set lock lever fully to the left, into the
position marked
.
4. Raise cutterblock head to at least
1
inch (25 mm) planing thickness.
5. Set lock lever fully to the right, to the
position marked
.
6. Plug in the power supply cable's
plug and start the motor (press
green switch button).
7. Once the machine has reached full
speed, pay attention to:
− noise
− vibrations
A
Danger!
If noise and/or vibrations appear
to be unusually high: turn OFF the
machine immediately and unplug!
8. Check machine for parts that may
have worked loose; fasten any loose
parts properly, where necessary.
8.3 Adjusting the Final Thick-
ness Stop
1. Using the final thickness stop, plane
work piece to the desired stop
measure.
2. Measure the actual stop measure
(= work piece thickness) of the
workpiece.
If readjustment of the final thickness stop
is necessary:
1. Unplug power cable.
2. Set lock lever fully to the left, into the
position marked
.
3. Loosen Phillips head screw (65)
securing the crank of the height
adjustment, but do not remove it.
4. Removing the side cover (67):
− Remove both Allen head screws
(66) (metric, 6 mm).
− Lift the machine's upper part at
the carrying handle, then care
-
fully remove the side cover (67).
5. Lower the cutterblock head, until the
final thickness stop
(69) makes con-
tact with the stop screw (68). When
doing so, the final thickness stop
must be set to the above set stop
measure.
59
60
61
63
62
64
65
66
67
