Daikin RXS25C2VMB [154/246] Hall ic check
![Daikin ARXS20CVMB [154/246] Hall ic check](/views2/1773639/page154/bg9a.png)
SiENBE04-401A Check
Service Diagnosis 145

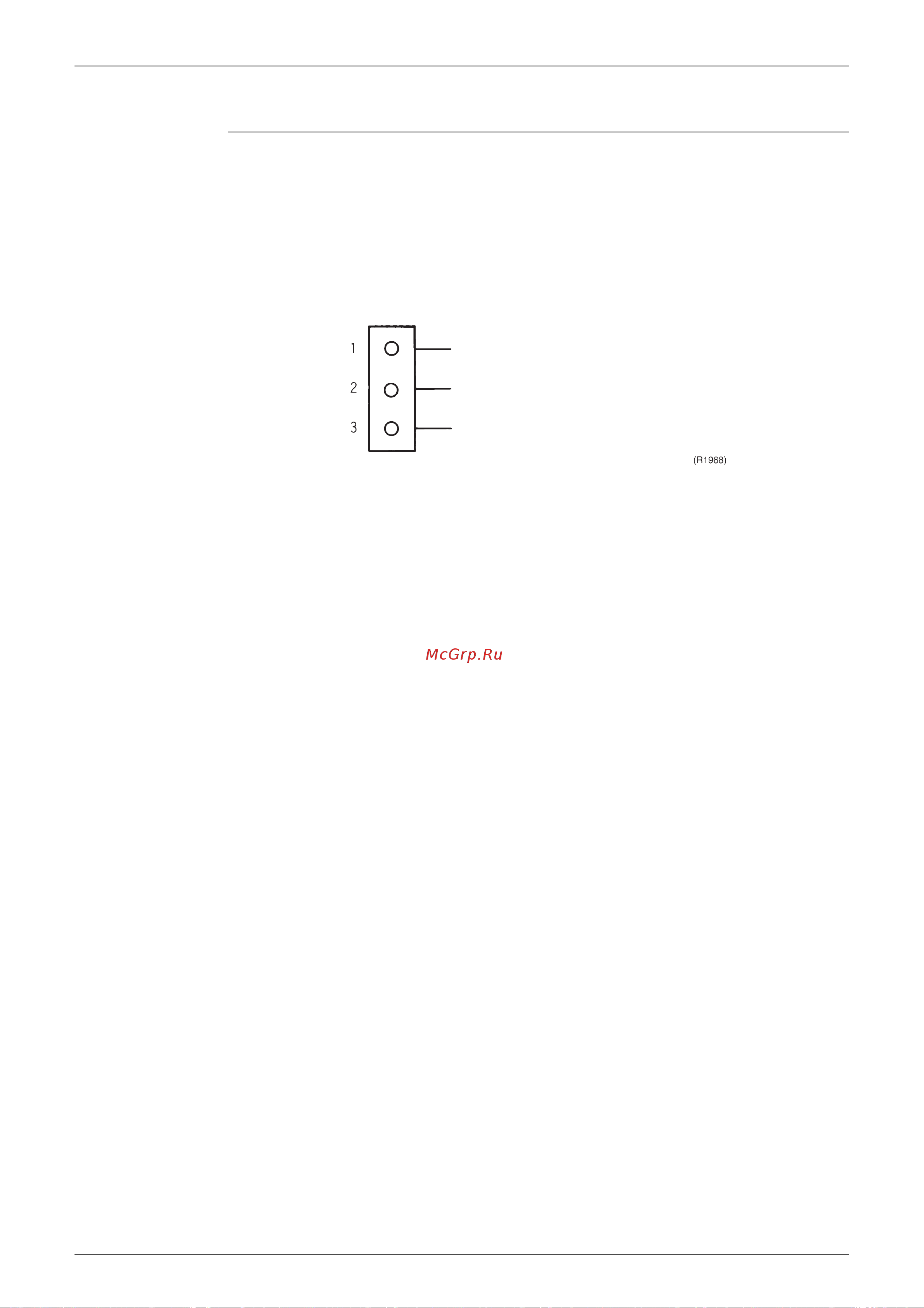

5.1.11 Hall IC Check
Check No.16 1. Check the connector connection.
2. With the power ON, operation OFF, and the connector connected, check the following.
∗Output voltage of about 5 V between pins 1 and 3.
∗Generation of 3 pulses between pins 2 and 3 when the fan motor is operating.
Failure of (1) Æ faulty PCB Æ Replace the PCB.
Failure of (2) Æ faulty Hall IC Æ Replace the fan motor.
Both (1) and (2) result Æ Replace the PCB.
Gray (power supply)
Purple (signals)
Blue (grounding)
