SiENBE04-401A Instruction
System Configuration 83

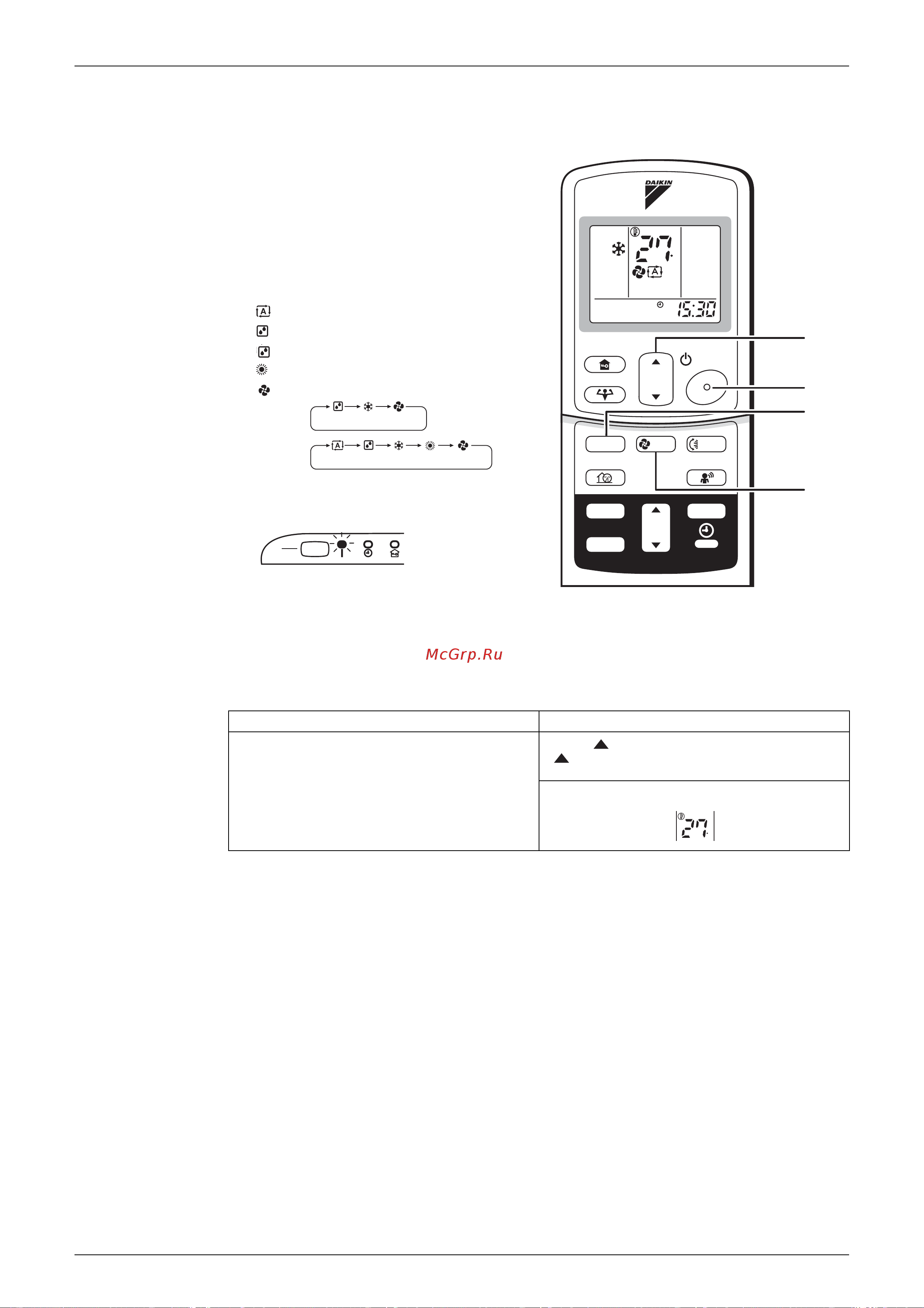

2.4 Auto Dry Cool Heat Fan Operation
The air conditioner operates with the operation mode of your choice. From
the next time on, the air conditioner will operate with the same operation
mode.
To start operation
1. Press “MODE selector button” and select
a operation mode.
• • Each pressing of the button advances the
mode setting in sequence.
: AUTO
: DRY
: COOL
: HEAT
: FAN
<FTKS>
<FTXS>
2. Press “ON/OFF button” .
• The OPERATION lamp lights up.
To stop operation
3. Press “ON/OFF button” again.
• Then OPERATION lamp goes off.
To change the temperature setting
4. Press “TEMPERATURE adjustment
button”.
C
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FA N
SWING
SILENT
SENSOR
ON
CANCEL
OFF
2, 3
1
4
5
ON
OFF
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable. Press “ ” to raise the temperature and press
“”
to lower the temperature.
Set to the temperature you like
C
