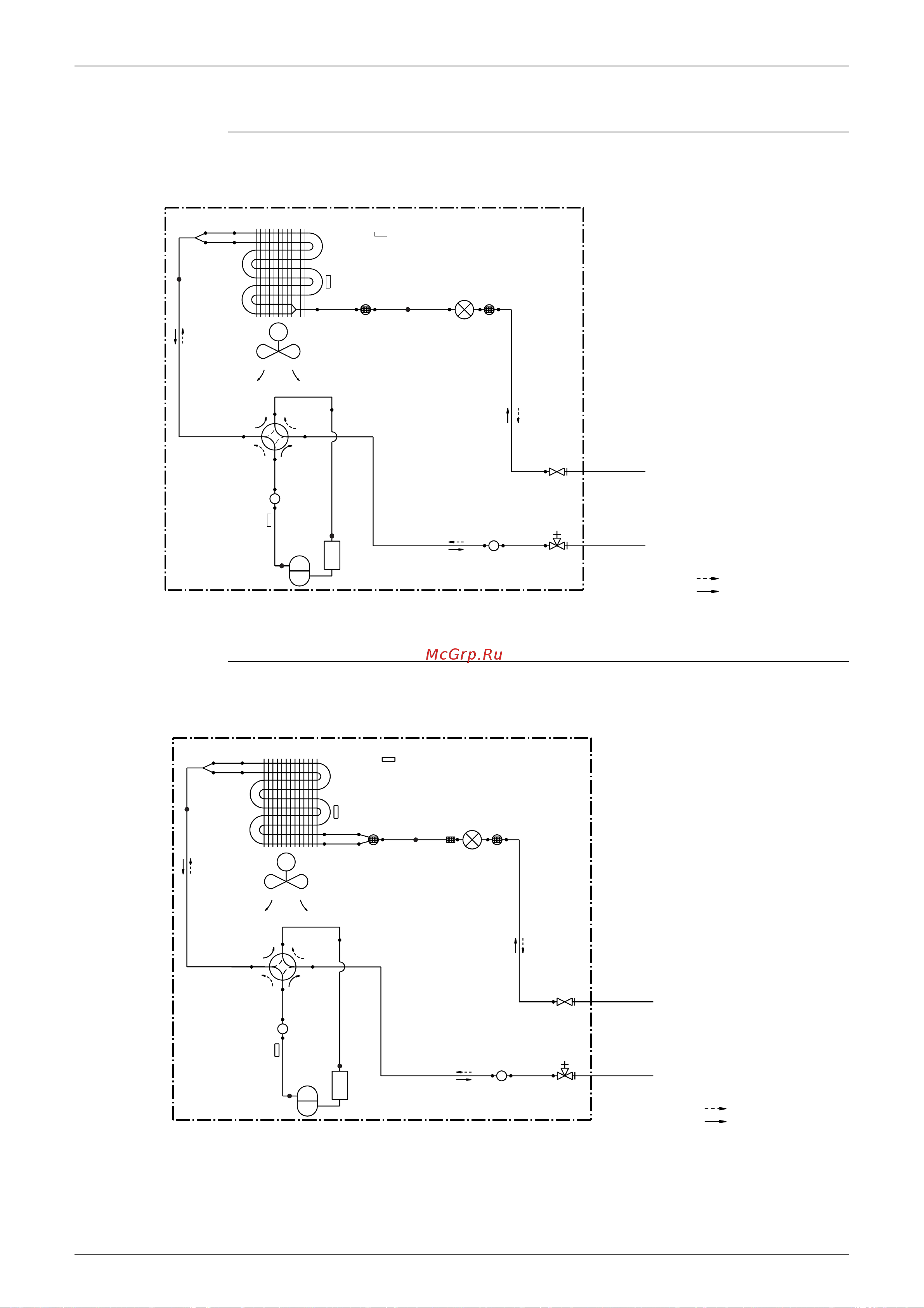

SiENBE04-401A Piping Diagrams
Appendix 225
1.2.2 Heat Pump
RXS20/25CVMB(9), ARXS20/25CVMB, RXS20/25C2VMB
RXS35CVMB(9), ARXS35CVMB, RXS35C2VMB
M
9.5CuT
7.0CuT
7.0CuT
OUTDOOR UNIT
HEAT EXCHANGER
7.0CuT
HEAT EXCHANGER
THERMISTOR
MUFFLER
WITH
FILTER
OUTDOOR TEMPERATURE
THERMISTOR
6.4CuT 6.4CuT
MOTOR OPERATED
VALVE
MUFFLER
WITH
FILTER
9.5CuT
DISCHARGE PIPE
THERMISTOR
MUFFLER
PROPELLER FAN
7.9CuT
FOUR WAY
VALVE
ON : HEATING
9.5CuT
9.5CuT
7.9CuT
COMPRESSOR
ACCUMULATOR
9.5CuT
MUFFLER
9.5CuT
GAS STOP
VALVE
FIELD PIPING
FIELD PIPING
(
6.4CuT
)
(
9.5CuT
)
LIQUID STOP
VALVE
6.4CuT
REFRIGERANT FLOW
HEATING
COOLING
3D043688C
9.5CuT
9.5CuT
7.0CuT
7.0CuT
THERMISTOR
DISCHARGE PIPE
OUTDOOR UNIT
MUFFLER
PROPELLER FAN
HEAT EXCHANGER
7.9CuT7.9CuT
M
COMPRESSOR
VALVE
FOUR WAY
ON:HEATING
9.5CuT
4.8CuT
4.8CuT
HEAT EXCHANER
THERMISTOR
9.5CuT
ACCUMULATOR
MUFFLER
FILTER
OUTDOOR TEMPARATURE
WITH
THERMISTOR
6.4CuT
9.5CuT
6.4CuT
FILTER
VALVE
MOTOR OPERATED
MUFFLER
FILTER
MUFFLER
WITH
9.5CuT
6.4CuT
VALVE
LIQUID STOP
VALVE
GAS STOP
FIELD PIPING
FIELD PIPING
(
6.4CuT
)
(
9.5CuT
)
REFRIGERANT FLOW
COOLING
HEATING
3D043689D
