Daikin RXS25C2VMB [210/246] Removal of propeller fan and fan motor
![Daikin RXS25CVMB [210/246] Removal of propeller fan and fan motor](/views2/1773639/page210/bgd2.png)
SiENBE04-401A Outdoor Unit / RK(X)H-C, ARK(X)H-C, R(Y)N-C
Removal Procedure 201

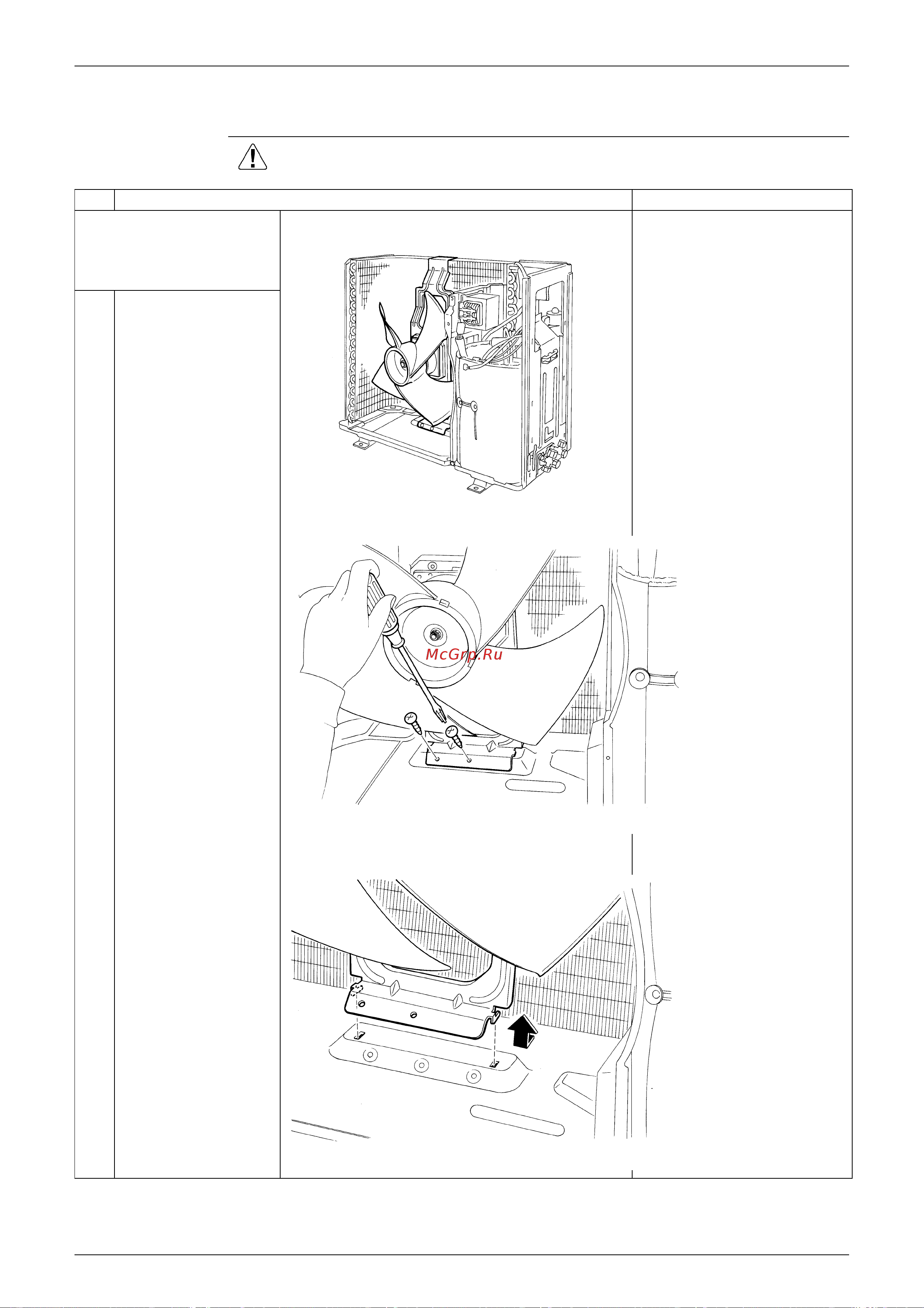

3.4 Removal of Propeller Fan and Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
Remove the external
panels and the drip proof
plate protecting the
electrical parts.
Be sure to restore the drip
proof plate and to avoid
losing or damaging it.
1
Remove the 2 screws
of the fan motor
assembly.
2
Release the 2 hooks of
the fan motor stand.
(R4047)
(R4048)
(R4049)
