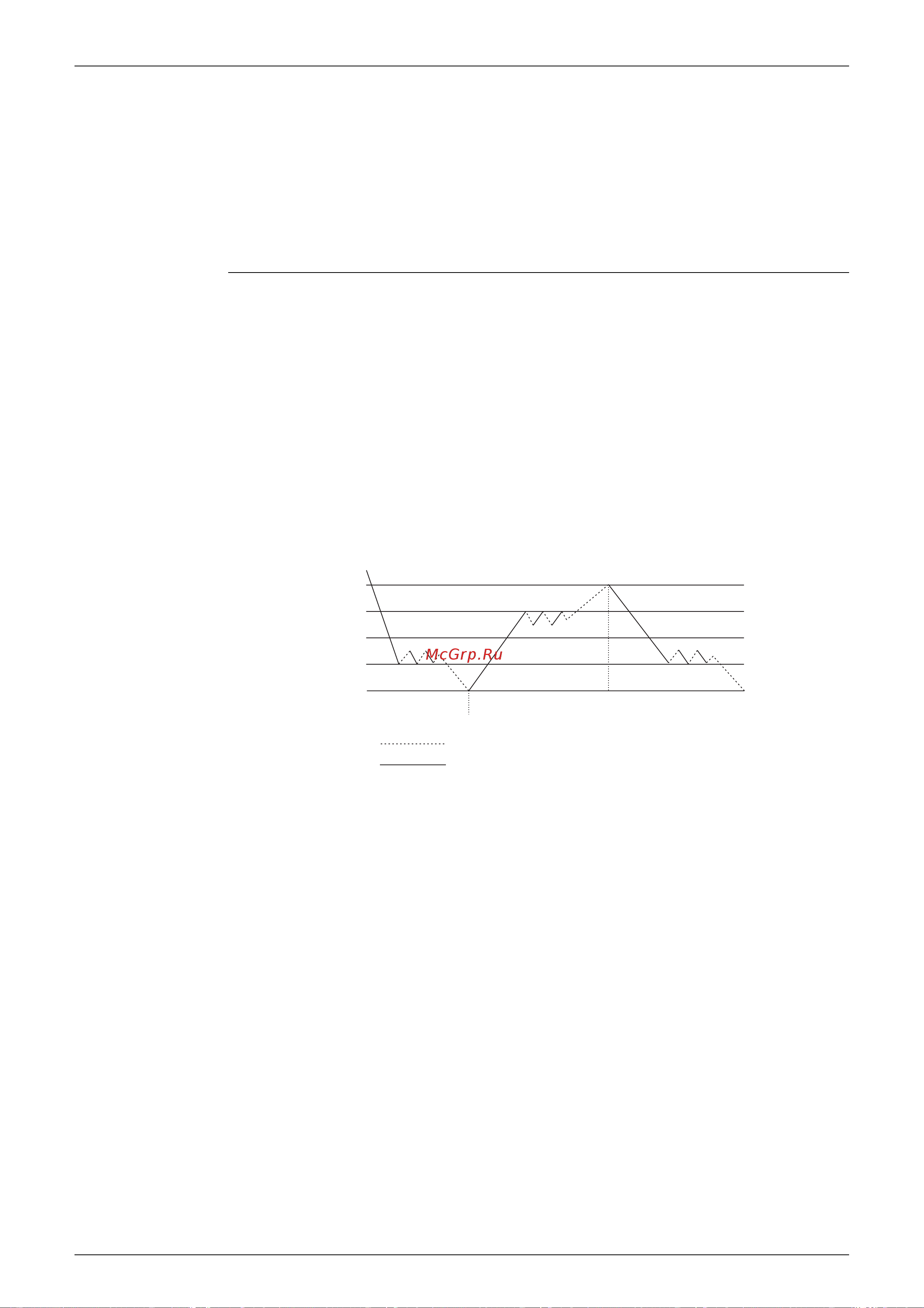

SiENBE04-401A Main Functions
Function and Control 49
1.5 Automatic Operation
Automatic Cooling / Heating Function (Heat Pump Only)
When the AUTO mode is selected with the remote control, the microcomputer automatically
determines the operation mode from cooling and heating according to the room temperature
and setting temperature at the time of the operation startup, and automatically operates in that
mode.
The unit automatically switches the operation mode to cooling or heating to maintain the room
temperature at the main unit setting temperature.
Detailed
Explanation of
the Function
1. Remote control setting temperature is set as automatic cooling / heating setting temperature
(18 to 30°C).
2. Main unit setting temperature equals remote control setting temperature plus correction
value (correction value / cooling: 0 deg, heating: 2 deg.).
3. Operation ON / OFF point and mode switching point are as follows.
1 Heating → Cooling switching point:
Room temperature ≥ Main unit setting temperature +2.5 deg.
2 Cooling → Heating switching point:
Room temperature < Main unit setting temperature –2.5 deg.
3 Thermostat ON / OFF point is the same as the ON / OFF point of cooling or heating
operation.
4. During initial operation
Room temperature ≥ Remote control setting temperature: Cooling operation
Room temperature < Remote control setting temperature: Heating operation
(R1360)
H
eating
/
c
ooling switching point
(
Heating thermostat
O
FF point)
M
ain unit setting
t
emperature
(
Cooling thermostat
OFF point)
C
ooling
/
h
eating switching point
With compressor capacity supplied
With no compressor capacity supplied
Cooling
operation
Heating
operation
Cooling
operation
2.5 deg.
or higher
(1.5 deg.)
or higher
Less than
(1.5 deg.)
2.5 deg. or
higher
(R1360)
