Daikin RXS25C2VMB [207/246] Control pcb outdoor unit
![Daikin RKS20CVMB [207/246] Control pcb outdoor unit](/views2/1773639/page207/bgcf.png)
Outdoor Unit / RK(X)H-C, ARK(X)H-C, R(Y)N-C SiENBE04-401A

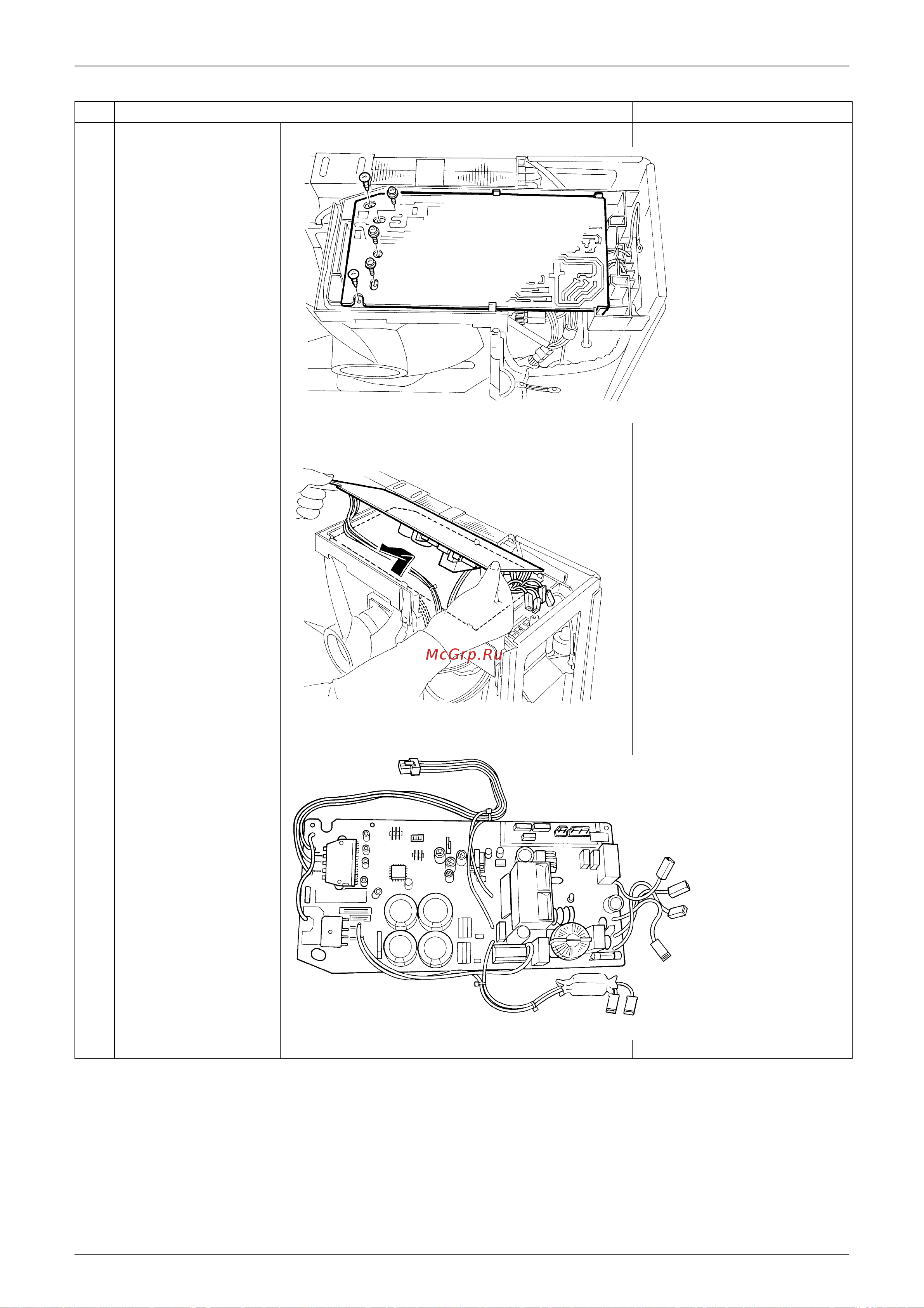

198 Removal Procedure
10
Remove the 5 screws
fixing the PCB.
11
Undo the 4 hooks and
the PCB can be
disengaged.
The PCB has 4 hooks.
12
Control PCB
(outdoor unit)
Step Procedure Points
(R4039)
(R4040)
(R4041)
