SiENBE04-401A Outdoor Unit / RK(X)H-C, ARK(X)H-C, R(Y)N-C
Removal Procedure 199

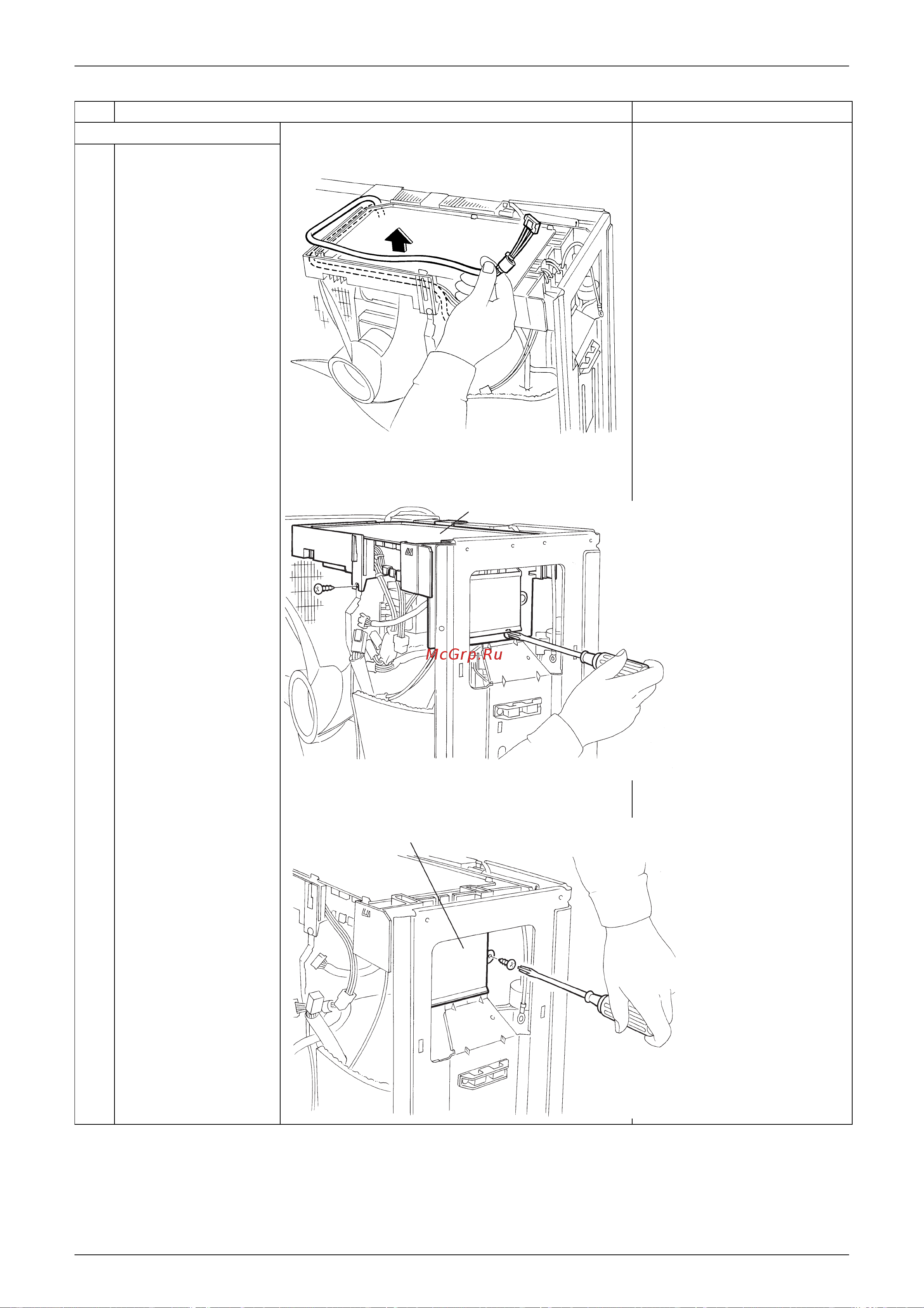

3. Remove the electrical box.
1
Release the lead wire
of the fan motor from
the ditch.
2
Remove the 2 screws
fixing the electrical box.
3
Remove the screw of
the terminal board
cover.
Step Procedure Points
(R4042)
Electrical box
(R4043)
Terminal board cover
