SiENBE04-401A Instruction
System Configuration 89

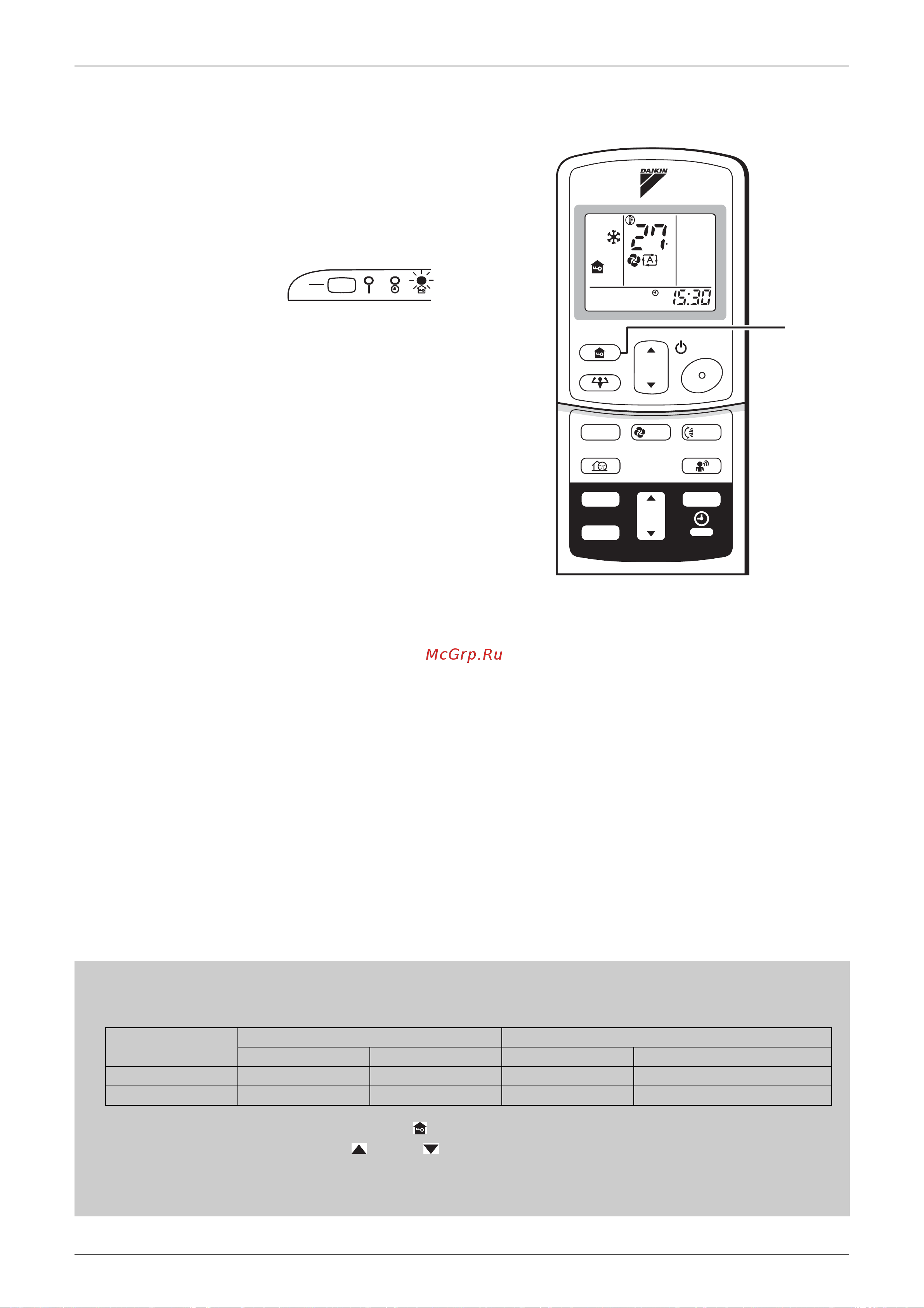

2.8 HOME LEAVE
Operation
Before using HOME LEAVE operation
HOME LEAVE operation is a function which allows you to record your
preferred temperature and air flow rate settings.
To start HOME LEAVE operation
1. Press “HOME LEAVE button”.
• The HOME LEAVE lamp lights up.
To cancel HOME LEAVE operation
2. Press “HOME LEAVE button” again.
• The HOME LEAVE lamp goes off.
To set the temperature and air flow rate for HOME LEAVE operation
When using HOME LEAVE operation for the first time, please set the temperature and air flow rate for HOME LEAVE
operation. Record your preferred temperature and air flow rate.
1. Press “HOME LEAVE button”. Make sure “ ” is displayed in the remote control display.
2. Adjust the set temperature with “ ” or “ ” as you like.
3. Adjust the air flow rate with “FAN” setting button as you like.
Home leave operation will run with these settings the next time you use the unit. To change the recorded information,
repeat steps 1 – 3.
C
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FA N
SWING
SILENT
SENSOR
ON
CANCEL
OFF
1, 2
ON
OFF
Initial setting Selectable range
temperature Air flow rate temperature Air flow rate
Cooling 25° AUTO 18-32°C 5 step, AUTO and SILENT
Heating 25° AUTO 10-30°C 5 step, AUTO and SILENT
