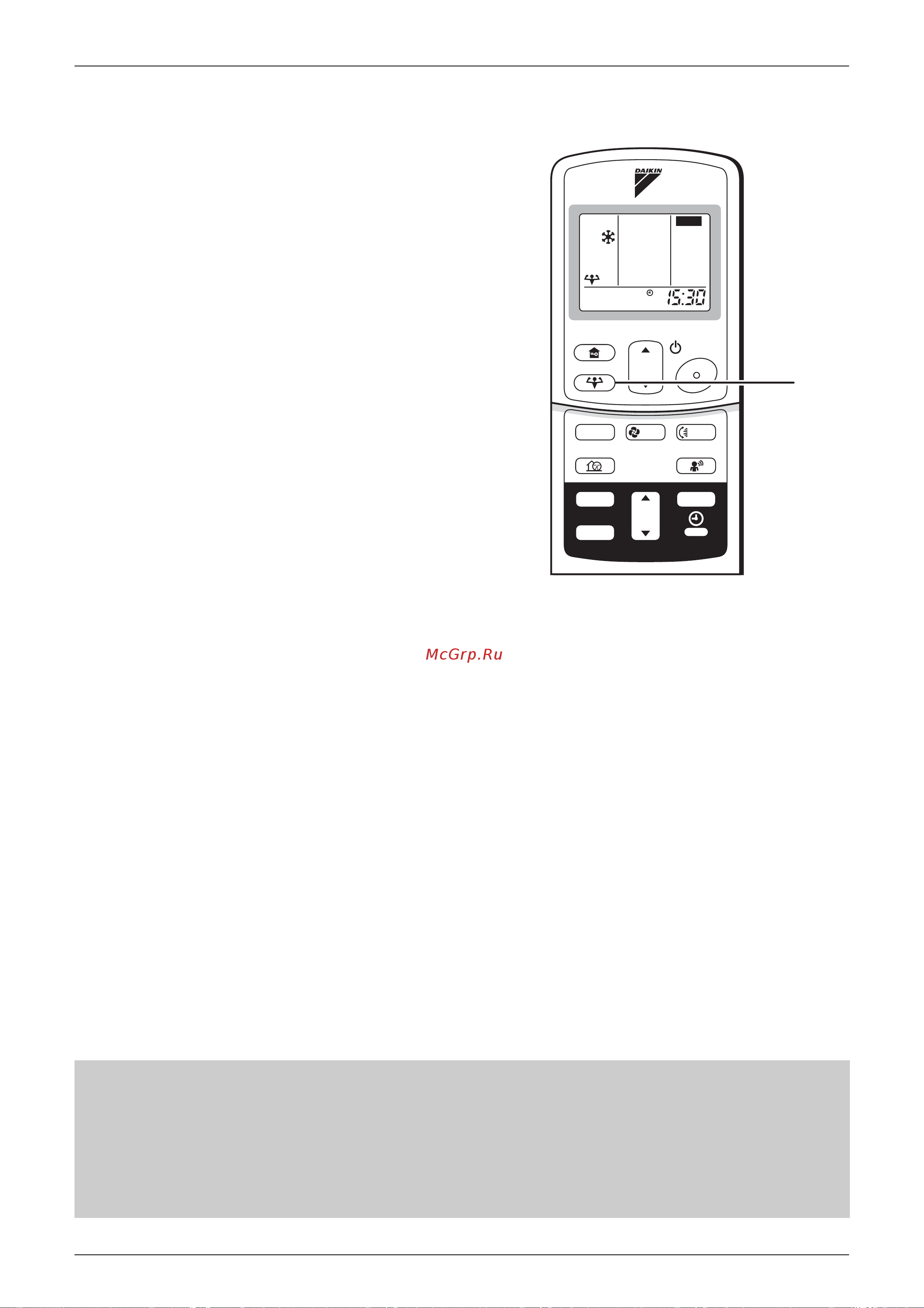

SiENBE04-401A Instruction
System Configuration 87
.+
2.6 POWERFUL Operation
NOTE
POWERFUL operation quickly maximizes the cooling (heating) effect in
any operation mode. You can get the maximum capacity
To start POWERFUL operation
1. Press “POWERFUL button”.
• POWERFUL operation ends in
20 minutes. Then the system
automatically operates again with the
settings which were used before
POWERFUL operation.
• When using POWERFUL operation,
there are some functions which are not
available.
To cancel POWERFUL operation
2. Press “POWERFUL button” again.
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FA N
SWING
SILENT
SENSOR
ON
CANCEL
OFF
ON
1, 2
Notes on POWERFUL operation
• In COOL and HEAT mode
To maximize the cooling (heating) effect, the capacity of outdoor unit must be increased and the air flow rate be fixed to
the maximum setting.The temperature and air flow settings are not variable.
• In DRY mode
The temperature setting is lowered by 2.5°C and the air flow rate is slightly increased.
•
In FAN mode
The air flow rate is fixed to the maximum setting.
