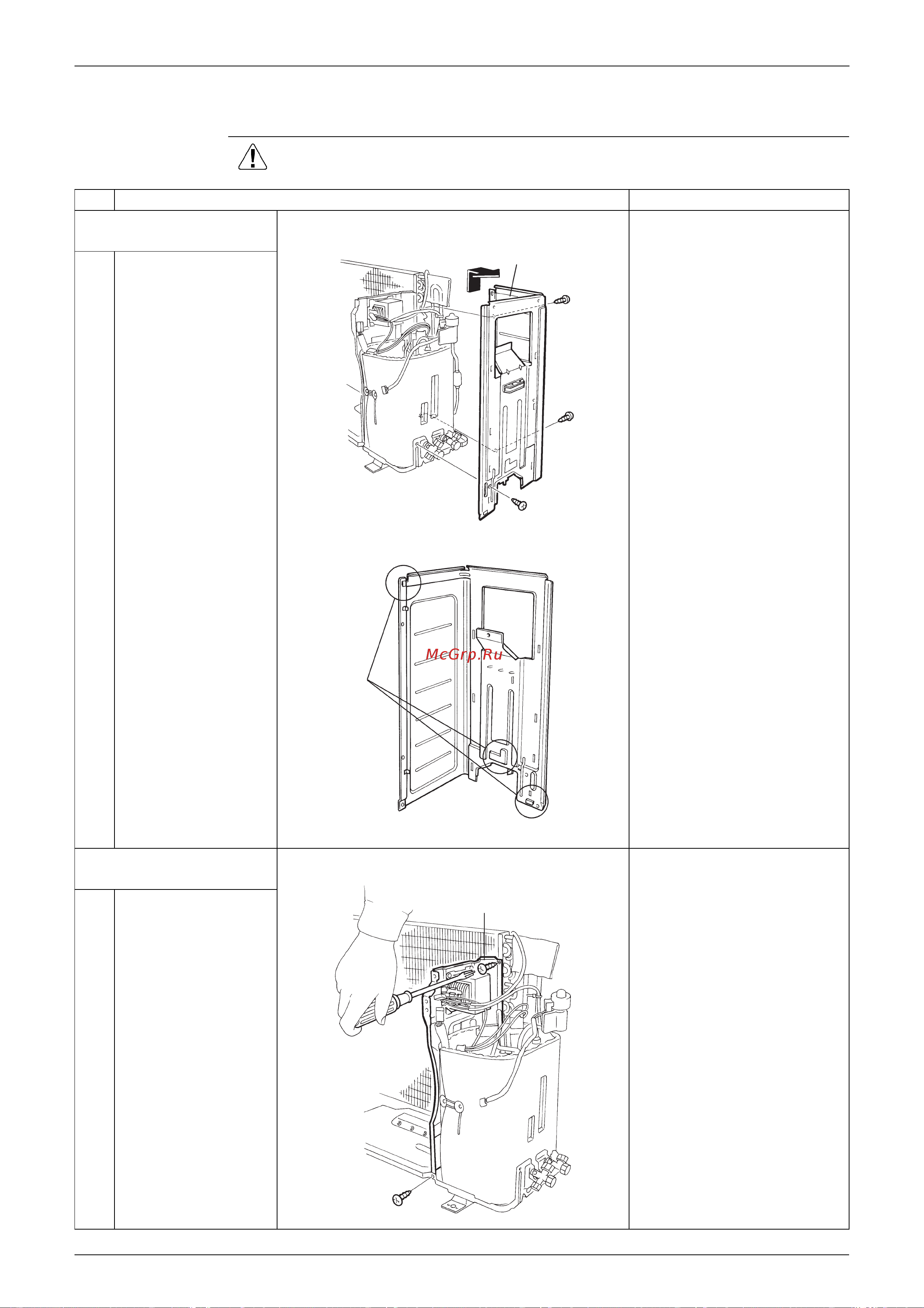

Outdoor Unit / RK(X)H-C, ARK(X)H-C, R(Y)N-C SiENBE04-401A
204 Removal Procedure
3.5 Removal of Partition Plate and Reactor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Remove the right side
panel.
1
2
Remove the 3 screws
for removing the right
side panel.
Lift the right side panel
to disengage the
hooks.
Insert the 3 hooks for the
restoration.
2. Remove the partition
plate.
1
Remove the 2 screws
fixing the partition
plate.
Right side panel
(R4055)
Hooks
(R4056)
Partition plate
(R4057)
