SiENBE04-401A Control Specification
Function and Control 65
3.10 Defrost Control
Outline Heat Pump Only
Defrosting is carried out by the cooling cycle (reverse cycle). The defrosting time or outdoor
heat exchanger temperature must be more than its fixed value when finishing.
Detail Conditions for Starting Defrost
The starting conditions must be made with the outdoor air temperature and heat exchanger
temperature. Under the conditions that the system is in heating operation, 6 minutes after the
compressor is started and more than 44 minutes of accumulated time pass since the start of the
operation or ending the defrosting.
Conditions for Canceling Defrost
The judgment must be made with heat exchanger temperature. (4°C~22°C)

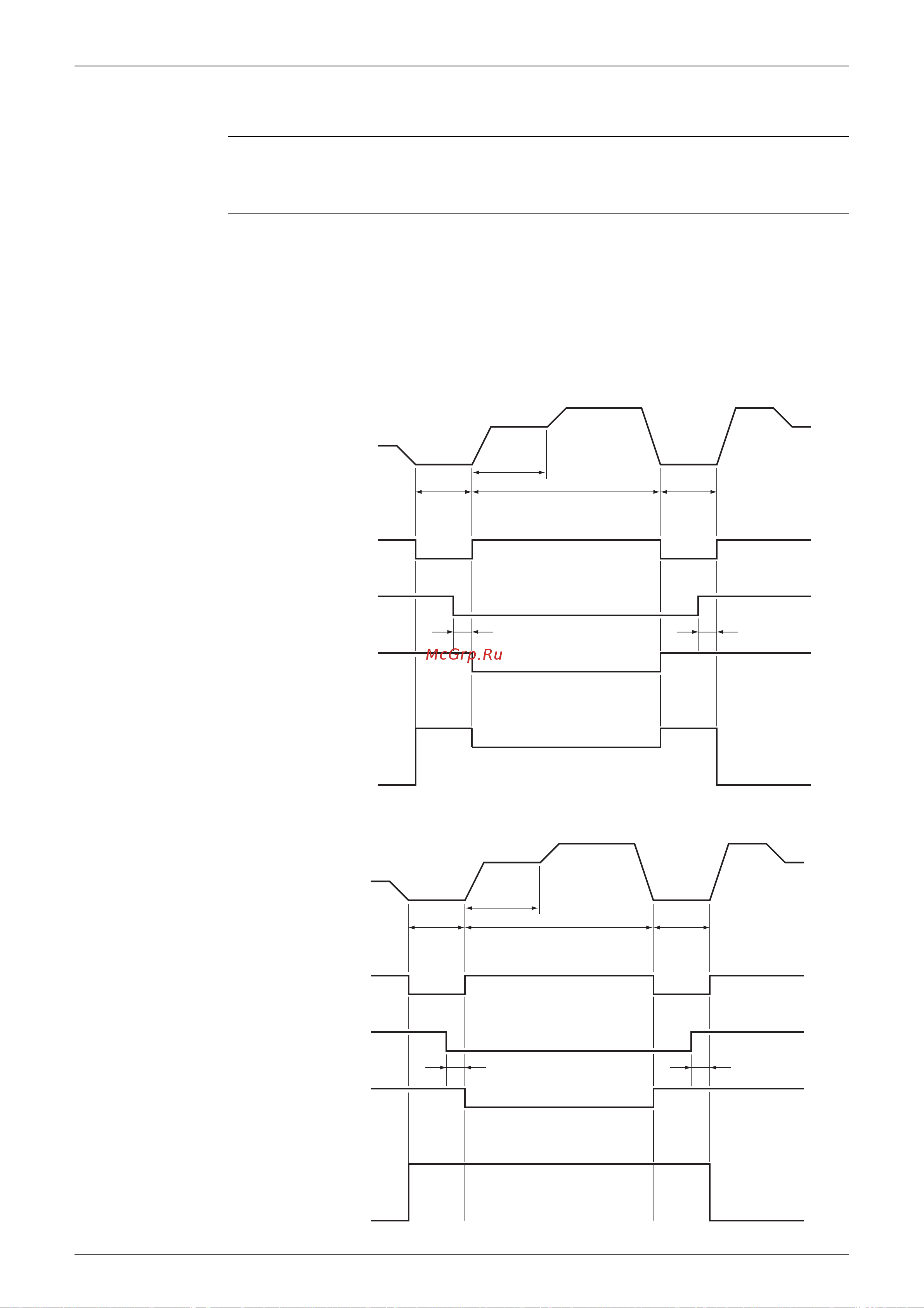

(A)RK(X)S models
(A)RK(X)H, R(Y)N models
ON
OFF
ON
OFF
ON
OFF
0Hz
5sec.
350pps 450pps450pps
PI contro
5sec.
50sec.50sec. 600sec.
60sec.
(R4014)
Electronic expansion
valve opening
Frequency
Compressor
Four way valve
Fan
Initial opening
ON
OFF
ON
OFF
ON
OFF
0Hz
5sec.
450pps 450pps450pps
PI control
5sec.
45sec.55sec. 480sec.
60sec.
(R4015)
Electronic expansion
valve opening
Frequency
Compressor
Four way valve
Fan
Initial opening
PI control
